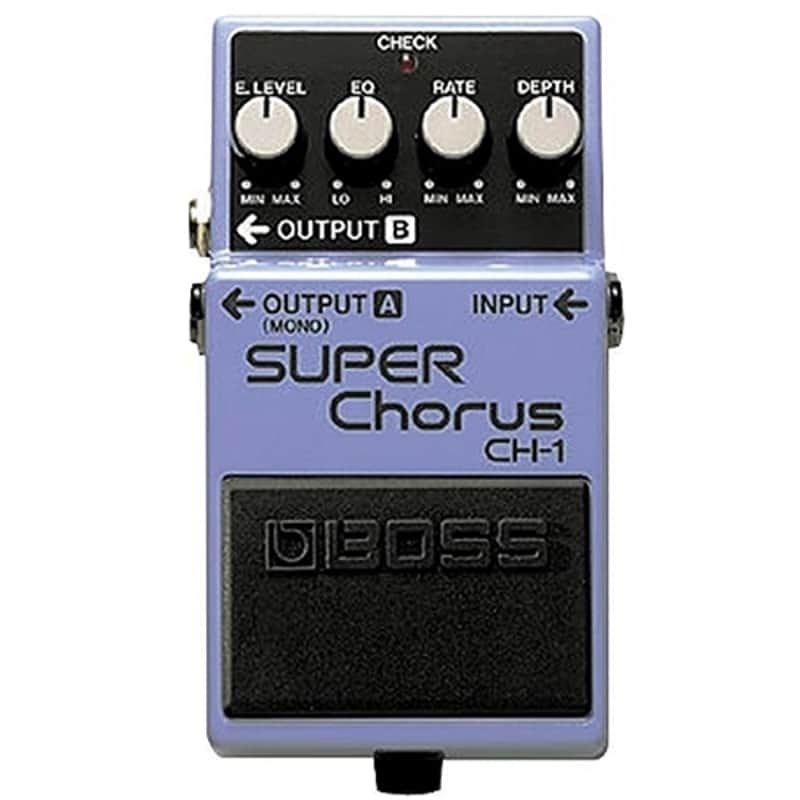

• Classic BOSS chorus pedal with clean, brilliant sound for guitar and keyboards
• Effect Level, EQ, Rate and Depth knobs allow for precise shaping of sound
• Features Mono input and Stereo outputs for connection to dual amps
• BOSS five-year warranty

Nominal Input Level -20 dBu Input Impedance 1 M ohm Nominal Output Level -20 dBu Output Impedance 1 k ohm Recommended Load Impedance 10 k ohms or greater Bypass Buffered bypass Controls DEPTH knob
RATE knob
EQ knob
E.LEVEL knob
Pedal switch Indicator CHECK indicator (Used for indication of check battery) Connectors INPUT jack: 1/4-inch phone type
OUTPUT A/B jack: 1/4-inch phone type
DC IN jack Power Supply Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately) Current Draw 55 mA Expected battery life under continuous use Alkaline: Approx. 6 hours
*These figures will vary depending on the actual conditions of use. Accessories Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61) Options (sold separately) AC adaptor: PSA series Size and Weight Width 73 mm
2-7/8 inches Depth 129 mm
5-1/8 inches Height 59 mm
2-3/8 inches Weight (including battery) 420 g
15 oz * 0 dBu = 0.775 Vrms * The specifications are subject to change without notice.
