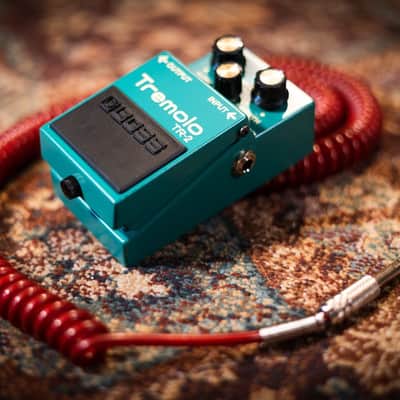

The BOSS TR-2 Tremolo is designed to provide guitarists with classic tremolo effects in an easy-to-use compact pedal. Dedicated "Wave," "Rate," and "Depth" knobs provide a multitude of effect possibilities.

FEATURES

• Provides guitarists with high-quality vintage tremolo effects in an easy-to-use compact pedal
• Dedicated "Wave," "Rate" and "Depth" knobs allow for precise effect tailoring
• "Rate" control allows for higher speed adjustment than classic PN-2
• "Wave" control alters LFO waveform from triangle to square
• "Depth" control determines the strength of the effect
• BOSS five-year warranty

Nominal Input Level

• -20 dBu

Input Impedance

• 1 M ohm

Nominal Output Level

• -20 dBu

Output Impedance

• 1 k ohm

Recommended Load Impedance

• 10 k ohms or greater

Bypass

• Buffered bypass

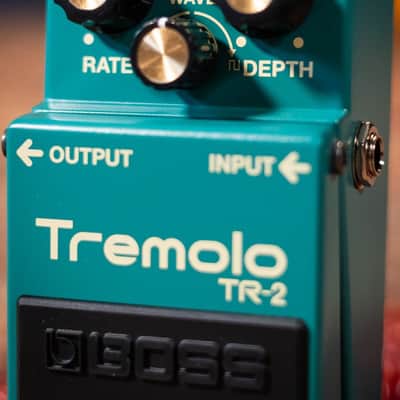

Controls

• DEPTH knob
• RATE knob
• WAVE knob
• Pedal switch

Indicator

• CHECK indicator (Used for indication of check battery)

Connectors

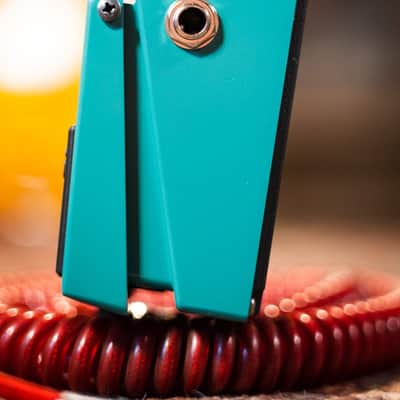

• INPUT jack: 1/4-inch phone type
• OUTPUT jack: 1/4-inch phone type

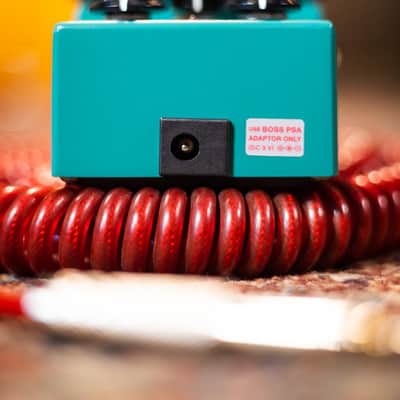

• DC IN jack

Power Supply

• Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
• AC adaptor (PSA series: sold separately)

Current Draw

• 25 mA

Expected battery life under continuous use

• Carbon: Approx. 12 hours
• Alkaline: Approx. 28 hours

*These figures will vary depending on the actual conditions of use.

Accessories

• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
• Carbon-zinc battery (9 V, 6F22)

Options (sold separately)

• AC adaptor: PSA series

SIZE AND WEIGHT

• Width: 73 mm, 2-7/8 inches
• Depth: 129 mm, 5-1/8 inches
• Height: 59 mm,  2-3/8 inches
• Weight (including battery) : 385 g, 14 oz
