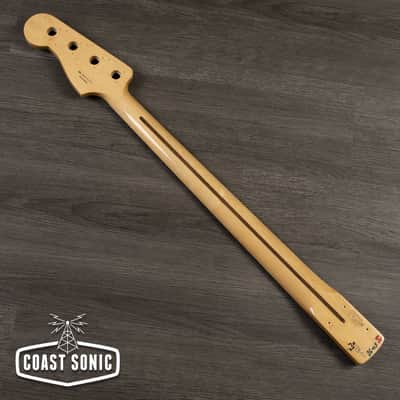

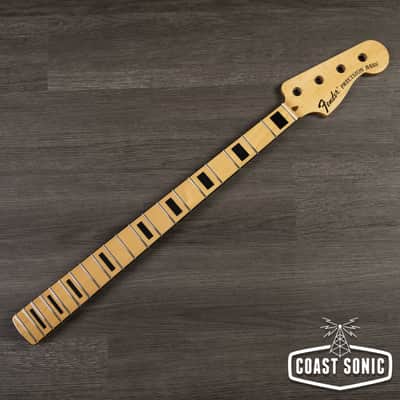

Fender Classic Series 70's Precision Bass Neck Maple w/ Block Inlays

Maker: Fender

Model: Classic Series 70's Precision Bass Neck

Condition: New

Description:

70S-STYLE PRECISION BASS® LOOKS

Crafted at our Ensenada, Mexico, manufacturing facility, this genuine vintage-style Fender Precision Bass® guitar maple neck features a comfortable '70s "C" profile and 7.25"-radius maple fingerboard with 20 vintage-style frets.

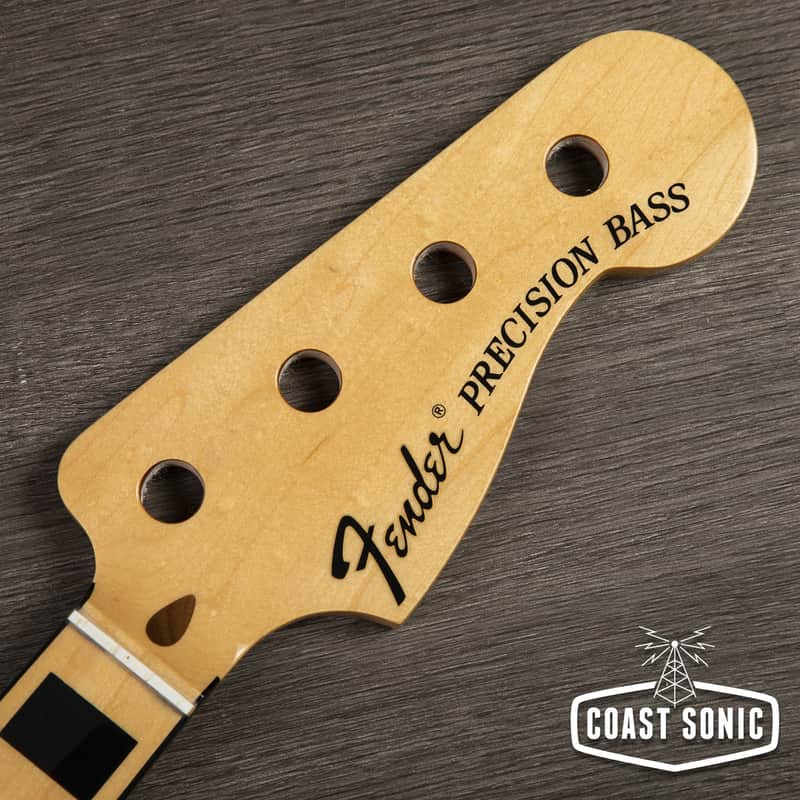

The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a gloss urethane finish on the back offers smooth playability. For true Fender authenticity, it's also serialized and stamped, with genuine '70s logo headstock decal.

This replacement neck is for a Fender or Squier® by Fender bass.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized service center locations near you in the “Support” section of fender.com.

FEATURES

• Maple neck with walnut "skunk" stripe
• Maple fingerboard with 7.25" radius
• 20 vintage-style frets
• Pre-slotted synthetic bone nut
• Vintage-style truss rod adjustment

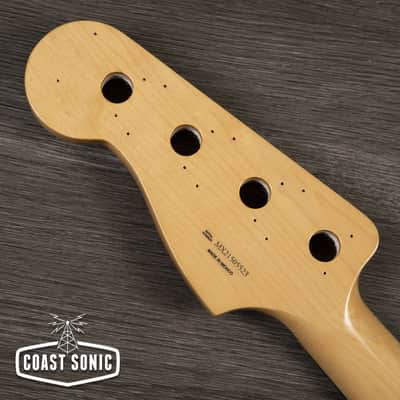

• Four tuning machine holes designed to fit vintage-style four-screw-mount tuning machines

GENERAL

• Style Vintage-Style
• Neck Shape Vintage "C"
• Tuner Mounting Config Vintage-style 4-screw
• Other Features Each nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)
• Where Used Classic Series

MATERIALS

• Fingerboard Material Maple
• Neck Material Maple
• Nut Material Synthetic Bone

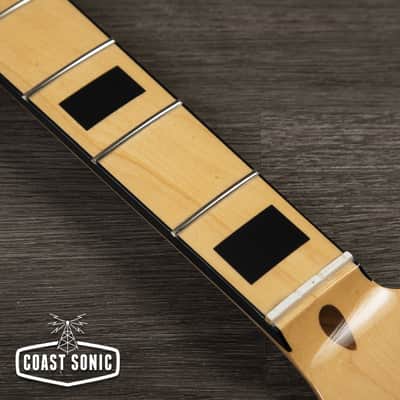

• Position Inlays Black Block
• Neck Finish Gloss Urethane
• Truss Rod Nut Vintage-Style Slotted
• Truss Rod Vintage-Style Butt Adjust

MEASUREMENTS

• Fingerboard Radius 7.25" (184.1 mm)
• Scale Length 34" (86.36 cm)
• Nut Width 1.625" (41.3 mm)
• Number of Frets 20
• Fret Size Vintage
• Headstock Thickness .540” (13.71 mm)
• Neck Thickness 1st Fret - .820" (20.82 mm), 12th Fret - .920" (23.36 mm)
• Peg Hole Diameter .625” (15.87 mm)
