4ms RCD Breakout Eurorack Expansion Module (Rotating Clock Divider)

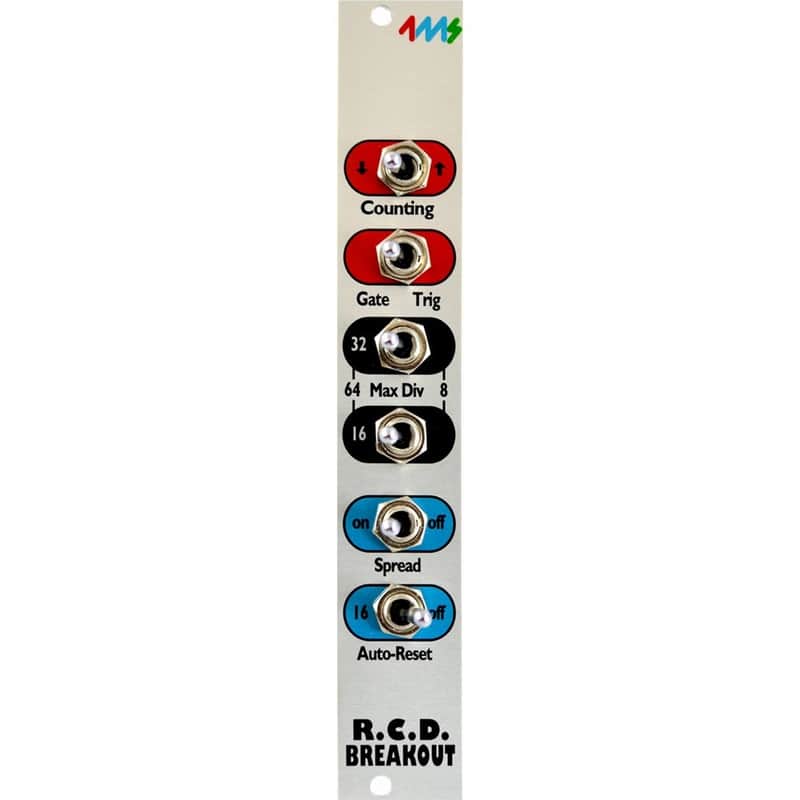

The RCD Breakout adds features to the Rotating Clock Divider module. Six switches allow you to set the maximum Divide-by amount, Gate or Trigger mode, Counting mode, Spread mode, and Auto-Reset. The RCD Breakout requires the RCD to function, and does not use any extra power.
Features Divide-by-1 to Divide-by-64, on 8 output jacks CV Rotate jack to shift divide-by amount on each jack CV Reset jack to reset/re-sync all jacks Optional break-out panels to expand functionality (Auto-reset, selectable Divide-by range, Gate/Trigger, Up/Down-counting) Jacks Clock Input (5V to 15V clock, rising edge triggered), max 3kHz CV Rotate (0V to +5V input) CV Reset (5V to 15V trigger) Divided Clock Outputs (8 jacks): Divide-by-(1+R) Divide-by-(2+R) Divide-by-(3+R) Divide-by-(4+R) Divide-by-(5+R) Divide-by-(6+R) Divide-by-(7+R) Divide-by-(8+R) ...where R is the CV Rotation. Selectable Gate/Trigger mode: Selectable Divide range up to Divide-by-64: Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel. Selectable Auto-reset: Auto-reset will reset the divide counter every 16/24/32 clocks, which keeps the beats more "dance-able" even when using the "weird" clock divisions (3/5/6/7/9/10/11/etc..) Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel. Module size:

The RCD is 4HP and 48mm (1.85")
Power consumption:
+12V rail: __mA +5V rail: not used -12V rail: not used
