RCF NX-L44A ( 1 PAIR) Used

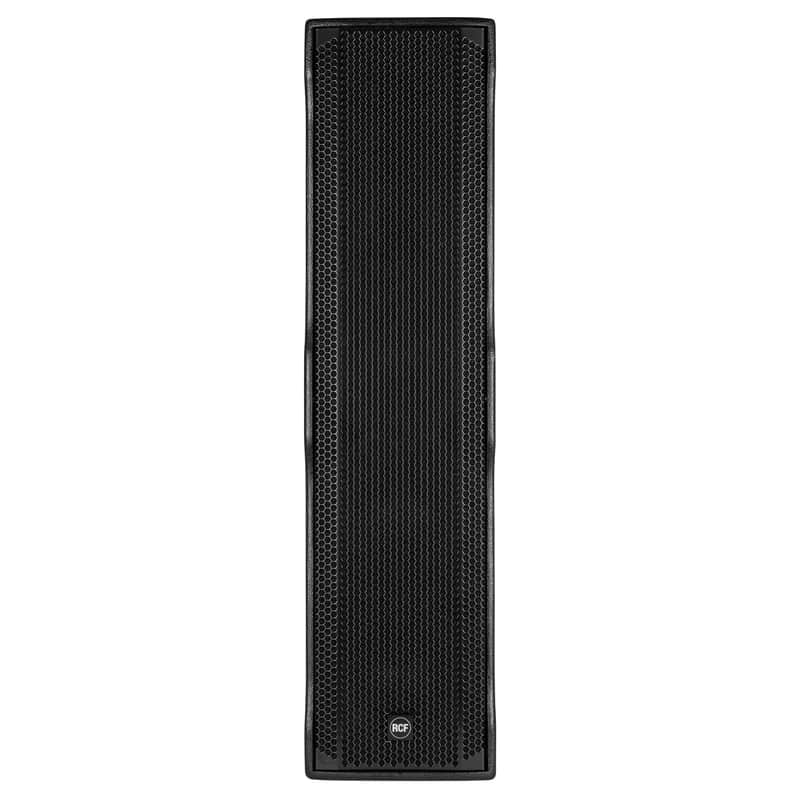

RCF NX-L44A Active Coaxial Column Speaker Array 1400W with (3) 10" ( PAIR)

2 Pairs Available As well as Other

With the NX L44-A, RCF has delivered a unique and powerful 2-way line source, with the sound provided by (3) 10" neodymium woofers and a 1.4" driver with 3" voice coil on an asymmetrical waveguide. All together, they are perfectly tuned to deliver remarkably uniform sonic coverage as well as an extended frequency range. An on-board DSP gives precision control and driven by a two-channel digital amp, the NX L44-A provides very natural-sounding response and high SPL for professional live sound reinforcement. The horn's design is asymmetrical, so it projects sound energy with great precision, minimizing undesired reflections. The enclosure always remains vertical - it does not have to be tilted or aimed in any way that would adversely affect its stability.

RCF's powered line arrays' advanced technology has been delighting audiences and users for many years. Combined with state-of-the-art DSP-driven controllers and digital power amps, these systems raise the bar for reliability and performance.

A true active, high-power, ready-to-use 2-way array system, the NX L44-A comes equipped with a high-efficiency digital amplifier that offers superior SPL while reducing energy requirements. Its integrated processing and the cabling reduction will make for faster and easier set-up, plus thanks to its compact size, the space requirement is reduced to the minimum.

NOTE: SOME OF THE PICTURES SHOW DIFFERENT WAYS TO USE THE NXL44 FLYWARE AND ETC ARE OPTIONAL AND NOT INCLUDED IN THIS SALE
Features:

• Digital bi-amped amplifier with 1400 Watt peak power
• 90° x 30° directivity (+5°, -25°)
• 3 x 10" Neo woofer
• 1.4" compression neo driver, 3.0" voice coil with a waveguide
• DSP Processing with optimized phase response
• Scalable
• Easy to fly and install with built-in rigging points

Specifications:

• Acoustic
• • Frequency Response (@ -3 dB): 45Hz - 20000Hz
  • Max SPL: 134dB
  • Horizontal coverage angle: 90°
  • Vertical coverage angle: 30°
  • Compression Driver: 1.4" neo, 3.0" v.c.

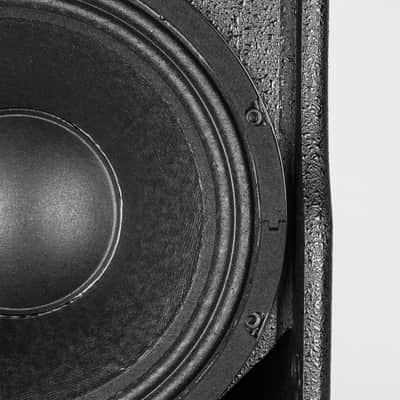

  • Woofer: 3 x 10" neo, 2.5" v.c.

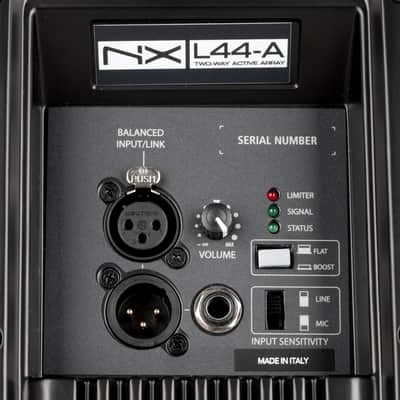

• Input/Output Section
• • Input connectors: Jack- XLR male
  • Output connectors: XLR female
  • Input sensitivity: -2dBu / +4dBu
• Processor Section
• • Crossover frequencies: 800Hz
  • Protections: thermal, rms
  • Limiter: soft limiter
  • Controls: Volume, EQ Shape, Mic/ Line
• Amplifier
• • Total power (Peak): 1400W
  • • High frequencies: 400W
    • Low frequencies: 1000W
  • Total power (RMS): 700W
  • • High frequencies: 200W
    • Low frequencies: 500W
  • Cooling: convection
  • Connections: PowerCON® in-out
• Cabinet
• • Cabinet Material: baltic birch plywood
  • Hardware: 4 x M8, 4 x quick lock, 2 x pole mount

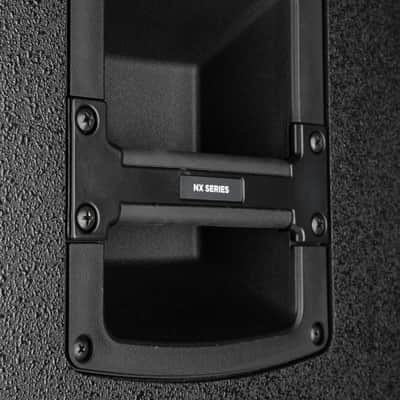

  • Handles: 2 side

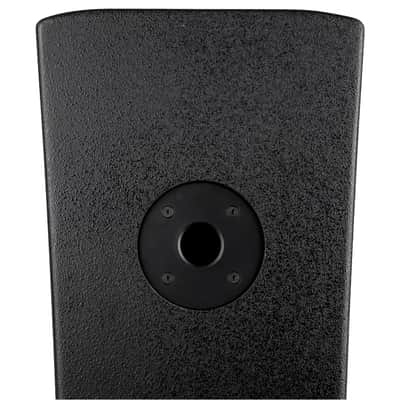

  • Pole Mount/Cap: yes
  • Color: black
• Dimensions (HxWxD): 47.2" x 11.93" x 15.83" (1198 x 303 x 402mm)
• Net Weight: 74.9lbs (34.5kg)
