PRV TW700Ti WHITE Titanium 4" Super Bullet Tweeter 8-Ohm 240 Watts 3500 to 20kHZ
This seller has not set a shipping cost for Latvia. Please contact them to ask about shipping.
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
PRV TW700Ti WHITE Titanium 4" Super Bullet Tweeter 8-Ohm 240 Watts
Features
- Add detail to any speaker with PRV Audio’s TW700Ti WHITE titanium bullet super tweeter! With high frequency response up to 20,000 Hz and a sensitivity of 107 dB at 1W/1m, the TW700Ti can keep up with even the most demanding speaker systems.
- Flat sides allow for close side by side mounting. Double magnet that efficiently increases the magnetic field into the gap, delivering high sensitivity and low distortion.
- High Frequency Bullet Tweeter, capable of adding brilliance and articulation to any professional loudspeaker system
Highlights
- Type: Super Tweeter
- Nominal Impedance: 8Ω
- Rated AES Power Handling (RMS): 120 Watts
- Program Power: 240 Watts
- Voice Coil Diameter: 1.5"
GENERAL SPECIFICATIONS
Nominal impedance
- 8 Ohms
Rated AES Power Handling (RMS)
- 120 Watts
Program Power
- 240 Watts
Sensitivity 2.83V at 1m
- 107 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
- 5000 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB
- 3,500 – 20,000 Hz
Voice Coil Diameter
- 1.5”(38 mm)
Voice Coil Wire
- CCAW
Voice Coil Former Material
- Kapton
Diaphragm Material
- Titanium
Flux Density
- 1.60 T
Magnet Material
- Ferrite
EXTRA INFOOverall Depth

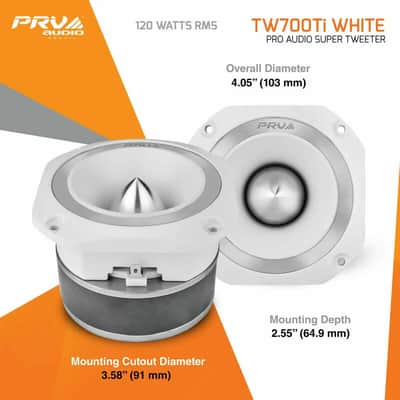

- 2.97” (75.54 mm)
Mounting Depth
- 2.55” (64.9 mm)
Overall Width
- 4.05” (103 mm)
Overall Height
- 4.05” (103 mm)
Cutout Diameter
- 3.58” (91 mm)
Net Weight
- 3.48 lbs (1.58 kg)
Shipping Weight
- 3.62 lbs (1.64 kg)
Carton Dimensions W x L x H
- 4.5” x 4.5” x 3.25”
(114 x 114 x 82.5 mm)
GENERAL SPECIFICATIONS
Nominal impedance
- 8 Ohms
Rated AES Power Handling (RMS)
- 120 Watts
Program Power
- 240 Watts
Sensitivity 2.83V at 1m
- 107 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
- 5000 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB
- 3,500 – 20,000 Hz
Voice Coil Diameter
- 1.5”(38 mm)
Voice Coil Wire
- CCAW
Voice Coil Former Material
- Kapton
Diaphragm Material
- Titanium
Flux Density
- 1.60 T
Magnet Material
- Ferrite
EXTRA INFOOverall Depth
- 2.97” (75.54 mm)
Mounting Depth
- 2.55” (64.9 mm)
Overall Width
- 4.05” (103 mm)
Overall Height
- 4.05” (103 mm)
Cutout Diameter
- 3.58” (91 mm)
Net Weight
- 3.48 lbs (1.58 kg)
Shipping Weight
- 3.62 lbs (1.64 kg)
Carton Dimensions W x L x H
- 4.5” x 4.5” x 3.25”
(114 x 114 x 82.5 mm)
