Fane A60 8 ohm or 16 ohm Ascension Guitar amp Alnico speaker

Builders? Retailers? Message us for quantity pricing.

You are buying one Fane A60 Alnico  8 or 16 ohm which includes a free break in... just mention you want that when ordering.

Here is the description:

Awarded  magazine's  in 2016!

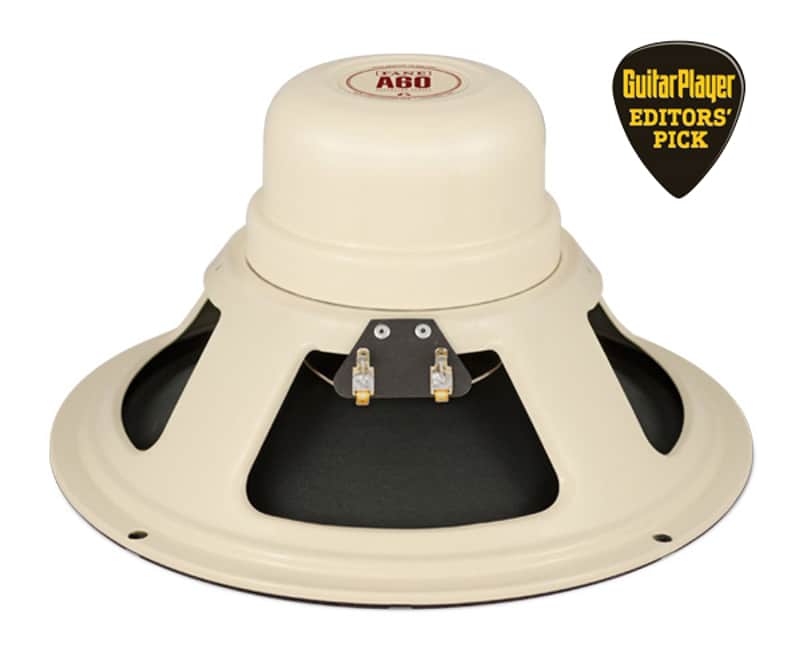

The A60 is a 12-inch, 60 watt, Classic Alnico driver. While its stunningly simple 'old school' visual statement will elicit an instant smile, you will find yourself unprepared for the sonic impact about to be experienced. The keyword here is balance. Every note and harmonic will immediately sound like it has been perfectly expressed.

Providing a refined tonal 'flavour' of the Ascension F70, the A60's detailed, shimmering top-end is never pointed and harsh. It's clear distinct low end coupled with the characteristic Fane vocal mid-range will present the player with an entirely renewed appreciation of harmonic structure. Designed specifically to reveal all of the subtle nuances of a finely crafted tube amplifier, the A60 is tailor made for players looking to explore new sonic territory while enhancing an amplifiers signature voice.

The speaker will be well packed and ship UPS ground insured immediately after order is received. Thank You

AvatarSpeakers.com

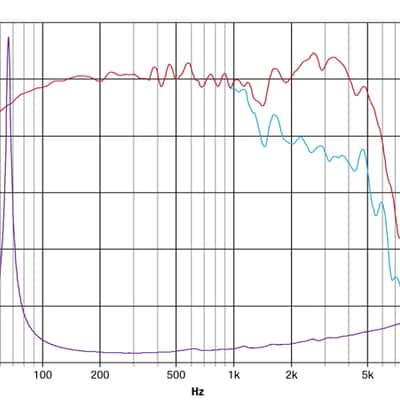

SPECIFICATIONSSeriesAscensionNominal Chassis Diameter12” / 304.8 mmPower Rating (AES)60 WattsFrequency Range70 Hz - 5 kHzImpedance8 / 16 ΩSensitivity100 dBMagnet Weight1 Kg / 35.27 ozMagnetic Gap Depth8 mm / 0.31”Flux Density1.4 TeslaCoil Winding Height11 mm / 0.43”Voice Coil Diameter44.45 mm / 1.75”Voice Coil MaterialCopperFormer MaterialPaperMagnet MaterialAlnicoChassis MaterialPressed SteelCone MaterialPaperFront Gasket MaterialFoamSurround / Edge TerminationPaperDust DomeFabricConnectorsSolder TabsOverall Diameter309 mm / 12.17”Flange Height5 mm / 0.20”Overall Depth166.5 mm / 6.56”Magnet Structure Diameter102 mm / 4.02”Gasket(s) SuppliedFront & RearBaffle Cut-out Diameter284 mm / 11.18”Mounting Hole Information4 x ø8 mm on 297 mm PCDNett Weight4.1 Kg / 9.04 lb
