The PreSonus HP4 Headphone Amplifier is a 4-channel headphone amplifier using high-grade components to ensure optimum performance that will last a lifetime. Are you and your session players and bandmates tired of straining to hear under powered headphones? PreSonus was too, so they created the HP4 headphone-distribution system. These headphone amps are louder than you’re ever likely to need for session and stage use, so be careful with that level control! Yet the sound is clear and clean, with a wide dynamic range. At last, everybody will be able to hear!

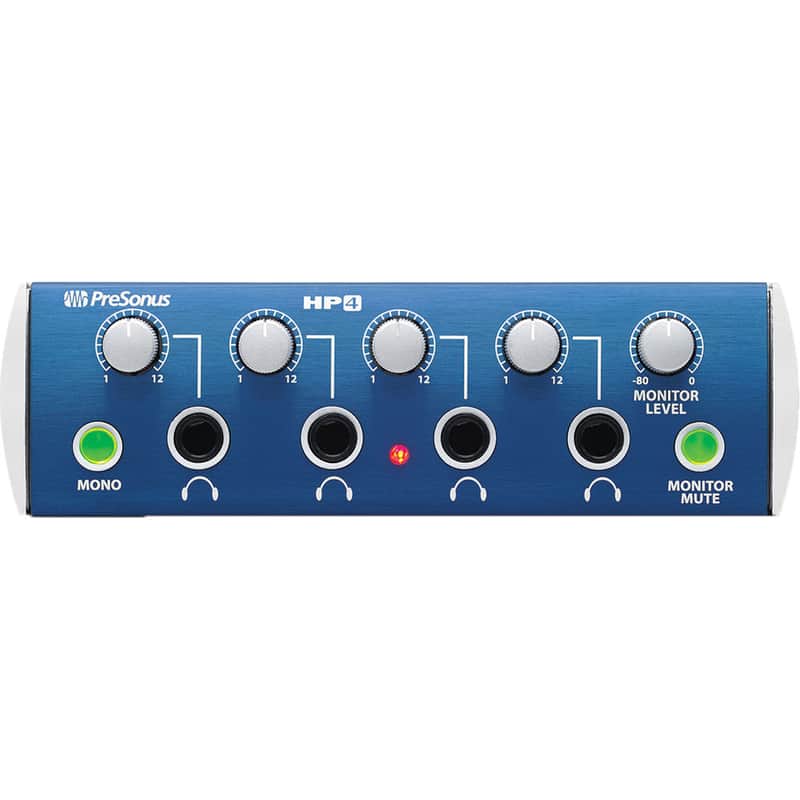

Simple and Versatile
Simplicity is the PreSonus HP4’s hallmark. You get left and right line inputs, left and right line outputs with level control, and the four headphone outs. You can sum the stereo signals to mono, adjust the individual headphone levels, and mute the rear-panel Monitor outputs while leaving the headphone outputs active. So while the PreSonus HP4 is simple to set up and use, it has all the features you need to create a versatile headphone system.

Compact and Expandable
The compact PreSonus HP4 can sit on a tabletop or can be screw-mounted to a standard rack tray (not included), where it requires just 1/3 rackspace. And if your needs grow, you can use the line outputs to feed the inputs of a second PreSonus HP4 or the larger HP60 headphone amplifier. So quit struggling with mediocre headphone amps. Get the PreSonus HP4 and hear everything loud and clear. You owe it to your music.

• Input/Output
  • 4 screaming-loud (130 mW per channel) stereo ¼” headphone outputs (front panel)
  • 2 balanced ¼” line outputs (monitor outputs)
  • 2 balanced ¼” line inputs
• Meters, Controls, and Features
  • Headphone level control for each channel
  • Mono summing switch for each channel
  • Monitor level control
  • Monitor mute switch
  • Daisy-chain multiple units via monitor outputs
• Physical
  • Compact 1/3U rack-mount chassis
  • Sealed, detented, metal rotary controls
  • External 16 VAC power supply

• Inputs:
  • Connector Type: ¼” TRS, Balanced
  • THD+N: 0.0025%, 1 kHz, Unity Gain
  • Max Input Level: +18 dBu, <0.5% THD+N, Unity Gain
  • Input Impedance: 10 kO
  • Frequency Response: 20 Hz - 20 kHz, ±0.5dB
• Monitor Outputs:
  • Connector Type: ¼” TRS, Asymmetrical, Impedance-Balanced
  • THD+N: 0.0025%, 1 kHz, Unity Gain
  • Max Output Level: +18 dBu, <0.5% THD+N
  • Output Impedance: 51O
  • Frequency Response: 20 Hz - 20 kHz, ±0.5dB
• Headphone Outputs:
  • Connector Type: ¼” TRS, Stereo
  • Max Output Power: 130 mW/Ch., <0.5% THD+N, 60O Load
  • Frequency Response: 20 Hz - 20 kHz, ±0.5 dB, 60O load
  • Headphone Impedance Working Range: 32O - 600O
• Power:
  • External Adapter Type: +12 VDC, 1000 mA, Center Pin Positive
• Physical:
  • Dimensions: 1/3U Rack-Mount (With Standard Rack Tray, Not Included)
  • Height: 1.75” (44.45 mm)
  • Depth: 5.5" (139.7 mm)
  • Width: 5.5” (139.7 mm)
  • Weight: 5 Lbs (2.27 kg)

• 1 x PreSonus HP4 Headphone Amplifier
• 1 x 16 VAC, 1,000 mA Power Supply
• 1 x IEC Power Cable
• 1 Year Warranty
