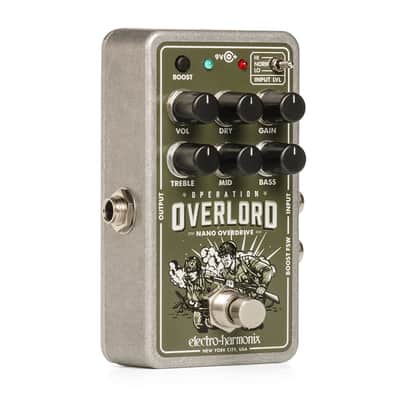

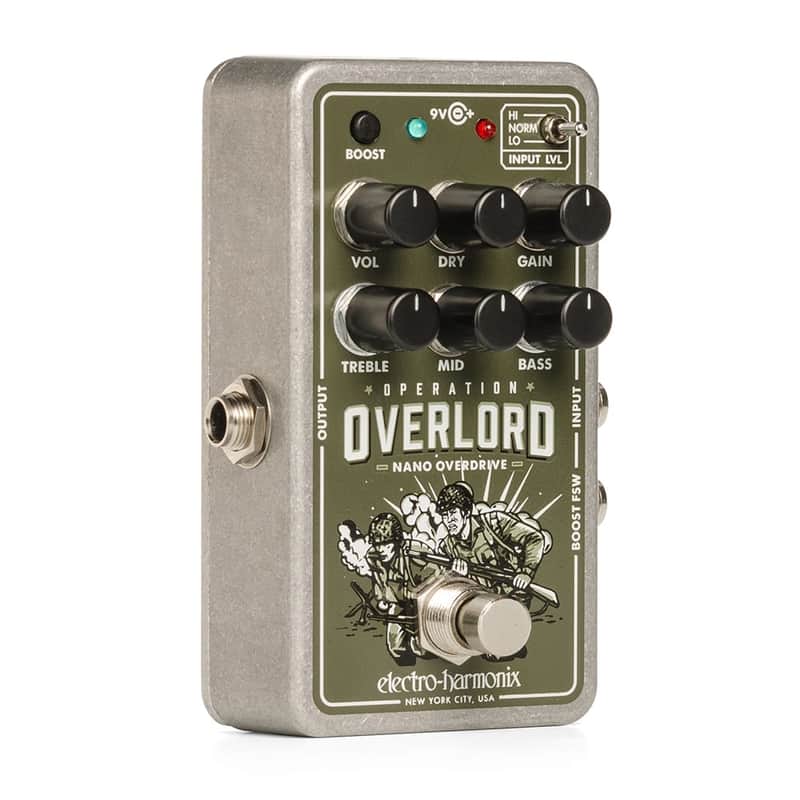

NANO OVERLORD

A nano-sized version of the Operation Overlord with the same great overdrive and distortion tones, but in mono for those who don’t require stereo ins/outs. It’s super versatile and ready for your axe be it guitar, bass or keys.

The EHX Nano Overlord is switchable between two modes: Normal and Boost. Normal mode provides low to medium gain sounds and relies on three amp-like JFET gain stages. When Boost mode is engaged it’s like adding a pedal-type OD circuit in front of the JFET stages to really increase overall distortion. The pedal also features a Dry blend control which is invaluable for bass and keyboards, a 3-position input level selector switch and an active 3-band EQ.

Compact, yet feature laden overdrive and distortion pedal
Create sounds ranging from boost without the grit and sweet crunch all the way to intensely saturated overdrive and thick distortion
3-position input level switch lets you set the initial input gain level for a variety of instruments including guitar, bass and keyboards
Active 3-band EQ for superlative tone shaping
In Normal Mode three amp-like JFET gain stages provide low to medium gain sounds
In the switchable Boost Mode a classic pedal-style overdrive circuit is added before the JFET stages to increase overall distortion
The pedal’s Dry blend control is especially useful for bass and keyboards because it lets you retain your instrument’s articulation, harmonic content and bottom end
Power adapter included

SPECIFICATIONS
Circuit
Analog
Bypass
Buffered Bypass
Audio
Mono
Power Supply
9.6VDC-200mA power adapter included
Dimensions (in)
4.5 x 2.75 x 2.1
Current Draw
50mA
Year Released
2019
UPC
683274012193
