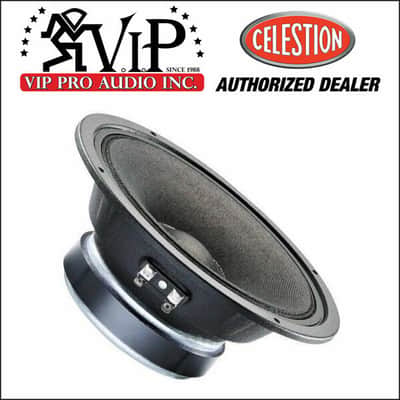

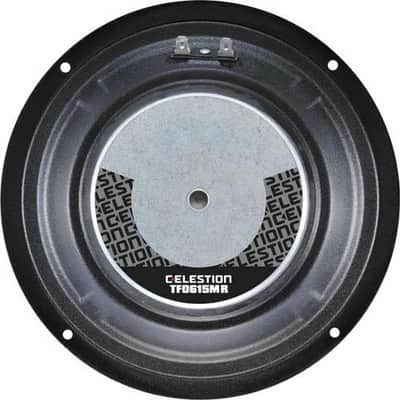

Celestion TF0615MR 6" Pro Midrange Closed Sealed Back Speaker 100W Woofer 8-Ohms

Features

• 6" mid-range driver providing 97dB sensitivity and 50Wrms (AES standard) power handling
• 1.5" high temperature copper voice coil wound on polyimide former for increased reliability
• Very compact model suitable for use in 3-way systems
• Optimised to deliver detailed reproduction of mid-range frequencies
• Closed back chassis simplifies cabinet manufacture, eliminating need for separate mid-range enclosure

Specifications

Chassis Type

• Pressed steel

Coil Material

• Round copper

Cone Material

• Kevlar loaded paper

Former Material

• Polyimide

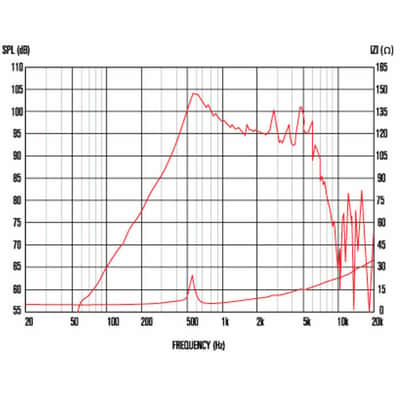

Frequency Range

• 500 to 5000Hz

Magnet Type

• Ferrite

Nominal Diameter

• 152mm / 5.98"

Nominal Impedance

• 8Ohms

Sensitivity

• 97dB

Surround Material

• Treated paper

Suspension

• Single

Voice Coil Diameter

• 1.5" / 38.1mm

Small Signal Parameters

• Fs: 500Hz
  Re: 5.7Ohms
  Le (at 1kHz) 0.27mH

Mounting Information: Diameter

• 7.01" / 178.05mm

Mounting Information: Overall Depth

• 74mm / 2.91"

Mounting Information: Cut-Out Diameter

• 147mm / 5.79"

Mounting Information: Slot Dimensions

• Diameter: 4.3mm / 0.17"

Mounting Information: Number Of Slots

• 4

Mounting Information: Pcd Range

• 168.5mm / 6.63"

Power Rating

• 50Wrms

Weight

• Mounting: 1.4kg / 3.09lbs
  Magnet: 1.06lbs / 0.48kg
