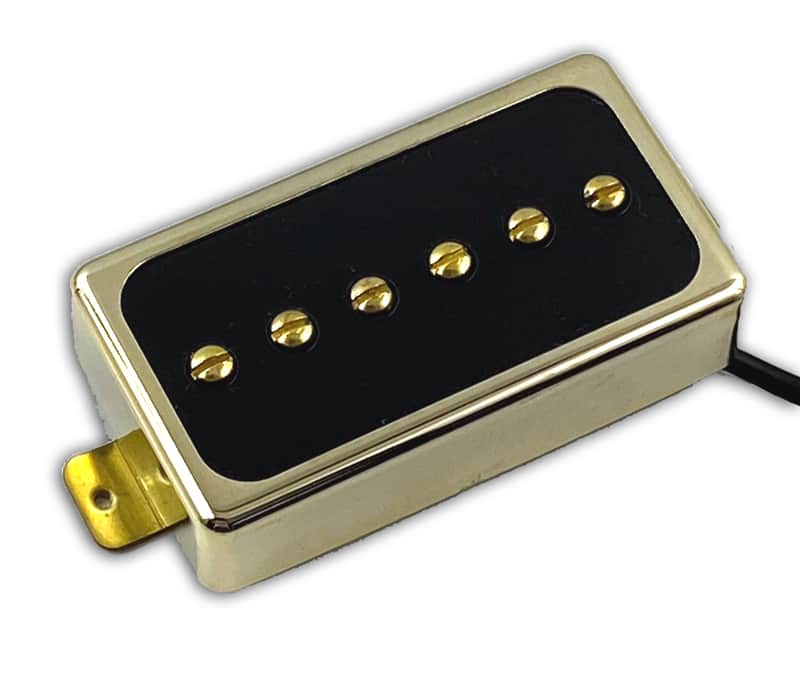

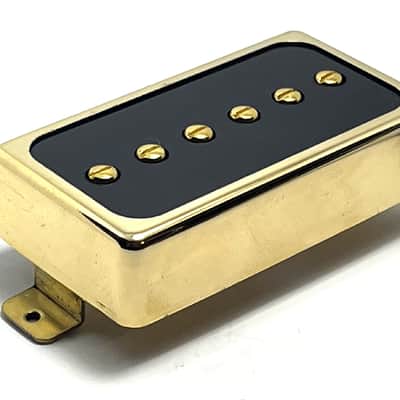

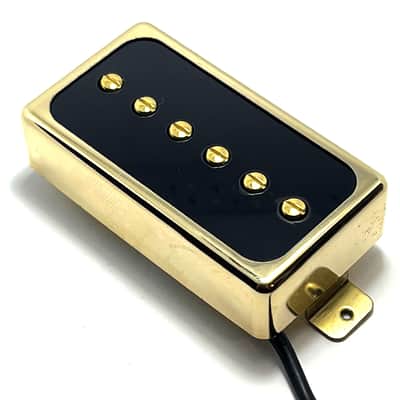

Dragonfire H90 Bridge Pickup ~ Humbucker Sized P90 Performance Pickup, Gold Ring with Black Inlay

Dragonfire H90 Bridge Pickup ~ Gold Ring Half Cover w/ Black Inlay ~ Passive Pickup, Bridge Position Humbucker Sized-Cased P90 ~ H-90 (Hum Sized P90) Single Coil Pickup

The H 90 is offered for those players who want P 90 tone, but cut for Humbucker routs. These are single coil P-90 style pickups encased in a standard humbucker-sized half cover. Great for country, blues and rock, the Dragonfire H90s offer classic P90 performance for your humbucker slot.

These pickups are standard covered humbucker size. They are not the same size as uncovered humbucker pickups and are not the same size as a standard P90 pickup. It is important to check your measurements prior to purchase and let us know if you have any questions.

~~Product Highlights~~
*P-90 Pickup Encased in Standard Humbucker-Sized Half Cover
*Brand New Passive Pickup
*6-String Standard Guitar Pickup
*Ceramic Magnet Style
*2 Conductor Wiring (2 Wire Pickup)
*Texas Hot Wound
*Standard Spacing
*Wax Potted for Squeal Reduction
*Bridge Position Use
*Short Style Mounting Legs (Standard Style)
*6 Adjustable Screw Exposed Polepieces
*Standard Insulated Lead Wire (Stranded Style)

~~Approximate Measurements~~
*Bridge Polepiece Spacing: 52mm
*Approximate Bridge Output: Wound to ~8.6K
*Pickup Length: 68mm (84mm including mounting flanges)
*Pickup Width: 37mm
*Pickup Depth: 22mm
*Mounting Screw Spacing: 78mm
Measurements provided are approximations; variability is to be expected.

~~What's Included~~
*1 Bridge Pickup
*Pickup Mounting Screws
*Pickup Tension Mounting Springs
*BASIC Wire Color Codes
Basic wire color codes will let you know which wires are hot and which are grounds. Due to the vast and varied nature of possible set-ups, we do not provide specific information or diagrams for installation. You should be able to use the simple information we provide to match up with any diagram or instructions you choose to use. Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

~~Purchase Notes~~
ASK ANY QUESTIONS PRIOR TO PURCHASE.
Buyers assume all risk of use; sales are only offered to those competent to safely and lawfully purchase and use items. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, etc. prior to purchase.
Detailed instructions for installation are NOT included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice. Take your time for installation; do not use power tools and do not over-tighten or apply too much pressure on components.
Inspect your order upon receipt. We will address any issues PRIOR to installation. If everything is in order, simply install carefully to enjoy.
