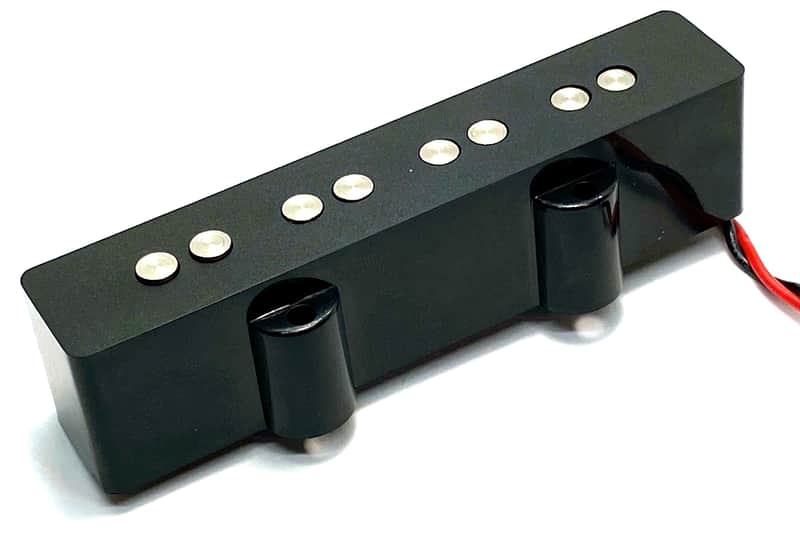

Dragonfire 4 String Standard Jazz Bass Bridge Pickup, 1 Individual J Bass Bridge Pickup, Black

Dragonfire Standard Jazz Bass Bridge Pickup ~ 1 qty 4-String J Bass Pickup ~ BLACK

~~Item Description~~
The Dragonfire Jazz Bass Pickups in this Standard Passive Jazz category are great for all-around J-Bass performance. Adding a nice dimension to your playing, these excel in the midrange while still allowing for satisfying low-end forays and high-end response. The eight-pole design on these single-coil J Pickups will work for your fretted or fretless 4-string bass. Wax potting on the pickups helps isolate sound and reduce feedback or other undesirable noise.

Featuring ceramic magnets and flat-top pole pieces to provide better balance and output across the strings, these pickups produce roughly 6.2K output on the bridge. Each pickup comes wired with a colored (hot) wire and black (ground) wire. These pickups are great for most styles of play and have tons of versatility, while still maintaining bite.

Check our Reverb Store if you only need this pickup style in a set for savings and convenience.

Bass pickup dimensions have varied over time so be sure to check your cavity and available space with the approximate measurements for these pickups (provided below).

We offer this same pickup style in other colors as well. Please see our Reverb Store Page or contact us if you have any questions or would like more information.

~~Product Highlights~~
*Brand New Standard J-Bass Passive Pickup
*4-String Bass Guitar Style
*Ceramic Magnet Style
*Wax Potted Pickup
*Adhesive Backing on Pickup Pad

~~Approximate Measurements~~
*Output: 6.2K (Bridge)
*Flat Top Polepiece Spacing: 56mm (Bridge)
*Length: 95mm (Bridge)
*Width: 30mm (19mm excluding screw flanges)
*Depth/Height: 23mm
*Bridge Mounting Screw Spacing: 40mm x 24mm
*Pickup Pad Measurements: 64mm x 14mm x 13mm
Measurements provided are approximations; variability is to be expected. Ask any questions regarding options, measurements, installation, requirements, special requests, etc. prior to purchase.

~~What’s Included~~
*1 Jazz Bass Bridge Pickup
*Pickup Mounting Screws
*J Bass Pickup Foam Cushion Pad
Nothing else is included. Any extra images are provided for additional reference and comparison purposes only.

~~Purchase Notes~~
Ask any questions prior to purchase.

Buyers assume all risk of use; sales are only offered to those competent to safely and lawfully purchase and use items. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, etc. prior to purchase.

Detailed instructions for installation are NOT included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice. Take your time for installation; do not use power tools and do not over-tighten or apply too much pressure on components.

Inspect your order upon receipt. We will address any issues PRIOR to installation. If everything is in order, simply install carefully to enjoy.
