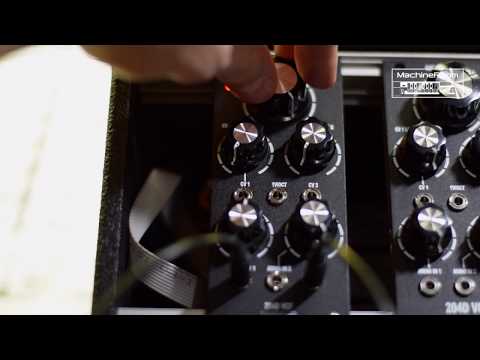

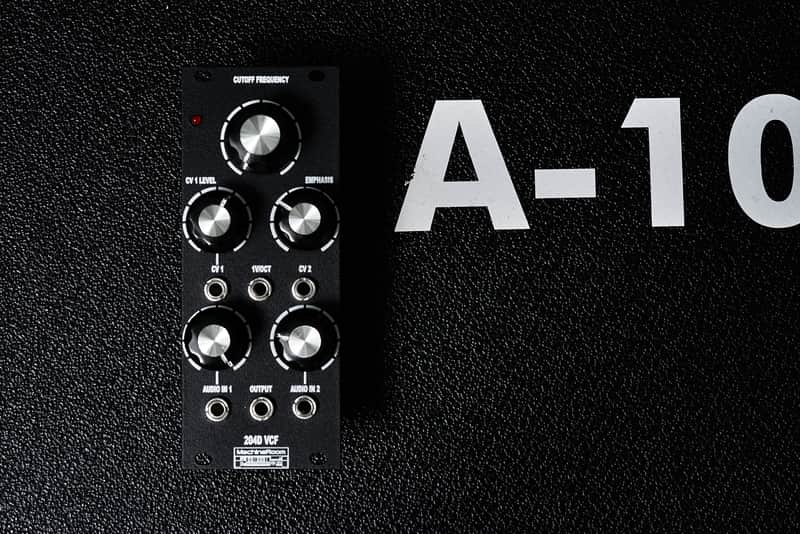

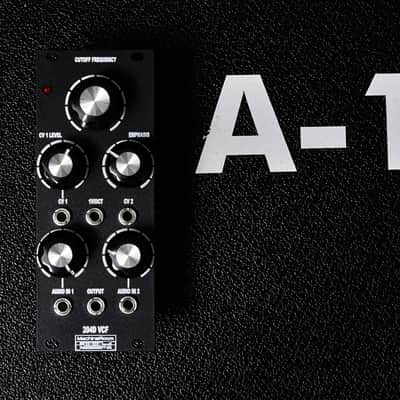

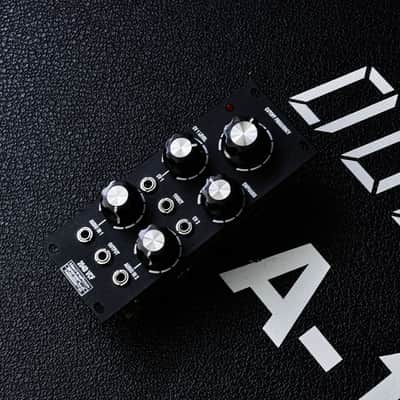

MachineRoom 204D VCF
Our users rate Reverb
VCF / Passive Mixer
204D is a voltage controlled low-pass filter, which filters out the higher parts of the sound spectrum, and lets lower frequencies pass through. Based on "transistor ladder" design of Minimoog 204D, with a cut-off slope of -24 dB/octave as in various Moog synthesizers.
Resonance (or Emphasis) is adjustable all the way up to self-oscillation - in this case the filter behaves like a sine wave oscillator with V/Oct tracking up to 4 octaves.
Works as passive 2-channel mixer as well.
3cv inputs allows complex cut off modulation.
Handmade with thru-hole components only. Skiff-friendly.
- 120 mA +12V
- 15 mA -12V
- 30 mm Depth
- 10 HP
As builders we will repair (or replace) our devices as long as we stay in the business. We will repair (or replace) the device free of charge during the first year from the purchase date and for an original owner. If you are not an original owner - please contact us and we will work out and offer you a solution. Warranty does not apply to the enclosure, graphics, knobs, hardware or any devices that are deliberately destroyed or modified by anyone
