The Sennheiser Pedalboard Set Digital Wireless Guitar System features components from the XSW-D series. Get the freedom you've been looking for on stage with this incredibly reliable wireless system.

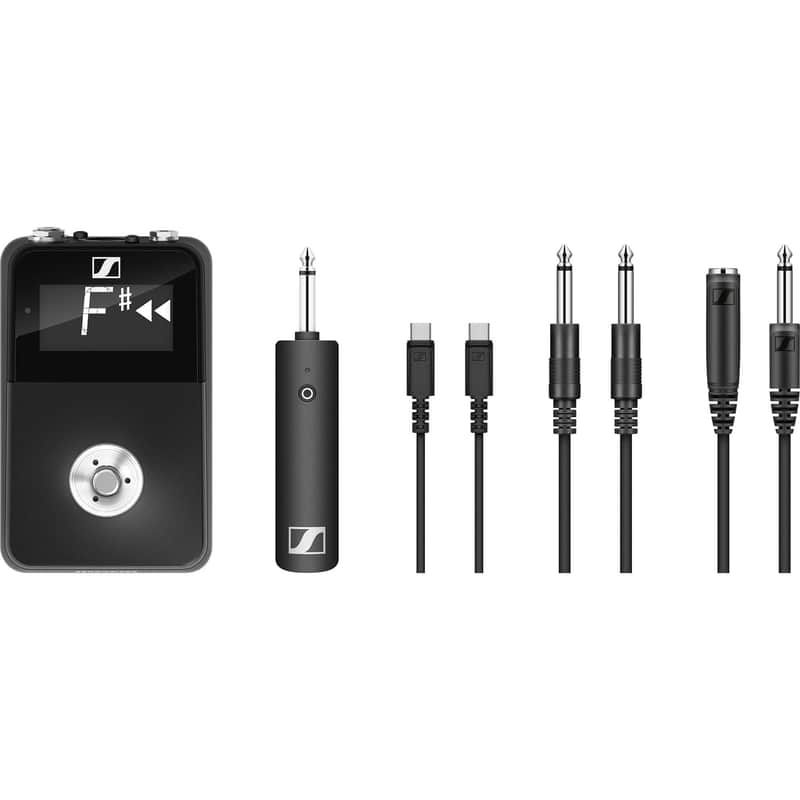

XSW-D Pedalboard Set includes:
- XSW-D INSTRUMENT TX transmitter (6.3mm, 1/4")
- XSW-D Pedalboard RX receiver
- Beltpack clip
- Extension cable (6.3mm, 1/4")
- USB-C to USB-C charging cable
- Receiver power supply

Features:
- One touch ease-of-use
- 2.4 GHz digital transmission for worldwide operation
- 75m range (250ft) in optimal conditions
- Up to 5 hours battery life on a single charge
- Switch between multiple transmitters linked to one receiver
- Configure any combination of transmitters and receivers
- Mute from either transmitter or receiver .

Specs:
Dimensions:
- XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
- XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
- XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
- XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
- XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
- XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
- XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm

THD, total harmonic distortion: < 0.1 %

Charging time: typ. 3 h

Audio output: max. 12 dBu

Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)

Signal-to-noise ratio: ≥ 106 dB

Operating time: up to 5 h

Modulation: GFSK with TDMA

Battery Specification: Li-Ion

Capacity: 850 mAh

Codecs: aptX® Live

Frequency range: 2,400 - 2,483.5MHz

Max. Input voltage: typ. 5.0 V

Transmission power: max. 10 mW

Voltage: 3.7 V

Operating relative humidity: 95 % (non-condensing)

Latency: < 4 ms

Temperature Range: 0 °C - 60 °C (32 °F - 140 °F)

Audio frequency response:
- 3.5 mm Jack/XLR: 80 - 18,000 Hz
- 6.3 mm Jack: 10 - 18,000 Hz
