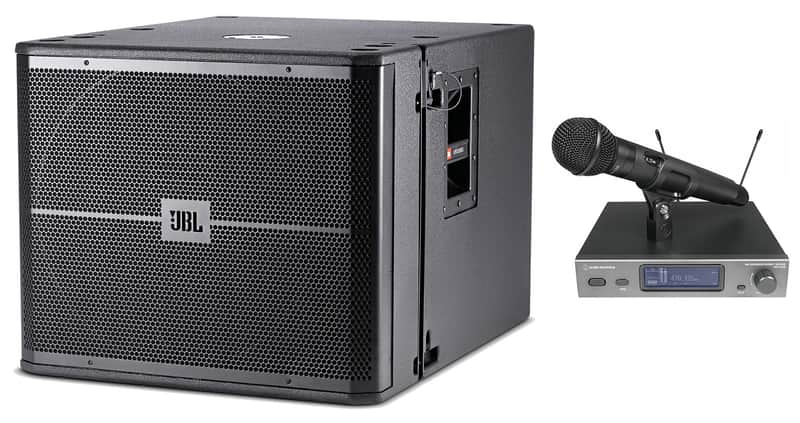

JBL VRX918SP Powered Active 18" 1500 Watt Subwoofer Sub w/DSP+Audio Technica Mic

Package Includes:

• (1) JBL VRX918SP Powered Active 18" 1500w Flyable Suspendable Subwoofer Sub w/DSP

• (1) Audio Technica ATW-3212/C510DE2 3000 Wireless Handheld Microphone+Mic Receiver


Description:

18 in. High Power Powered Flying Subwoofer

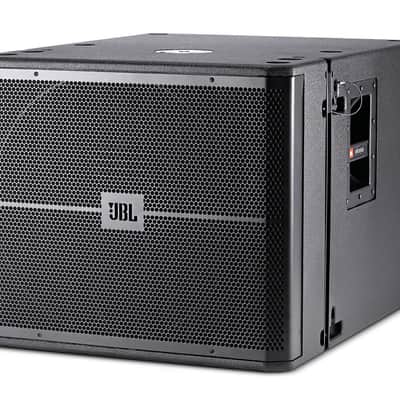

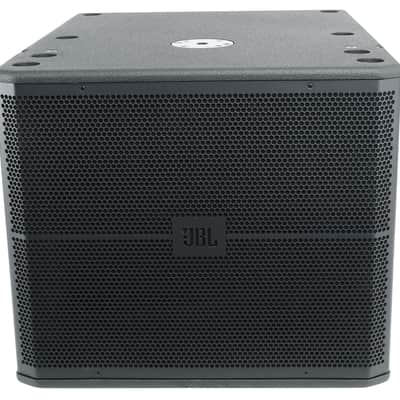

The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.

Features:

• Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak Power. DSP based resident input module provides system optimization, EQ and crossover functionality.
• 18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and light weight.

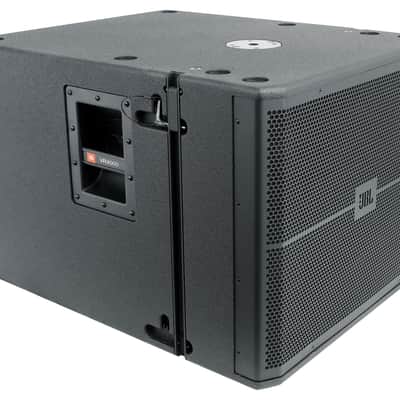

• Integral rigging hardware for simple connection of enclosures and optional array frame.
• 20 mm threaded pole socket for solid, secure satellite speaker mounting.
• Large port area for reduced distortion.

Specifications:

• Power Rating: 1500 Watts PeakLF: Dual-Bridged Technology™, Class D
• Frequency Range: 31 Hz – 220 Hz
• Dimensions (H x W x D): 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)
• Frequency Response (-10dB): 31 Hz – 220 Hz
• Maximum Peak Output: 126 dB SPL at 1m
• Bandpass Nominal Impedance: LF: 2 x 2 ohms
• LF Driver: 1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive® woofer with neodymium-magnet

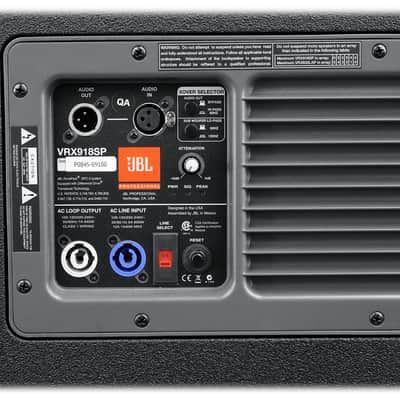

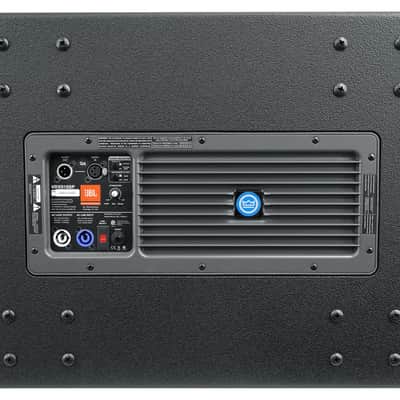

• Inputs: XLR with loop through

• User Controls: Input Attenuator (0-16 dB)Selectable 80 Hz or 120 Hz Low Pass 80 Hz High-Pass enable/disable for XLR loop thru.
• System Processing: DSP based, resident in Input Module
• System Management: DSP based limiters for mechanical and thermal protection
• AC Power Operating Range: 90-132 VAC or 216-264 VAC, 50/60Hz
• AC Line Voltage: User selectable: 120V/240V (-15%, +10%)

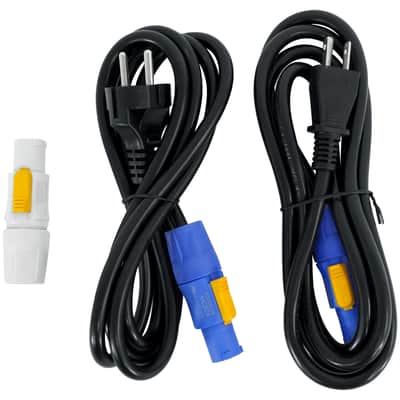

• AC Input Connector: Neutrik PowerCon (NAC 3MPA)
• AC Loop Through Connector: Neutrik PowerCon (NAC 3MPB)
• AC Current Requirements: 6A per system at 120V, 3A per system at 240V
• Enclosure: 18 mm birch plywood.
• Suspension / Mounting: Optional VRX-AF line-array frame kit or 10 mm forged eyebolts
• Finish: Black DuraFlex™ finish

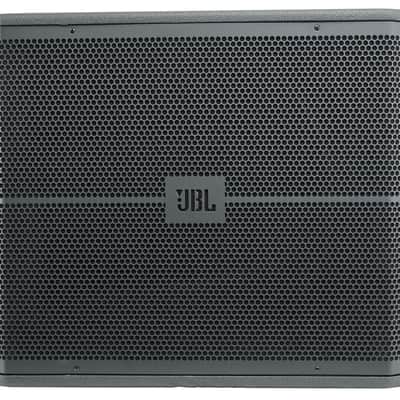

• Grille: Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
• Net Weight (each): 38.5 kg (85 lb)
• Optional Accessories: VRX-AF array frameSRX718S-CVR: Pull-over padded cover (works with WK-4S) SS4-BK adjustable satellite speaker pole WK-4S Caster kit
• Outputs: 1 x XLR
• Nominal Impedance: LF: 2 x 2 ohms

Authorized Audio-Technica Dealer!

What’s in the box:

• ATW-R3210 receiver
• ATW-T3202 handheld transmitter
• ATW-C510 cardioid dynamic microphone capsule

Description:

Providing easy setup, versatile operation and rock-solid, richly detailed high-fidelity sound, Audio-Technica’s fourth-generation 3000 Series wireless systems give users the power and flexibility to operate within the congested UHF spectrum.

With a class-leading 60 MHz tuning range – more than twice that offered by the previous versions – the new 3000 Series systems are available in frequency bands – DE2 (470–530 MHz). Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets users set a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference.

This system configuration features an ATW-R3210 receiver along with an ATW-T3202 handheld transmitter and an ATW-C510 interchangeable capsule. The ATW-T3202 comes with an ATW-C510 dynamic interchangeable cardioid capsule, and its industry-standard thread allows for the use of Audio-Technica and other compatible capsules. The transmitter features rugged, metal housings and is powered by two AA batteries. Charging terminals on the transmitter work with the ATW-CHG3 and networkable ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries. Antenna power is available for powered antennas and other in-line RF devices. A ground-lift switch helps eliminate audible hum caused by ground loops. The system features balanced and unbalanced audio output jacks.

60 MHz Tuning Range

With a class-leading 60 MHz tuning range – more than twice that offered by the previous versions – the new 3000 Series systems are available in frequency bands – DE2 (470–530 MHz). Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets users set a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference.

Interchangeable Cardioid Capsule

The ATW-T3202 comes with an ATW-C510 dynamic interchangeable cardioid capsule, and its industry-standard thread allows for the use of Audio-Technica and other compatible capsules.

Multi-Function button

Unique multifunction button on the body-pack transmitter can be used to switch to a backup frequency

Charging terminals

Charging terminals on each transmitter work with the ATW-CHG3 and networkable ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries

OLED Screens

Transmitters and receivers include OLED screens for optimal readout of key settings and alerts

Features:

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in frequency bands: DE2 (470–530 MHz)
• Unique multifunction button on the handheld transmitter can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
• True Diversity operation reduces dropouts
• Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Frequency scan and IR sync functionality for ease of setup
• Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
• Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
• Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
• Charging terminals on transmitter work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
• Antenna power available for powered antennas and other in-line RF devices
• Ground-lift switch helps eliminate audible hum caused by ground loops
• Balanced and unbalanced audio output jacks
• ATW-C510 dynamic interchangeable cardioid capsule

Specifications:

Microphone Element Dynamic Polar Pattern Cardioid Frequency Response 90 - 12000 Hz
  Impedance 50 Ohms
  Weight 129 g
  Dimensions 78.5 mm long, 53.7 mm max. diameter
  Output Connector Interchangeable industry-standard thread
  Overall System Operating Frequencies Band DE2: 470.125 to 529.975 MHz
Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.
  Minimum Frequency Step 25 kHz
  Modulation Mode FM
  Maximum Deviation ATW-T3201: ±38 kHz (THD:10%)
ATW-T3202: ±36 kHz (THD:10%) Simultaneous Use 40 Channels per band*
For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent Frequency Response ATW-T3201: 31 Hz to 15500 Hz
ATW-T3202: 25 Hz to 16700 Hz Operating Range 100 m
  Dynamic Range ATW-T3201 Mic input: > 115 dB (A-weighted), typical
ATW-T3201 Inst input: > 112dB (A-weighted), typical
ATW-T3202: > 115 dB (A-weighted), typical Total Harmonic Distortion <1.0% (at 1 kHz, ±17.5 kHz deviation)
  Operating Temperature Range -5 ºC to +45 ºC
  Receiver Receiving System True Diversity
  Sensitivity 20 dBuV at 60 dBA S/N ratio (50Ω termination)
  Maximum Output Level XLR / Balanced: +14 dBV
6.3 mm (¼"") / Unbalanced: +8 dBV Antenna Input BNC-type, 50 O
  Power Output 12 V DC, 160 mA (combined)
  Power Supply 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply Dimensions 210.0 mm x 191.0 mm x 43.4 mm (W x H x D)
  Weight 1100 g, without accessories
  Accessories Included Two Flexible UHF antennas
AC adapter (country dependent)
Rack Mount Adaptors Handheld Transmitter RF Power Output High: 30 mW, Low: 10 mW (switchable), at 50 O
  Spurious Emissions Following Federal and National Regulations
  Microphone Element
