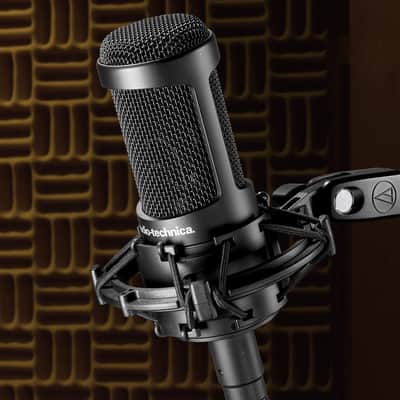

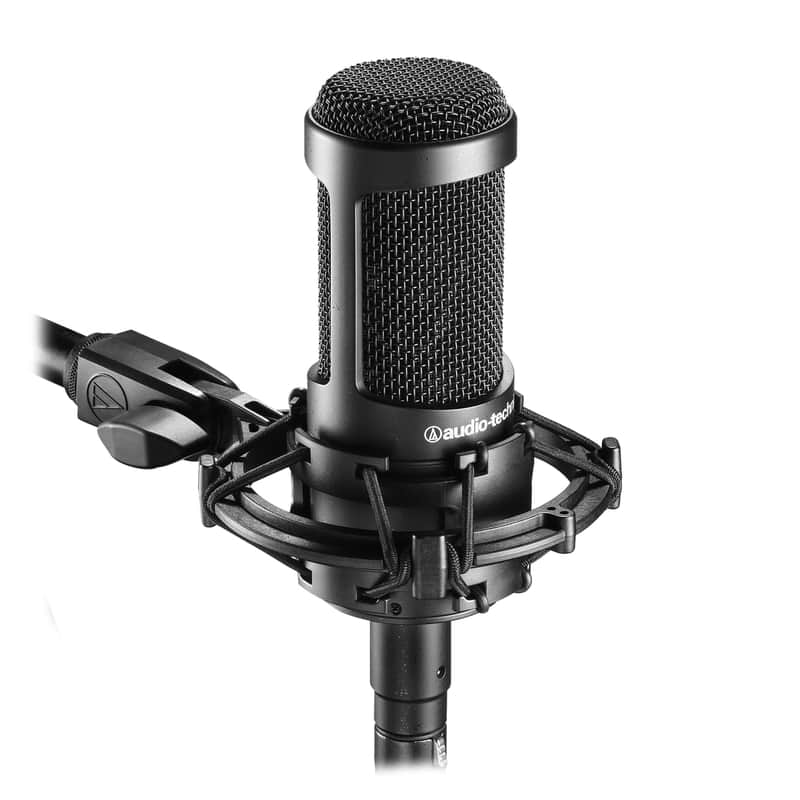

Audio-Technica AT2035 Large diaphragm Cardioid Condenser Microphone

Designed for critical home/project/professional studio applications and live performance, this side-address cardioid studio condenser delivers exceptional detail and low noise. Equipped with a switchable 80 Hz high-pass filter and 10 dB pad, the AT2035 handles high sound pressure levels with ease. Along with its rugged construction and high-performance specifications, the AT2035 provides an exceptional level of consistency from model to model. It comes equipped with a protective pouch and a custom shock mount.


• Large diaphragm for smooth, natural sound and low noise

• High SPL handling and wide dynamic range provide unmatched versatility

• Custom shock mount provides superior isolation

• Switchable 80 Hz high-pass filter and 10 dB pad

• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

• Includes custom shock mount & protective pouch

Specifications

Microphones Element

• Fixed-charge back plate, permanently polarized condenser

Polar Pattern

• Cardioid

Frequency Response

• 20-20,000 Hz

Low Frequency Roll Off

• 80 Hz, 12 dB/octave

Open Circuit Sensitivity

• -33 dB (22.4 mV) re 1V at 1 Pa

Maximum Input Sound Level

• 148 dB SPL, 1 kHz at 1% T.H.D.;

• 158 dB SPL, with 10 dB pad (nominal)

Noise

• 12 dB SPL

Dynamic Range

• 136 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio

• 82 dB, 1 kHz at 1 Pa

Phantom Power Requirements

• 11-52V DC, 3.8 mA typical

Switches

• Flat, roll-off;

• 10 dB pad (nominal)

Weight

• 403 g (14.2 oz)

Dimensions

• 170.0 mm (6.69") long,

• 52.0 mm (2.05") maximum body diameter

Output Connector

• Integral 3-pin XLRM-type

Accessories Included

• AT8458 shock mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch

Audio-Technica Case Style

• R5
