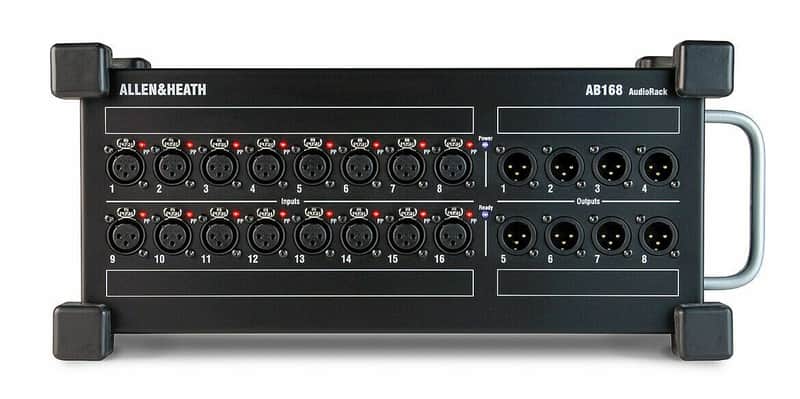

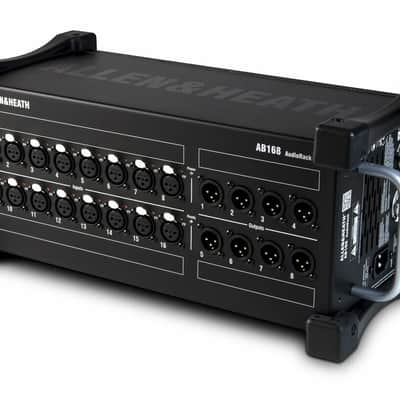

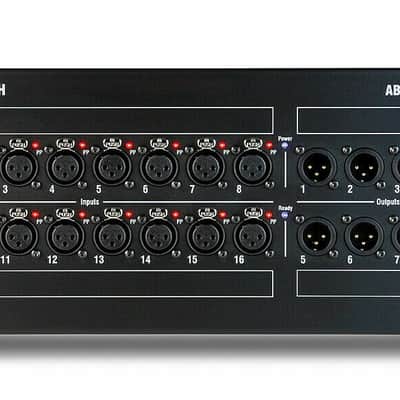

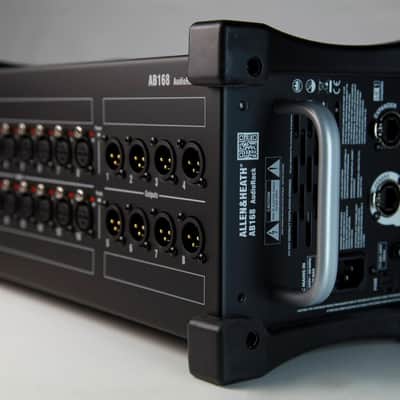

Allen & Heath AB-168 48kHz Portable Remote AudioRack for w/ Qu,Avantis,SQ mixer

• 16 XLR Input / 8 XLR Output – 48kHz

• AB168 is a 48kHz portable remote AudioRack for use with Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor.

• Featuring 16 mic preamps with Phantom Power indicators and 8 XLR line outs, AB168 runs on Allen & Heath’s proprietary dSNAKE protocol.

• Adding an AB168 to a compatible system allows some or all I/O to be positioned up to 100m from the mixer. The unit connects over a single Cat5 cable to the mixer or AR2412 AudioRack via a secure dSNAKE EtherCon port. A second EtherCon port is provided for daisy-chaining to another AB168 box or connection of a ME personal mixing system. AB168 auto updates its firmware to synchronise with the system.

• The rack’s rugged design, including rubber bumpers, renders it highly roadworthy and allows it to be placed on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, AB168 is also designed for maximum convenience and portability. An optional rack mounting kit is also available.

Features

• 48kHz
• 16 Mic Preamps
• 8 XLR Line Outs
• Expander port for daisy-chaining of 2 AB168 Expanders or connection ME personal mixers
• Optional 19-inch rack mount kit available
• Compatible with CAT5e (or higher) cables of up to 100m
• Rubber bumpers
• Carry handle
