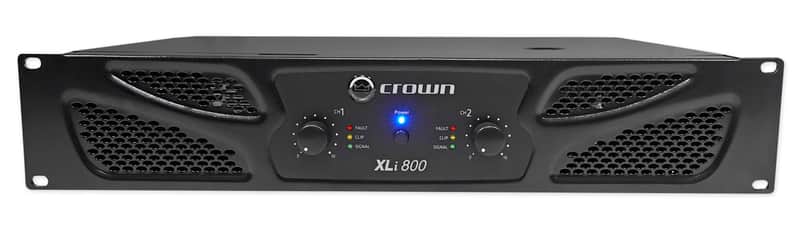

Crown Pro XLi800 600w 2 Channel DJ/PA Power Amplifier Professional Amp XLI 800

New Page 1

Authorized Crown Audio Dealer!

Description:

Powerful. Reliable. Affordable.
The XLI Series of power amplifiers from Crown represents a new era in affordable, quality power amplification. All four models in the series are powerful, rugged and reliable. They are suited for musicians, DJs, and entertainers as well as houses of worship, discos, and pubs.

Features include RCA and XLR inputs, user selectable input sensitivity of 0.755V or 1.4V, Speakon® and binding post outputs, stereo/parallel/bridge-mono mode, power/fault/signal presence/clip indicators, forced-air cooling; and protection against shorts, no-load, on/off thumps and radio-frequency interference.

Features:

• Crown Pro XLi800 600 Watt 2-Channel DJ/PA Power Amplifier
• RMS Power @ 4 Ohms: 300 Watts x 2 Channels
• RMS Power @ 8 Ohms: 200 Watts x 2 Channels
• RMS Power @ 8 Ohms Bridged: 600 Watts x 1
• Frequency Response: 20 Hz - 20 kHz
• THD: <0.5%
• Distortion: <0.35%
• Slew Rate: >10V/us
• Voltage Gain: 29 dB
• Damping Factor: 8 Ohms, 10 Hz to 400 Hz
• Signal to Noise Ratio (A-Weighted): >100 dB
• Crosstalk: -75 dB, -59 dB
• Input Sensitivity: 0.775V or 1.4V
• Input Impedance: 20k Ohms, 10k Ohms
• AC Line Voltage and Frequency Configurations: (+10%) 120V~60 Hz; 220V~50/60 Hz; 230-240V~50/60 Hz
• IEC Power Connector: 15A
• Stereo/parallel/bridge-mono mode
• User selectable input sensitivity - 0.775V and 1.4V
• Efficient forced-air cooling prevents excessive thermal buildup

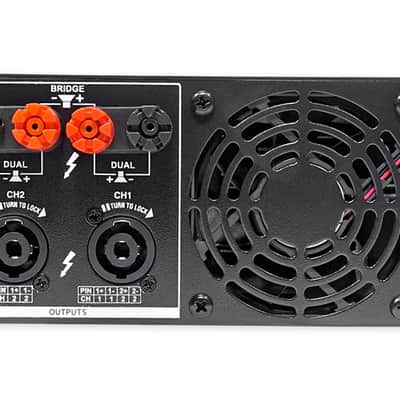

• Electronically balanced RCA & XLR inputs; binding post and Speakon  outputs
• Two level controls, power switch, power LED, and six LEDs which indicate signal presence, clip and fault for each channel
• Protection against shorts, no-load, on/off thumps and radio-frequency interference
• Product Dimensions: 19" x 3.5" 12.4" inches
• Product Weight: 25.1 Lbs.

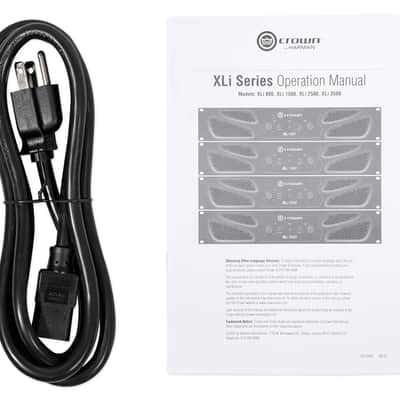

for the Owner's Manual
