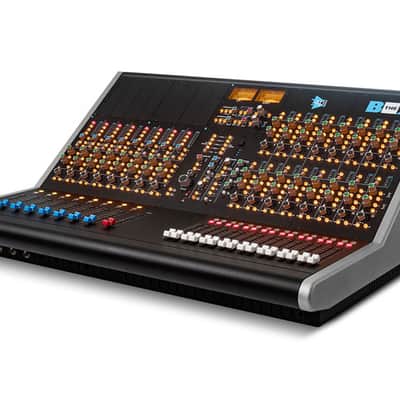

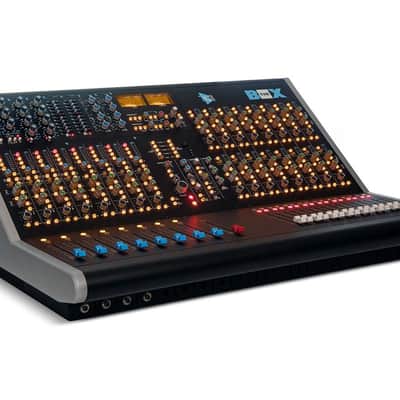

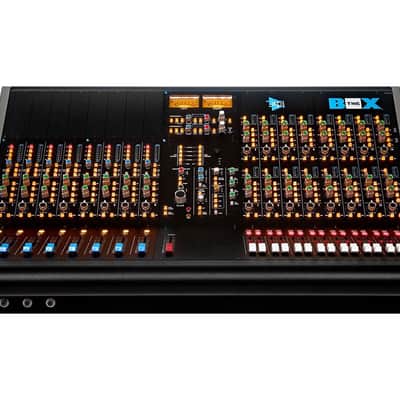

New API The Box 2 | 24 Channel Recording / Mixing Console with Patchbay & Cabling Package

  • Console: (8) input channels with Mic Preamp, Line Input and Hi Pass Filter
  • (8) 500 Series slots (1 per input channel)
  • Direct Out on Input Channels
  • On-Board Stereo Bus Compressor w/ ability to assign to program bus or input channels 1-4
  • Instrument Direct Inputs on channels 1-4
  • (16) summing channels (24 channels during mix)
  • 0dB bypass switch for each summing channel
  • 4-Segment LED Metering on each summing channel
  • Stereo program bus with master fader, insert, and external input
  • One (1) stereo and (2) mono auxiliary sends/buses
  • Stereo cue send/bus & headphone system
  • PFL, AFL, and Solo-In-Place solo modes with stereo solo bus
  • Full-featured monitor section that supports two stereo monitor systems
  • Talkback system

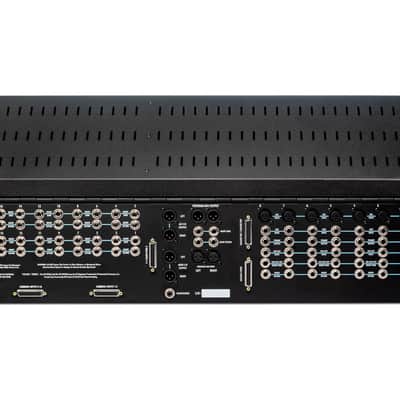

  • Comprehensive rear panel connections with balanced inputs and outputs
  • Integrated power supply
  • Patchbay & Cabling: Complete system design included
  • Patchbay and cable labeling included
  • (2) Audio Accessories Mini-Shorti patchbays
  • (48) 2-foot molded mini-quad Gold Plated TT patch cables
  • (16) DB25 Snakes with Mogami and Neutrik components
  • (1) Custom 4-Channel Wallbox for DI Inputs
  • (4) Made from Mogami 2549 XLR cables to connect 2 sets of monitors

API The Box 2 - 24 Channel Recording / Mixing Console
API successfully debuted THE BOX Console over five years ago, and its highly desirable large console sound in a compact footprint has become a favorite choice of audio pros worldwide — from commercial production facilities to home studio operations.

The newest version of the award-winning BOX Console provides even more options and flexibility for modern studio workflow. Offering a total of eight input channels and eight 500 Series slots, the updated BOX Console also features LED metering for each of its 24 summing channels. The new BOX Console provides the same comprehensive rear panel connections, full center section and monitoring as its predecessor, as well as the 0dB bypass switch on each summing channel — a feature so popular it was included in the design of API's new 1608-II and 2448 consoles.

THE BOX is API's small-format solution for any studio where space or budget is limited. Using the same circuitry and components as all other API consoles (including the Vision and Legacy AXS), THE BOX provides the signature analog sound and performance users have come to expect from API. Designed and optimized for the digital era, THE BOX handles all the functions needed for production not provided by most DAWs, including mic preamps, input signal processing, high-quality mix bus, cue sends with talkback, monitor control and more. Most importantly, THE BOX offers the legendary API sound in an efficient, cost-effective package.

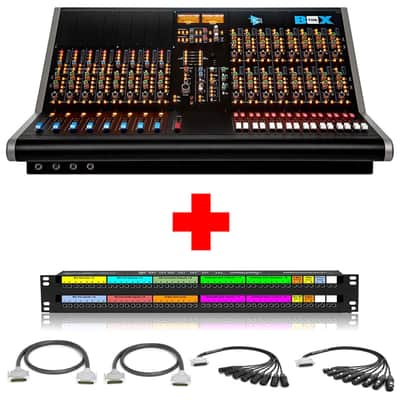

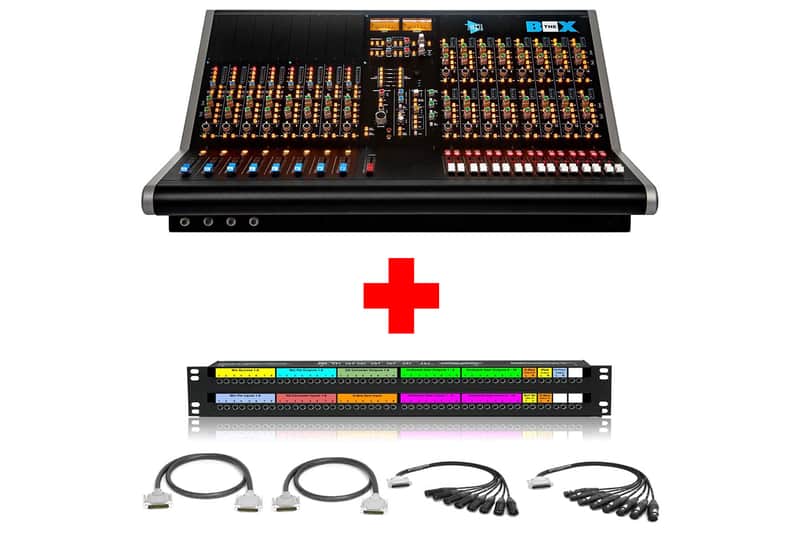

API The Box Cabling package includes the following items:

  • (2) 96 Point DB25 to TT Patchbays
  • (48) 2 Ft Molded Mini-Quad Gold Plated TT Patch Cables
  • (1) 15 Ft DB25 to XLR-Male for Mic Inputs 1-8
  • (1) 15 Ft DB25 to 1/4" TRS for Line Inputs 1-8
  • (1) 15 Ft DB25 to 1/4" TRS for Preamp Outputs 1-8
  • (1) 15 Ft DB25 to 1/4" TRS for 500 Series Slot Inputs 1-8
  • (1) 15 Ft DB25 to 1/4" TRS for 500 Series Slot Out/Insert Sends 1-8
  • (1) 15 Ft DB25 to 1/4" TRS for Insert Returns 1-8
  • (1) 15 Ft DB25 to DB25 for Direct Outs 1-8
  • (1) 15 Ft DB25 to DB25 for Aux/Master Cue Outputs 1-8
  • (2) 15 Ft DB25 to DB25 for Summing Inputs 1-16
  • (2) 15 Ft DB25 to 1/4" TRS for Sum Insert Sends 1-16
  • (2) 15 Ft DB25 to 1/4" TRS for Sum Insert Returns 1-16
  • (1) 15 Ft DB25 to DB25 for 2 Track Inputs
  • (1) 15 Ft DB25 to 1-2 XLR-Male for Program Bus Outputs, 3-6 1/4" TRS for Master Insert Send and Returns, 7-8 XLR-Female Program Bus Inputs
  • (1) 15Ft 4 Channel Wallbox 1/4" TS 1-4 for Direct In's 1-4 (wired unbalanced for instruments)
  • (4) 15 Ft Mogami 2549 XLR cables for Speaker Feeds Main Out, Alt Out
Pro Audio LA Patchbay and Cable Labeling Service:

We offer full labeling solutions for all our packages. As part of this package, we will do a workflow and system design consultation and label the cables and patchbays to your spec.

All snakes have a standard 18 Inch Fan-back (included in 15 ft total length)

Contact us if you'd like a longer fan. Premium finish cables available by selecting the Premium option.
