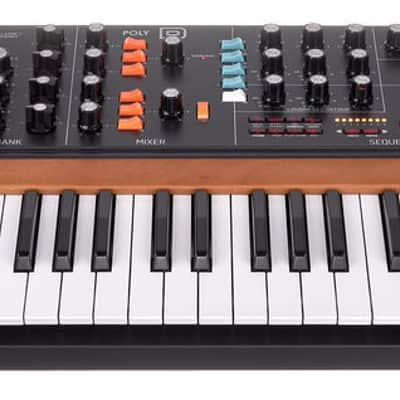

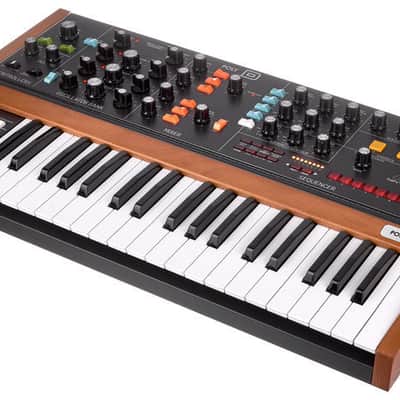

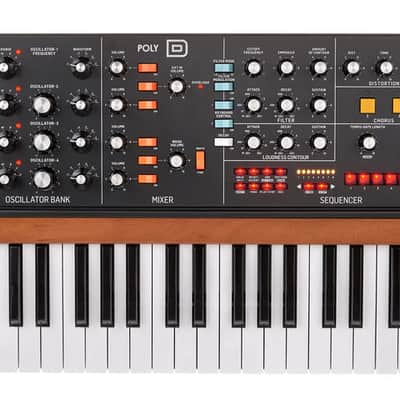

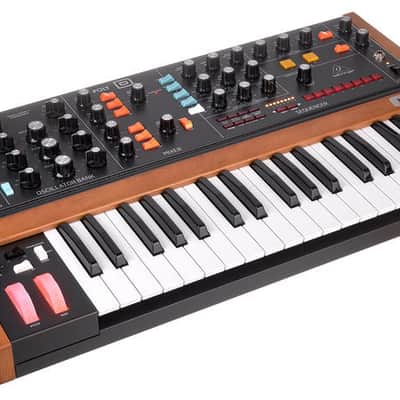

4-Voice Polyphonic Analogue Synthesizer

• 37 Full-size velocity-sensitive keys
• 4-Voice polyphonic design with mono-, unison- and polyphonic mode

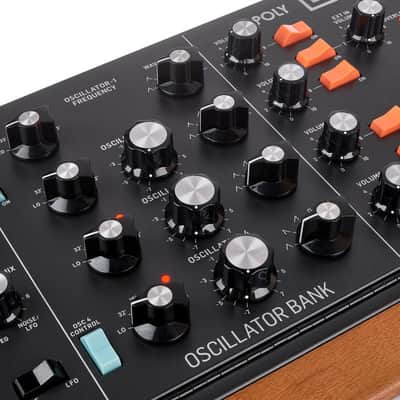

• 4 Analogue VCOs with triangular-, sawtooth- and pulse waveforms
• Noise generator with white and pink noise
• 24 dB Ladder filter with resonance
• Switchable low pass-/high-pass filter
• Analogue LFO with square-/ triangular waveforms
• 2 ADS envelope for VCF and VCA
• Analogue BBD stereo chorus
• Integrated distortion with tone control

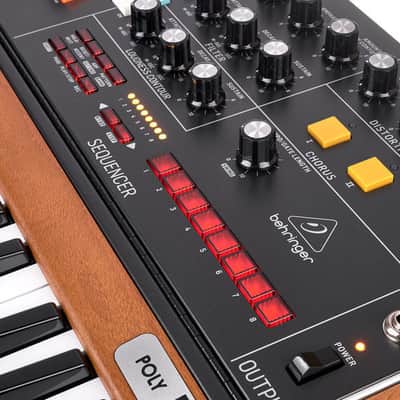

• 32-Step sequencer
• Arpeggiator

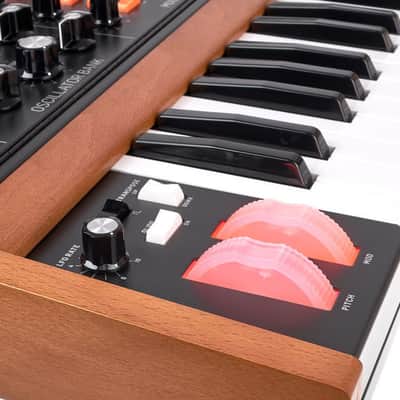

• Pitch- and modulation wheel
• Adjustable control panel and 84 controls for intuitive operation
• Includes an external power supply (12 V DC)

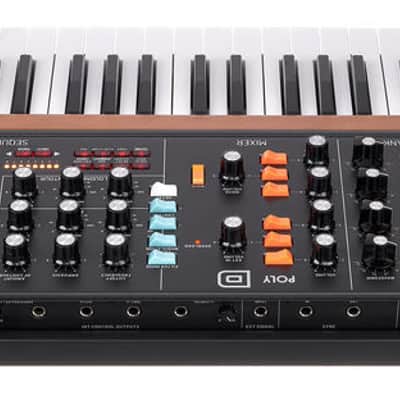

Connectors:

• Balanced stereo output: 2x 6.3 mm jack
• Adjustable stereo headphone output: 6.3 mm jack
• External audio input: 6.3 mm jack
• Inputs for V-trigger, modulation, pitch-CV, filter & loudness: 6.3 mm jack
• Sync In/Out: 6.3 mm jack
• Outputs for V-trigger, pitch, velocity and aftertouch: 6.3 mm jack
• MIDI In/Out/Thru
• USB-B port
• DImensions: 647 x 89 x 360 mm (W x H x D)
