Multiple MX822s may be chained for additional inputs using common 1/4-inch TRS cables. External effects processors can be linked in and mixed with independent level controls. A front panel headphone jack with separate level control allows independent monitoring.



Features
Eight stereo/mono input channels with individual level, pan and effects send controls
External effects loop with independent send and return controls
Front panel 1/4-inch stereo (TRS) headphone jack with amplifier and independent level control for
output monitoring
Switchable balanced microphone XLR or 1/4-inch inputs on Channel One
Switchable low noise +48V phantom power for microphone input
Separate green and red LED signal and clip indicators for each input channel
Six level left and right main output metering including clip indicators
Balanced left and right XLR main outputs
Multiple units may be chained together for additional inputs

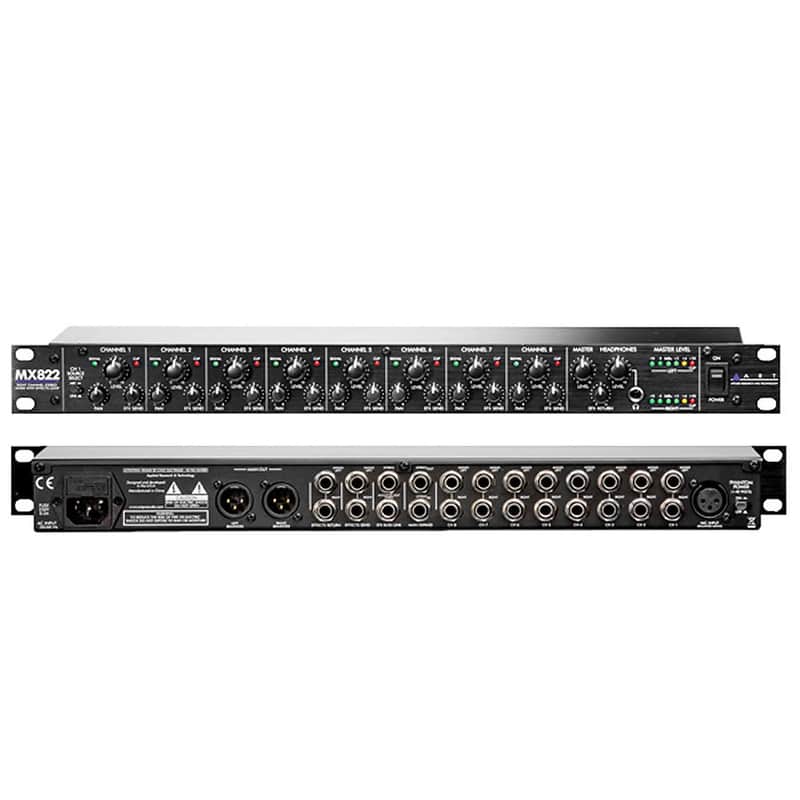

Rugged 1U rack mount steel case


Specifications
Input Connections - XLR-F balanced (MIC), 1/4" TRS unbalanced (Ch1-Ch8, Effects Return), 1/4" TRS stereo unbalanced (EFX Buss, Main Expand)
Output Connections - XLR-M balanced (Main), 1/4" TRS unbalanced (Effectss Send), 1/4" TRS stereo unbalanced (Monitor, Main Expand, Headphone)
Input Impedance - 1k Ohms (MIC), 5k Ohms (Ch1-Ch8)
Output Impedance - <1kOhms (Main, balanced), <25 Ohms (Headphone)
Total Harmonic Distortion <0.01% @ 1kHz
Signal to Noise Ratio> 90dB typical (Ref 0dBu)
Maximum Input Level -19dBu (MIC), +24dBu (Ch1-8)
Maximum Output Level +24dBu (Main), +18dBu (Monitor, Effects Send)
Maximum Gain +60dB (MIC), +14dB (Ch1-8)
Phantom Power Switch Selectable, +48V DC, filtered, current limited
Dimensions1.75"H x 19"W x 6"D (44.5mm x 483mm x 152mm)
Weight6.5 lbs (2.95 kg)
