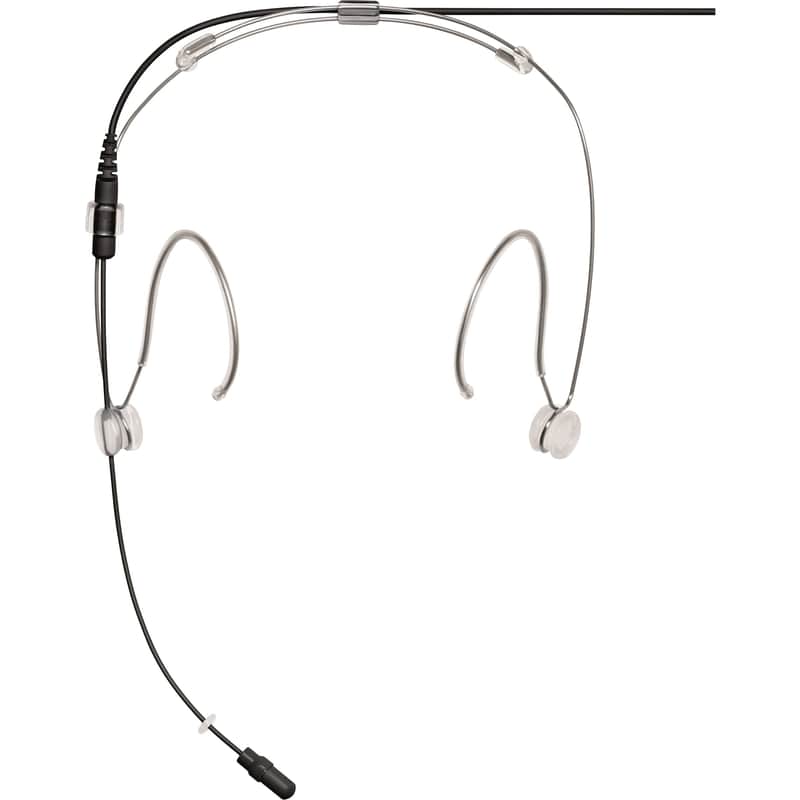

With an easy-to-wear headset frame, the DuraPlex DH5 features a neutral, full sound quality that lives up to the highest audio standards on any stage or broadcast studio.

The DH5 has been extensively tested to ensure an IP57 dust-resistant, waterproof rating. The exclusive 1.6 mm Shure Plex cable with won't kink, offers virtually zero "memory effect," is fully paintable, and simply lasts longer due to a dual redundant ground, which doubles as a secondary shield.

In the theater, onstage, or on television, you can depend on the DuraPlex DH5 headset microphone for consistent professional sound, durability, and longevity.

Features:
- 5 mm omnidirectional subminiature design on a silicone boom pivot system that can be placed on the left or right ear
- IP57 dust-resistant, waterproof rated
- Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
- Advanced 1.6 mm Shure Plex cable -- immune to memory effect and kinks
- Dual redundant ground in cable serves as secondary shield for unprecedented longevity
- Fully paintable with typical theater paints, pens, and polishes
- Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
- Available in two connector types: TA4F (mTQG) and LEMO
- Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, TQG
- Locking Collar (mTQG/TA4F SKUs only)

Specs
Microphone Capsule: MEMS
Polar Pattern: Omnidirectional
Frequency Response: 20 Hz to 20 kHz
Sensitivity: -42.5 dBV (7.5 mVRMS) @ 1 kHz, 31 dB SPL-A
Self-Noise: A-weighted, Equivalent Acoustical
Signal-to-Noise Ratio: 63.0 dB, 132.0 dB SPL
Maximum SPL: 1 kHz @ 1% THD, typical, 101.0 dB
Dynamic Range: Typical
Microphone Current:
Draw: 220 micro A, maximum
Bias Voltage:
Recommended Operating Voltage: 5 VDC
Housing: Molded ABS
Polarity:
MTQG: Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
LEMO: Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
Cable Diameter: 1.6 mm
Cable Length: 66.0 in (1.67 m)
Net Weight: 20 g (0.7 oz)
Capsule Dimensions: 14.5 mm x 5.2 mm (L x D)
Boom Length: 13.6 cm

Open Box (Like New): This is typically a customer return. This inventory includes all parts, components, and manuals (hard copy or downloadable). However, the packaging may be slightly compromised and thus it is not in absolutely perfect, unused condition like our new inventory.
