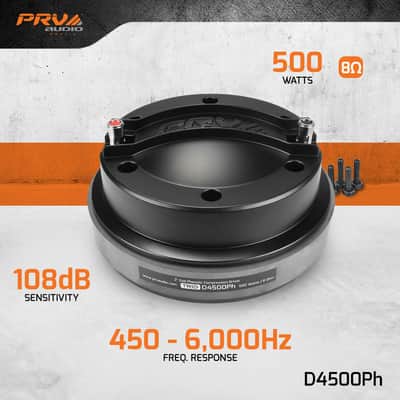

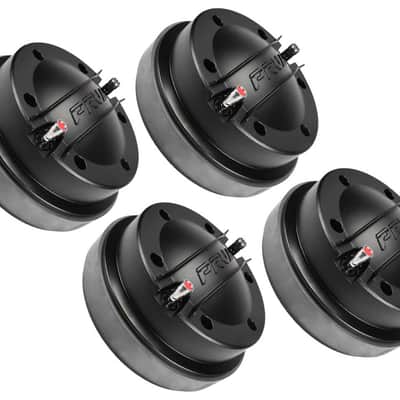

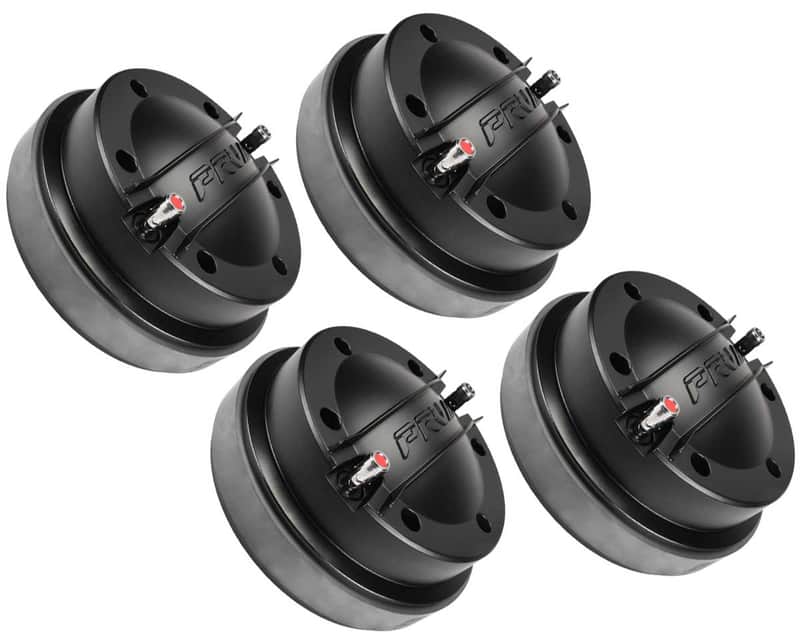

4x PRV Audio D4500Ph Trio 2″ Midrange Driver 500 Watts 4” Voice Coil 8-Ohms – TRIO Phenolic Diaphragm

PRV D4500Ph 2" EXIT PRO AUDIO PHENOLIC COMPRESSION DRIVER

Phenolic TRIO Compression Horn Driver
D4500Ph – 500 Watts 8 Ohms 4″ Voice Coil – Bolt-On 2″ Exit – Midrange Vocal Reproduction

The D4500Ph uses the latest Brazilian Phenolic technology TRIO by PRV designed for vocal reproduction. This 2” Exit phenolic compression driver features a 4″ voice coil and new and improved motor that is all about high output and low distortion vocal reproduction all the way down to 450 Hz!

Highlights

• 108 dB efficient driver is perfect for the highest output audio systems
• Large 4″ voice coil can handle up to 500 watts max musical power
• Rated AES Power Handling (RMS): 250 Watts

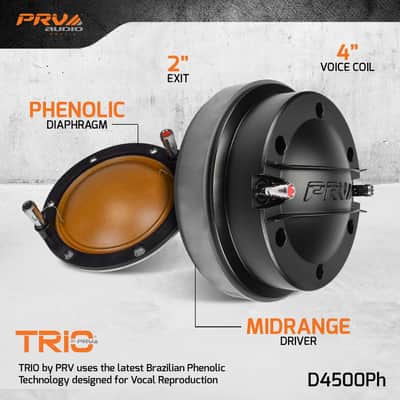

• Phenolic diaphragm delivers natural response throughout the vocal range
• Type Bolt-On – Nominal Impedance: 8 Ohms

Brazilian Phenolic Technology Designed For Vocal Reproduction. High temperature CCAW is used for the voice coil that is wound on a Kapton former to withstand high operating temperatures. The nearly indestructible Phenolic Diaphragm structure, designed for vocal reproduction, allows low midrange reproduction from 450 to 6000 Hz. This driver is recommended for midrange support in multi-way PA’s, stage monitors, side fills and high SPL car audio systems.

The D4500Ph is designed to ensure a quality sound and long lasting play in most any environment. Designed to be the smallest possible without sacrificing any performance in the motor for its 4″ voice coil, we have used a 7.86″ diameter ferrite motor, to keep the smallest size and weight on its category. Car audio SPL enthusiasts use this driver for vocal reinforcement on 3 way systems.

GENERAL SPECIFICATIONS

Exit Throat Diameter

• 2” (50 mm)

Nominal impedance

• 8 Ohms

Rated AES Power Handling (RMS)

• 250 Watts

Program Power

• 500 Watts

Sensitivity 2.83V at 1m

• 108 dB

Recommended Hi Pass Crossover** **For Full Power Handling

• 600 Hz** **12db Per Octave Crossover

Frequency Response at -10dB

• 450 – 6,000 Hz

Voice Coil Diameter

• 4”(101.6 mm)

Voice Coil Wire

• CCAW

Voice Coil Former Material

• Kapton

Diaphragm Material

• Phenolic resin

Flux Density

• 1.6 T

Magnet Material

• Ferrite

EXTRA INFO

Overall Diameter

• 8.66” (220 mm)

Overall Depth

• 3.66” (93 mm)

Mounting Bolt Circle

• M6x4 4” (102 mm)

Net Weight

• 19.20 lbs (8.2 kg)

Shipping Weight

• 21.16 lbs (8.5 kg)

Carton Dimensions W x L x H

• 5.71” x 5.71” x 3.93” (230 x 230 x 135 mm)
