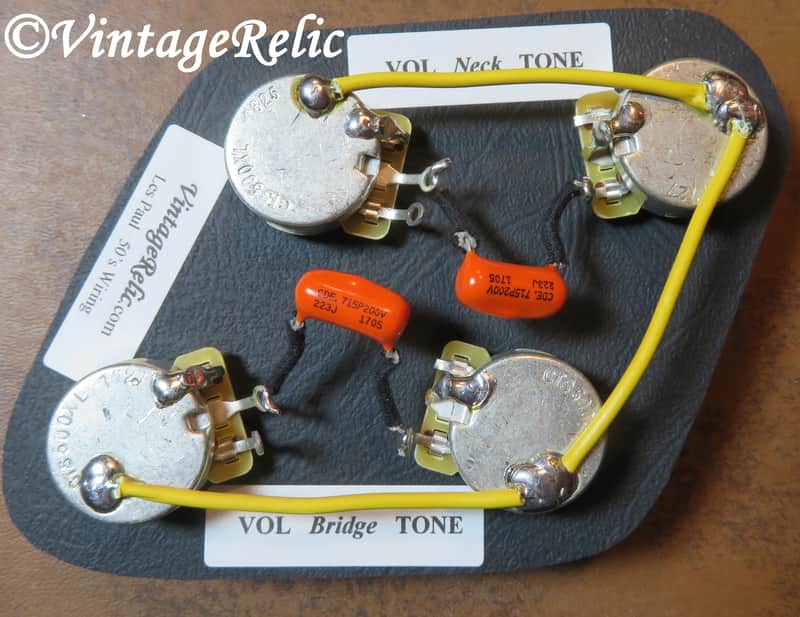

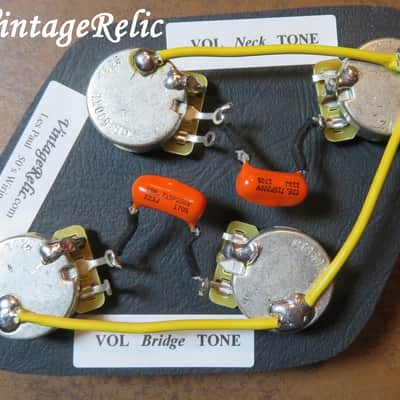

Wiring Kit Orange Drop .022uF Caps CTS 550k LONG shaft pots for Gibson Les Paul

"Vintage Relic pre-wired upgrade kit (Orange Drop caps) fits / compatible with Gibson Les Paul guitars. New. A very economical way to improve the tone of your LP! Direct replacement for your non-Historic Les Paul (Standard, Traditional, Classic, Studio, Deluxe, Custom, etc). Hear what you've been missing from your humbuckers or P-90s!

• 4 USA CTS 500k XL 10% Tolerance long shaft (brass) audio taper pots (2 volume, 2 tone). Top of the line CTS pots with tight tolerances and measuring ~550k. We do measure all pots and use higher values for the volume positions.

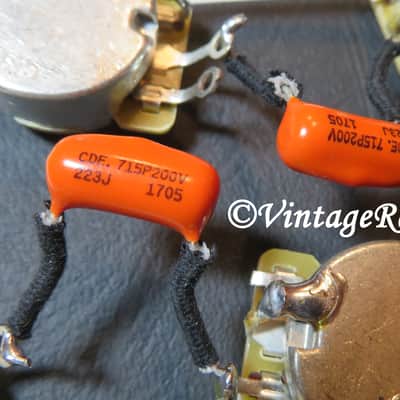

• 2 Orange Drop .022 uF model 715P tone capacitors. Very nice caps!

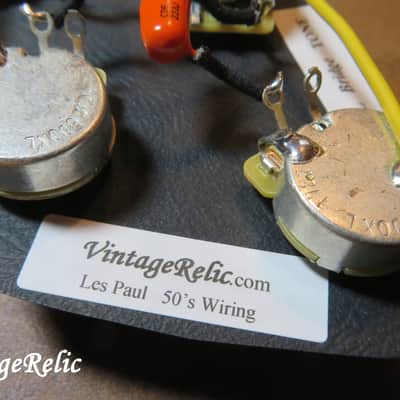

• 50's style wiring.

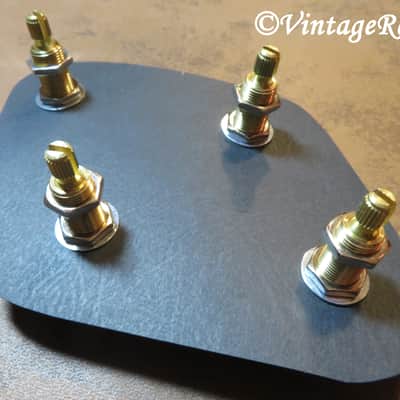

• Extra nut for each pot to properly set the height of the shaft on top of the body.


• Wiring diagram included.


• Ask if you need it wired for LEFT HANDED layout (note: we do not have reverse taper pots).


Please note: this kit is designed for Gibson Les Pauls that use long shaft pots (most all non-Historic Reissue Gibson Les Pauls made since 1977). If you have a Historic or vintage (pre-1978) Gibson, see our other auction. Also, CTS pots require a 3/8" hole (in the top of your guitar); most USA made guitars are drilled this way, however imported guitars often are not."

Above text and pictures copyright Vintage Relic. All rights reserved.

POT SPECS:
Can Size = 15/16 in. radius X 3/8 in. height
Bushing Threads = 3/8-32
Bushing Height = 3/4 in.
Shaft Type - split
Shaft Diameter = .238 in (6.3mm)
Spline Count = 24 (NOT metric)
Shaft Length - 3/8 in.
Hole size requirement = 3/8 in.
Value = ~550K Ohms
