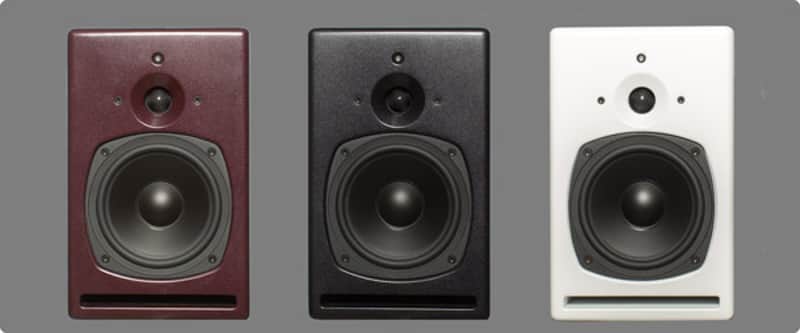

1 PSI Audio Active 14 M Broadcast Studio Monitor

PSI Audio Active 14 M Broadcast Studio Monitor Speaker

Shipping for this item takes 10 to 14 Days

For International shipping rates, please email your country, City & Postal Code.

Authorized PSI Audio Dealer and comes w/ FULL Warranty!
A14-M Broadcast Your faithful companion: small, robust, versatile “The Swiss army knife of any surround setup, small studio or OB van.”

“The A14-M is in the best sense, an inconspicuous near field monitor. Tonal balanced, high resolution detail, very good transient response and accurate
positioning make it the Swiss army knife of any surround setup, small studio or OB van environment.”
Professional Audio Magazin, Germany

Main Features Power: 70 + 30W
Frequency Range: 56Hz – 23kHz
SPL Max: 101dB 100% Analog – No DSP
Flat frequency response
Phase compensated for a better stereo image
individually calibrated
Typical listening distance: from 0.5m
5 years warranty
Handmade in Switzerland Technical Data

Power RMS:70 + 30WProgram Power:100WInput Impedance:Sym, 10k OhmsSensivity for 100 dB @ 1m:0.775 VSignal to Noise Ratio:96 dBAContinuous Max SPL@1m:101 dB (single)Input Overload:24 Vpp / 20.7 dBuProgram Max SPL@1m:112 dB (pair)Response at -6dB:56 - 23000 HzTolerances:±2.5 dB (65Hz - 19 kHz)Distortion THD:less than 1.8% (95Hz-20kHz)Phase tolerances:±45° (260Hz - 20kHz)Dispersion (P.N. 4 - 16 kHz) at -6 dB:100° x 60° (H x V)System:2 Way(s)Crossover frequency:3.6 kHzWoofer's dim. Ext. / Diaphragm:Ø147mm / Ø104mmTweeter's Diaphragm dim.:Ø25mmConnectors:1 x XLR F / 3PSignal input:1=GND, 2=(+), 3=(-)Material:MDFDimensions W x H x D mm:163 x 243 x 170Gross / Net Weight:5.6 / 4.9 kgVoltage:115/230V (50-60Hz)Consumption Standby-Quiescent-Max:1.4 - 6 - 100WMean / Max Humidity:less than 75% / less than 90%External Temperature:5 - 40°C
