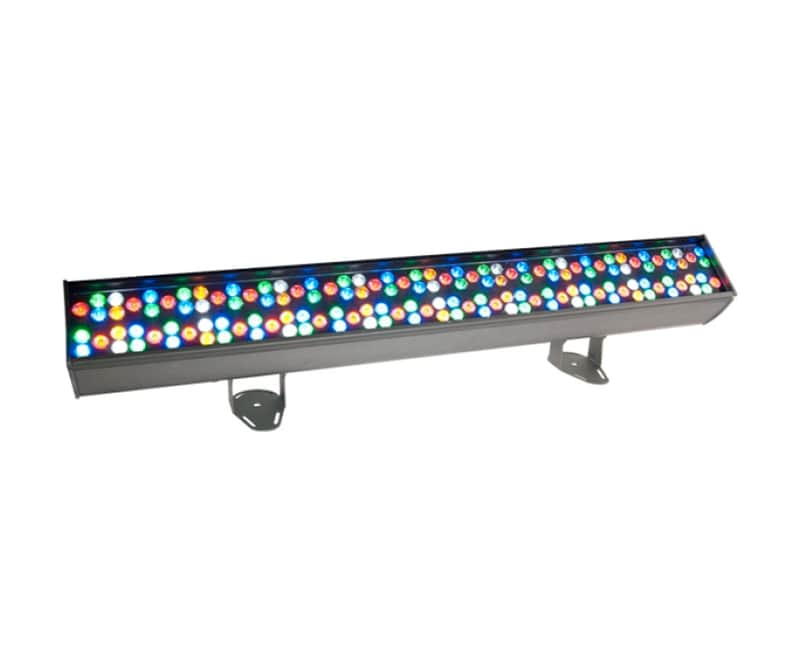

Chauvet COLORado Batten 144 Tour

COLORado Batten 144 Tour is a batten-style wash with 144 calibrated red, green, blue, white and amber LEDs. The incorporation of white and amber LEDs affords superb color rendering and a vast palette from soft pastels to saturated hues. Five selectable dimming curves provide smooth fades at the bottom end. Dual 15- and 30-degree optics help cover long throws smoothly and evenly. This outstanding linear fixture can serve as an excellent cyc light. Thanks to versatile trunnions, floor or truss mounting is a breeze.

Features

• Built-in auto and custom programs recalled via DMX and Master/Slave
• RGBWA color mixing via DMX or manually
• Color temperature presets, from 2800K to 10000K
• 3-pin and 5-pin DMX input/output connections
• Selectable, smooth dimming curves for programming versatility
• LED display with password protection
• Neutrik® powerCON® power input/output connections
• Simple and complex DMX channel profiles for programming versatility
• Adjustable feet double as hanging brackets

Specifications

• DMX Channels : 3, 4, 5, 6, 7, 9, 12 or 15
• Data Connectors : 3- and 5-pin XLR
• Light Source : 144 LEDs (36 red, 36 green, 36 blue, 18 white, 18 amber) 1 W, (350 mA), 50,000 hours life expectancy
• Shutter/Strobe : Electronic
• Strobe Rate : 0 to 20 Hz
• Stand Alone Color Mixing : Yes
• Color Temperature Presets : Yes
• Installed Optics : 15° and 30°
• Beam Angle : 17.3°
• Field Angle : 36.2°
• Dimming Modes : 5
• Illuminance : 2,075 lux @ 5 m
• Color Temperature (range) : 2800 to 10000 K
• IP Rating : IP20, dry location
• Cable Length : 5 ft (1.5 m)
• Power Connection : Edison plug to Neutrik® powerCON®
• Power Input : Neutrik® powerCON®
• Power Output : Neutrik® powerCON®
• Power Linking : 3 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
• Input Voltage : 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current : 171 W, 1.388 A @ 120 V, 60 Hz
• Power and Current : 160 W, 0.798 A @ 208 V, 60 Hz
• Power and Current : 158 W, 0.710 A @ 230 V, 50 Hz
• Weight : 19.60 lb (8.89 kg)
• Dimensions : 39.3 x 5.2 x 8.2 in (998 x 132 x 209 mm)
• Approvals : CE, ETLC
