Hairball Audio the Black Face Rev D -1176-FET Compressor with Active Link

These are BUILD TO ORDER at the moment, Sorry!. Allow 2 weeks before delivery once you purchase.

This is a brand new hand-wired Hairball 1176 - FET - REV D compressor with Active Link, Orange drop optional but not included.

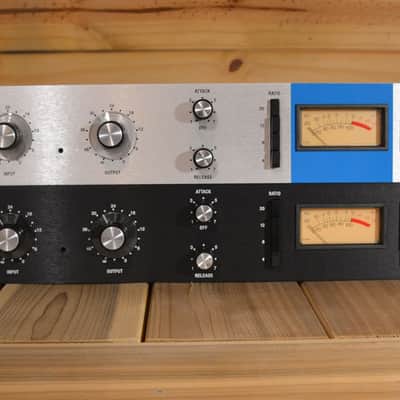

This revision covers the REV B thru E units. Most current reissues are based on this revision. Revisions C-E had a black front panel while the Rev B retained the silver and blue stripe panel. Changes were made to the stage and line amps so a bipolar transistor was used as the first active component. Low noise, or “LN” circuitry, was added to this and all future revisions. Like the Revision A, the input uses an O-12 transformer and the signal is attenuated at the input with a 600Ω T-pad. The output is class A, utilizing a 5002 output transformer. This is widely considered to be the most classic FET compressor sound.

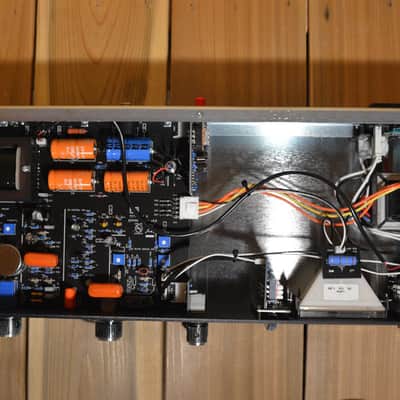

Revision D (v1.11) PCBs designed by MNATS

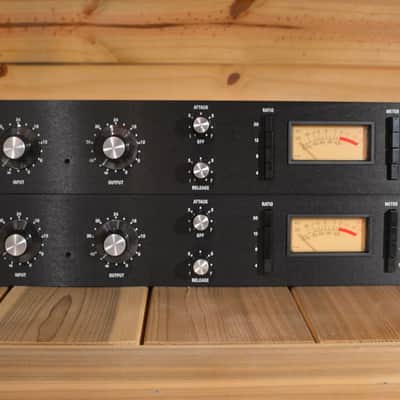

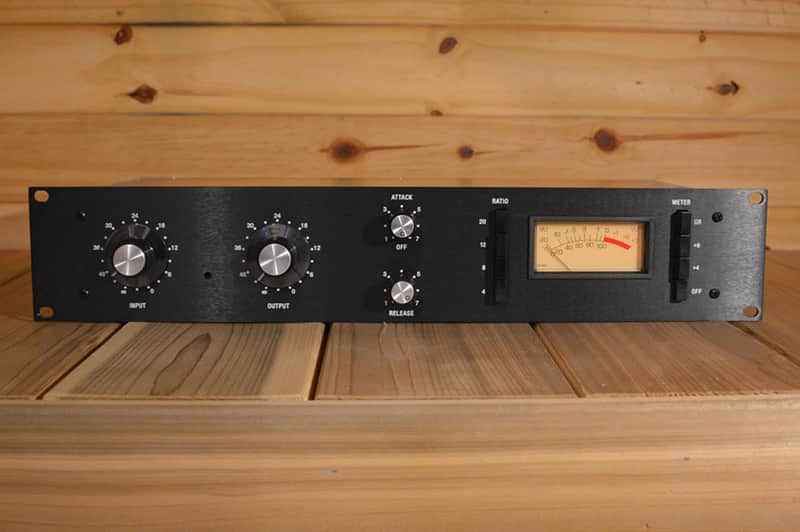

Black anodized front panel made in Seattle, USA
Custom 18 gauge steel zinc plated enclosure made in Seattle, USA
Custom Ed Anderson O-12 reproduction input transformer made in the USA
Custom Ed Anderson 5002 reproduction output transformer made in the USA
Custom Ed Anderson 11754 reproduction power transformer made in the USA
Custom BI Technologies T-Pad input attenuator
Interlocking push button switches with “All Buttons In” mode
Fully discrete audio path including capacitors selected by ear from Cornell Dubilier (Orange Drop), Kemet, Nichicon, Panasonic, Vishay, United Chemi-Con and Elna
Bourns trim pots
Neutrik XLR connectors
JST connectors and pre-assembled wire harnesses
120/240 voltage select switch
1% metal film resistors
Matched FETs
Authentic control knobs

Fully built to perfection in Canada with a 1 year warranty.

These can be also build to order, please visit my website for that, bywaudio.com
