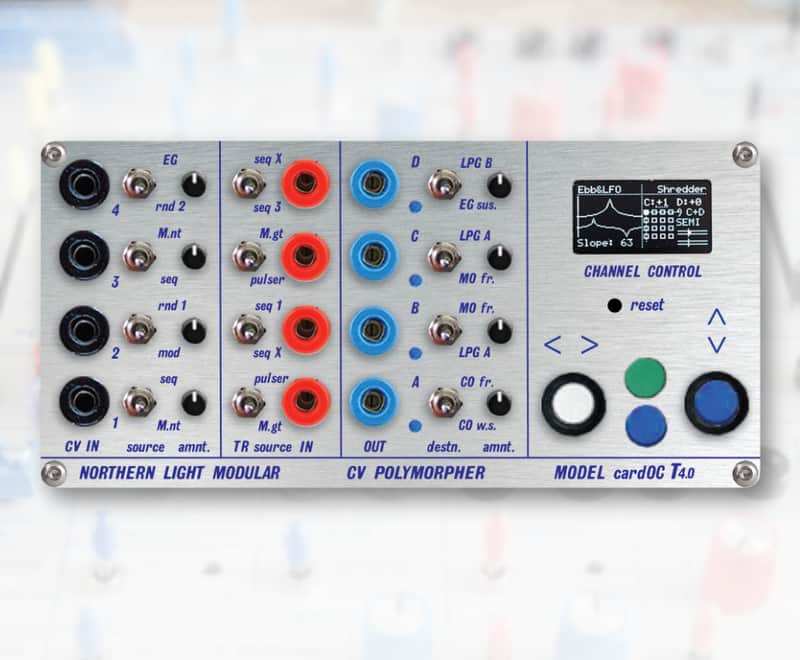

Northern Light Modular - CardOC T4.0 - CV Polymorpher [Buchla 208 Compatible]

The all new Teensy 4.0 powered cardOC

Compatible with all 208 models, utilizing the full power of the PHAZERVILLE suite

cardOC T4.0 features :

• 4 channel, dual applet control voltage processor
• Horizontal mounting style to accommodate the slanted Command boat.
• Individual pitch control directly through the bus for MO and CO.
• 24 switchable modulation sources and targets.
• Easel command specific MIDI inputs for pitch and trigger inputs for both channels.
• Phazerville powered multi applet software suite.
• Buffered inputs – allowing to use both the card bus CV and external CV by adding the values into one combined control voltage.
• Buffered outputs, allowing the card to drive multiple CV targets without losing pitch tracking.

New Crimes

• Up to 16 Presets in the new Hemisphere Config
• Modal-editing style cursor navigation (and other usability tweaks)
• Expanded internal Clock Setup
• New Apps: Scenes and Calibr8or

New Applets:

• Pigeons – Fibonacci melodies
• DivSeq – a sequence of clock dividers
• PolyDiv – parallel clock dividers, like the Subharmonicon
• ResetClk – sequencing helper for DFAM
• DualTM – two 32-bit shift registers
• EbbAndLfo  – mini implementation of MI Tides, with v/oct tracking
• EuclidX – AnnularFusion makeover, now includes padding, configurable CV input modulation –
• Sequence5 -> SequenceX (8 steps max)
