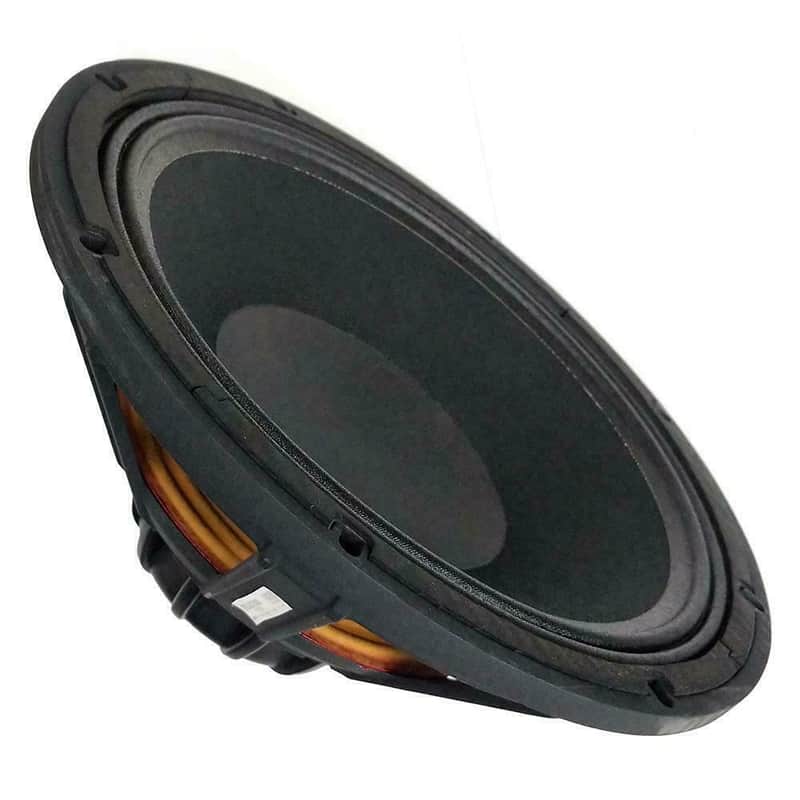

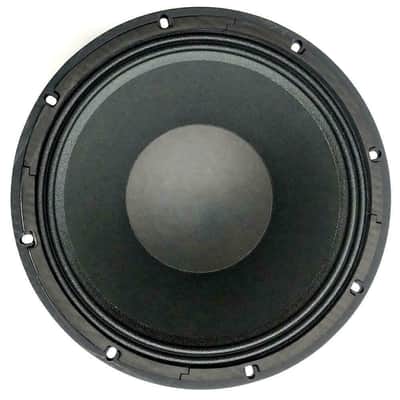

Celestion NTR12-3018D 12" Neodymium Woofer Speaker Driver 700 Watt 8 ohm

Celestion NTR12-3018D 12" Neodymium Woofer 8 Ohm

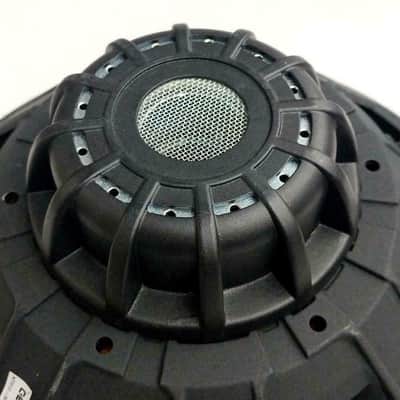

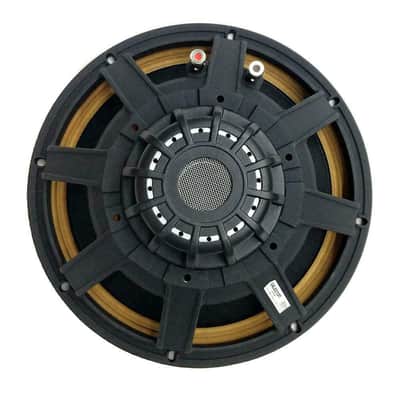

The neodymium NTR12-3018D 12", from Celestion, incorporates a 3" high-temperature, inside/outside, copper-voice coil to effectively dissipates heat, and prohibit sensitivity loss through thermal compression. Intelligent heat management built into the motor and chassis assembly for reduced thermal compression. An M-rolled cloth surround for progressive excursion control, generating a smooth frequency response.

General Specifications

• Nominal diameter 305mm/12in

• Power rating 350Wrms

• Continuous power rating 700W

• Nominal impedance 8Ω

• Sensitivity 98dB

• Frequency range 50-4,000Hz

• Voice coil diameter 75mm/3in

• Chassis type Cast aluminium

• Magnet type Neodymium

• Coil material Round copper

• Former material Glass fibre

• Cone material Kevlar loaded paper

• Surround material Cloth sealed

• Suspension Single

• Xmax 4mm/016in

• Gap depth 8mm/0.32in

• Voice coil winding width 16mm/0.63in

Small Signal Parameters

• D 0.26m/10.24in

• Fs 58.8Hz

• Mms 58.08g/2.05oz

• Qms 3.391

• Qes 0.325

• Qts 0.296

• Mmd 50.28g/1.78oz

• Re 5.99Ω

• Vas 50.39lt/1.78ft3

• BI 19.9Tm

• Cms 0.13mm/N

• Rms 6.32kg/s

• Le (at 1kHz) 0.8mH

Mounting Information

• Overall diameter 318mm/12.5in

• Overall depth 137mm/5.39in

• Cut-out diameter 286mm/11.26in

• Mounting slot dimensions 9.5mm x 6.5mm/0.37in x 0.26in

• Number of mounting slots 8

• Mounting slot PCD range 298-304mm/11.7-12.0in

• Unit weight 2.6kg/5.7lb
