RELIC Stratocaster Frankenstrat SET Eddie Van Halen EVH AGED Frankenstein Super Strat Q Pickups

Inspired by Mr. Van Halen´s 1982 "Frankenstrat" guitar.

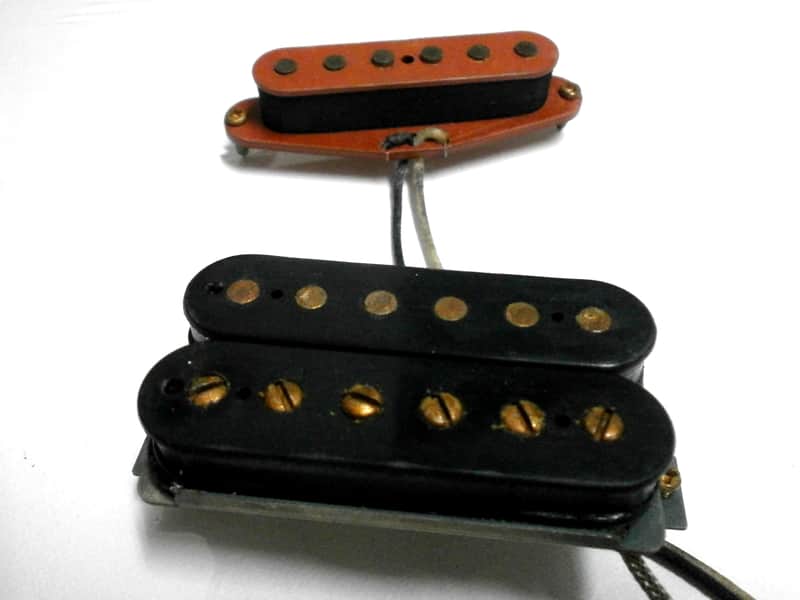

RELIC / AGED SET - Humbucker bridge and Strat sized neck.

Eddies`s humbucker bridge pickup was mounted directly to the wood/body of the guitar. To install this pickup to the wood you will have to re-drill the mounting holes on the baseplate so they can accept wood screws. We can do that for you - you can leave a note at the checkout page or send us a message.

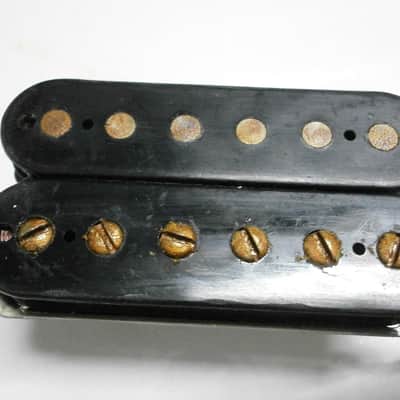

Vintage correct PAF style humbucker pickup in the bridge position:
- black BUTYRATE bobbins with 49,2mm spacing. The pickup has to be installed at a slight angle to compensate for the differing string spacings of the Fender tremolo and the PAF spaced humbucker(49,2mm).

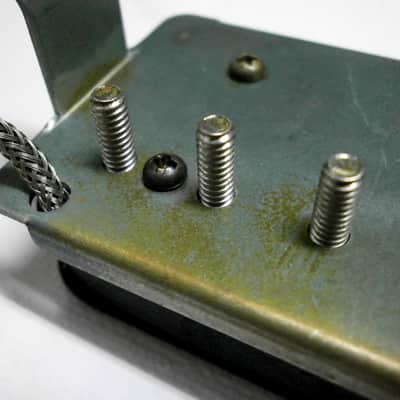

- LONG legs on the nickel silver base plate. These "legs" are too long to fit in a regular strat bridge pickup cavity. Total height of this pickup with LONG legs is approx. 27mm.
If you want SHORT LEGS and/or F-SPACED bridge pickup send us a message and we will work it out.
Each pickup is built to order.
- AWG42 PLAIN ENAMEL WIRE ( HOT / overwound - 8,5kOhm @ 20°C)

- rough cast AlNiCo 2 magnet bar
- maple spacer
- machined humbucker bar
- Nickel plated slugs and screws
- vintage style braided output wire



"Eddie installed a red single-coil pickup in the neck position, but it wasn’t connected to the circuit."

Stratocaster sized neck pickup:
 - 13kOhm DC resistance @20°C

- hand wound Elektrisola AWG 43 gauge wire

- red vulcanized fiber bobbin flatwork with brass eyelets

- Alnico 5 polepieces


- cloth covered push-back wire, wax potted(paraffin and bee`s wax).

- the coil is protected with black cloth pickup tape.

Scatter wound, fully charged magnets.
