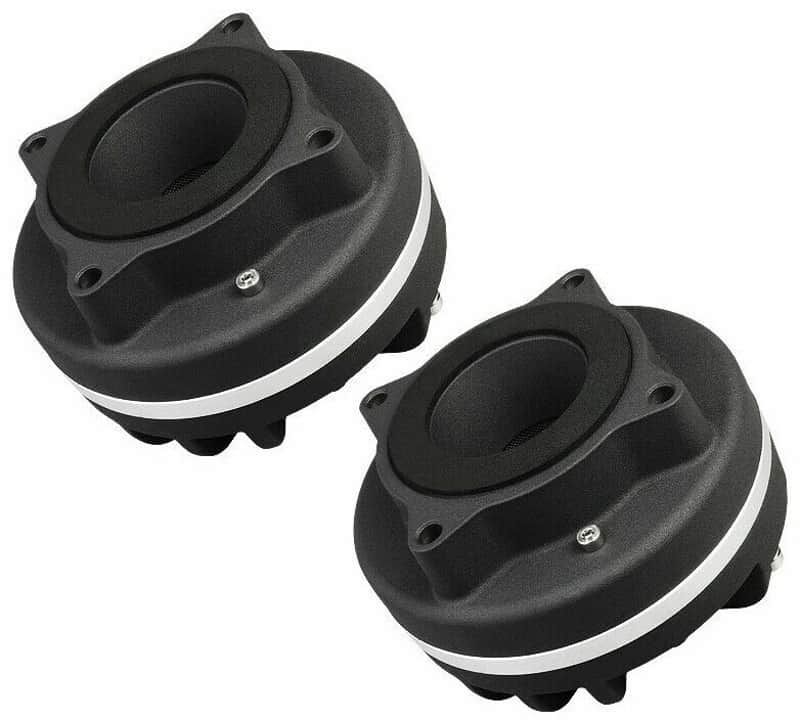

2x FAITAL PRO HF2000 2" PRO Neodymium Compression Horn Driver 200 Watts 8-Ohm

FAITAL PRO HF2000 2" PRO Neodymium Driver 200 Watts 8-Ohm

Technical Parameters

Nominal Impedance

• 8 Ohm

Minimum Impedance

• 7 Ohm

AES Power above 0.9 kHz (1)

• 100 W

AES Power above 0.65 kHz

• 50 W

Maximum Power above 0.9 kHz (2)

• 200 W

Maximum Power above 0.65 kHz

• 100 W

Minimum Crossover Frequency (3)

• 0.9 kHz

Sensitivity (1W/1m) (4)

• 110 dB

Frequency Range

• 0.5÷18 kHz

Voice Coil Diameter

• 74 mm (2.91 in)

Winding Material

• Al

Former Material

• Kapton

Diaphragm Material

• Titanium

Diaphragm Shape

• Dome

Winding Depth

• 2.35 mm (0.09 in)

Magnetic Gap Depth

• 3.2 mm (0.13 in)

Flux Density

• 1.95 T

Magnet

• Neodymium Ring

Re

• 5.6 Ohm

Phase Plug Design

• Annular

Exit Angle (5)

• 30° Conical

NET Air Volume filled by HF Driver

• 0.6 dm^3 (0.021 ft^3)

Nominal Specifications

Throat Diameter

• 50.8 mm (2 in)

Overall Diameter

• 130.5 mm (5.14 in)

90° Mounting Holes Diameter (4xM6)

• 102 mm (4.02 in)

Depth

• 83.5 mm (3.29 in)

Net Weight

• 2.75 Kg (6.1 lb)

Shipping Box
(Single carton box)

• 185 x 170 x 122 mm
  (7.3 x 6.7 x 4.8 in)

Shipping Weight

• 2.9 Kg (6.4 lb)

Part Number (P/N)

Push Terminals - 8 Ohm Version

• 00744218
