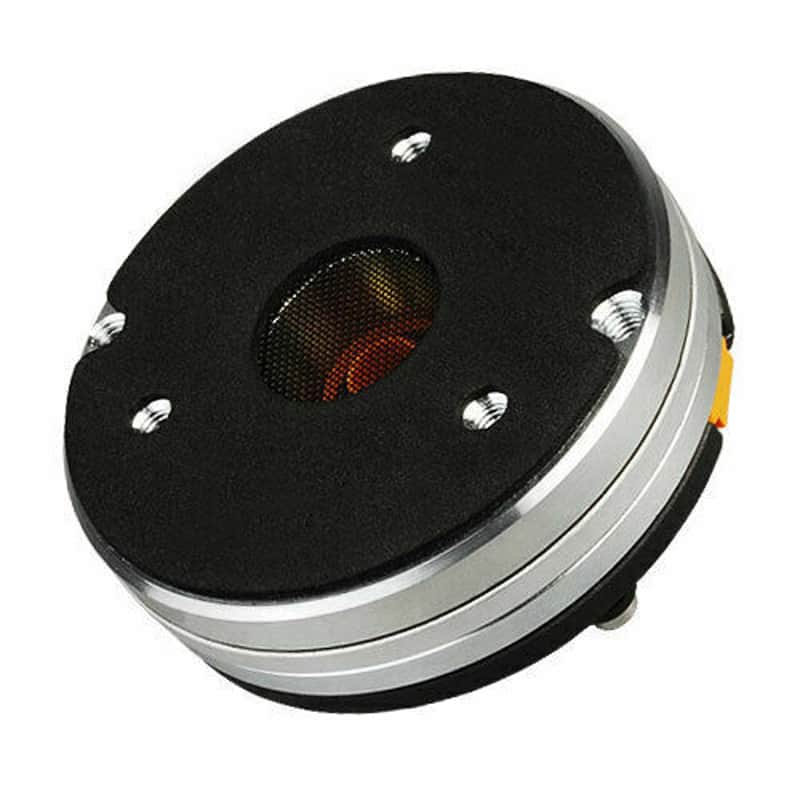

FAITAL PRO HF108 1" Neodymium Compression Horn Driver 120 Watts 8-Ohm 109 dB

FAITAL PRO HF108 1" Neodymium PRO DRIVER 120 Watts 8-Ohm

Technical Parameters

Nominal Impedance

• 8 Ohm

Minimum Impedance

• 6.8 Ohm

AES Power Handling (1)

• 60 W

Maximum Power Handling (2)

• 120 W

Minimum Crossover Frequency (3)

• 1.3 kHz

Sensitivity (1W/1m) (4)

• 109 dB

Frequency Range

• 1÷20 kHz

Voice Coil Diameter

• 44 mm (1.73 in)

Winding Material

• Al

Former Material

• Kapton

Diaphragm Material

• Ketone Polymer

Diaphragm Shape

• Dome

Winding Depth

• 2.3 mm (0.09 in)

Magnetic Gap Depth

• 2.85 mm (0.11 in)

Flux Density

• 2.1 T

Magnet

• Neodymium Ring

Re

• 5.8 Ohm

Phase Plug Design

• Annular

Exit Angle (5)

• 31° Conical

NET Air Volume filled by HF Driver

• 0.195 dm^3 (0.007 ft^3)

Nominal Specifications

Throat Diameter

• 25.4 mm (1 in)

Overall Diameter

• 87 mm (3.43 in)

180° Mounting Holes Diameter (2xM5)

• 76 mm (2.99 in)

Depth

• 41 mm (1.61 in)

Net Weight

• 800 g (1.8 lb)

Shipping Box
(Single carton box)

• 147 x 130 x 82 mm
  (5.8 x 5.1 x 3.2 in)

Shipping Weight

• 1.2 kg (2.6 lb)

Part Number (P/N)

Faston Terminals - 8 Ohm Version

• 00444174
