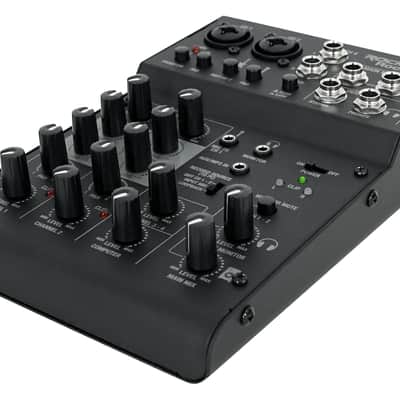

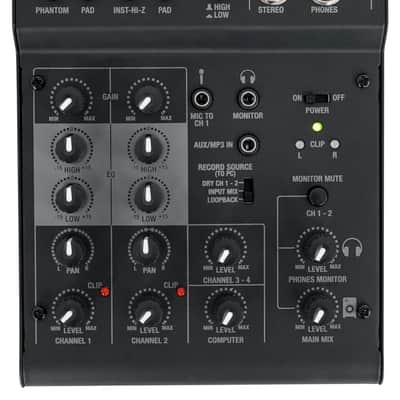

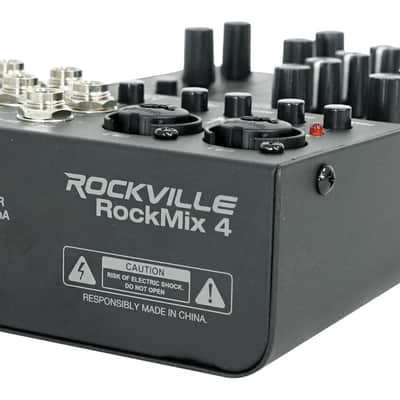

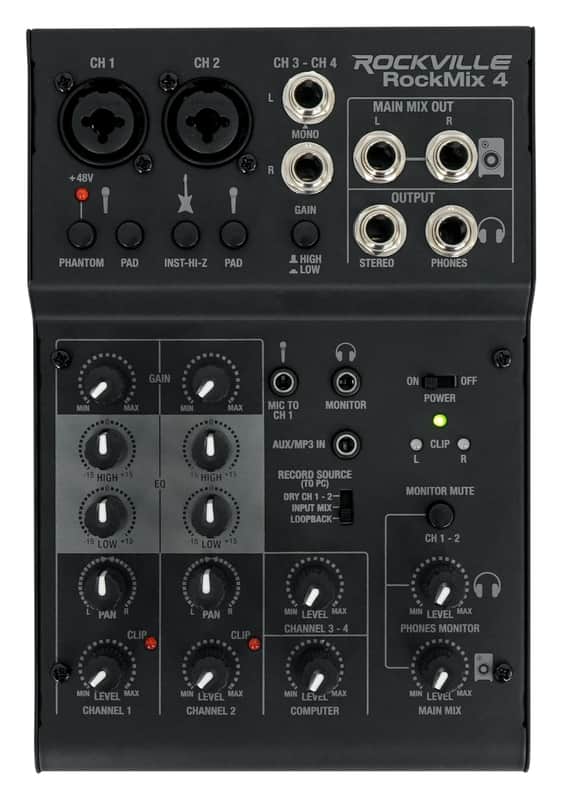

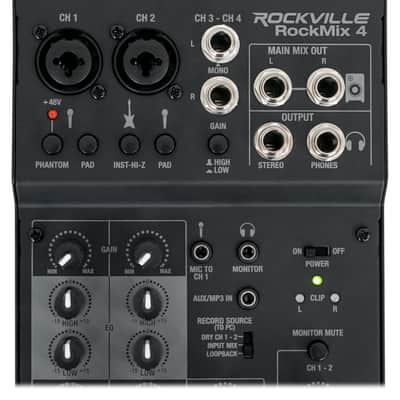

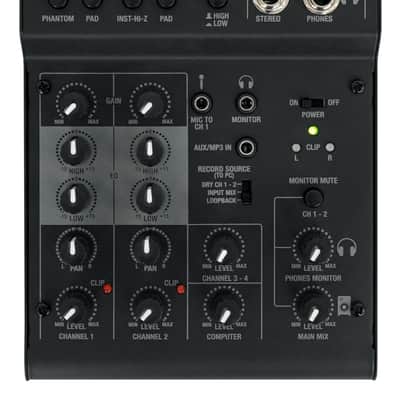

Rockville RockMix 4 Channel Mic/Instrument Pro Recording Mixer+USB Interface/EQ

All About Your ROCKMIX 4:

How To Set Up Your ROCKMIX 4:

What's In The Box:

• Mixer with USB recording interface
• USB Cable
• USB Power Adapter
• 4 Non-slip Rubber Feet Pads
• Owner manual and warranty card

Recommended Applications:

• Live Stream/recording/podcasting/broadcasting, zoom/conference meetings, etc
• 2 person live stream or recording with (2) mics and a stereo instrument
• 3 person band with a singer, a guitar player, and a keyboard player

Features:

• Rockville RockMix 4 Channel Mic+Instrument Pro Recording Mixer with USB Recording Interface
• Bit Depth: 16 bit
• Sample Rate: 48kHz
• Assignable USB Record Source
• Switchable +48v Phantom Power on channels 1 & 2 for use with condenser microphones
• Channel 1 and Channel 2: XLR and ¼" TRS combo input jacks
• Channel 2: mic/instrument level switchable allowing you to connect a mic, instrument, or any other audio device
• Stereo channel 3 and 4 have ¼" inputs (balanced or unbalanced)
• CH3 & CH4 with GAIN switch and LEVEL control
• Independent Level Controls for Main and Headphone/Monitor Outputs
• Integrated Plug-and-Play USB Audio Interface for Mac & PC
• Operates on USB BUS Power or 5V DC External Power Supply (Included)
• 3.5mm aux input jack for sound effects or background music
• Low power consumption means you can power the mixer from the USB of your laptop or by plugging it into an outlet or through a standard 5V powerbank
• Super mini 4-channel mixing console designed for home studio recordings or live broadcast streaming
• (2) headphone outputs (¼" and 3.5mm)
• ¼-inch TRS Stereo Output
• ¼" Stereo Monitor Output
• Additional 3.5mm mic input allow you to connect an additional microphone to channel 1
• Channels 1 and 2 each have a 2-band EQ and Pan controls and gain controls
• TO PC slide switch allows you to select which channels get sent to your computer (DRY CH1-2/ INPUT MIX/ LOOPBACK)
• Clip LED indicators
• Monitor mute button
• Monitor/headphone level control knob
• Main mix level control knob
• No external drivers are needed for mac or PC

Specifications:

Input Connections:

• XLR & ¼-inch Balanced Combi-jack (CH 1 & CH2)
• ¼-inch TRS Balanced (CH3 & CH4)
• 1/8-inch TRS Aux/MP3, 1/8-inch Headset Mic

Output Connections:

• ¼-inch TRS Balanced Main Mix Outputs
• ¼-inch TRS Stereo Output & Monitor Outputs
• 1/8th-inch Headset Output
• CH1 XLR: 1.5mV/2.2k ohm
• CH2 XLR: 2.5mV/2.2k ohm
• CH1 Jack: 10mV/12k ohm(line)
• CH2 Jack: 15mV/240k ohm
• CH3/4: 550mV/22Kohm
• Signal to Noise Ratio: > 90dB Typical (Ref 0dBu)
• Maximum Input Level: +8dBu (Mic), +16dBu (1/4-inch Input)
• Maximum Output Level: +15dBu Main Mix Outputs
• Maximum Gain >55dB (Mic), >37dB (Instrument), 5dB (CH3 & CH4)
• USB Computer Interface USB Class Compliant plug-and-play Mac / PC Interface
• AUX IN: 280mV/10Kohm
• Output Level: main mix out--max.6.5V, stereo out-- 1.0V, phone/monitor out-- max. 6.5V
• Frequency Range: 10-33000Hz, +/-3dB
• THD: <= 0.05%
• Low Range: ±15dB/80Hz
• High Range: ±15dB/12kHz
• Headphone: Impedance: >=8 ohm
• Phantom Power: +48V
• Power Supply: USB 5V 500mA  Via USB or 5VDC @ 500mA
• Operating System: Windows 2000/XP/7/Vista or higher; Mac OS 9.1/ OS X or higher
• Item Size: 190*130 *47mm / 7.48 * 5.11 * 1.85in
• Item Weight: 716g / 1.58lbs
• Package Size: 24 * 17.5 * 10cm / 9.4 * 6.9 * 3.9in
• Package Weight: 1015g / 2.24lbs
