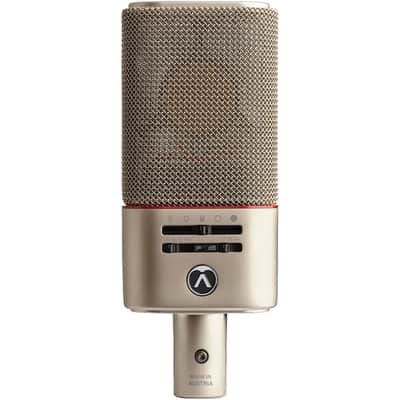

The OC818 Multi-Pattern Microphone is Engineered and manufactured in Austria, and is their premier, professional, large diaphragm microphone. Its high sensitivity, low self-noise and ability to handle everything from a whisper to extreme SPLs make it the most advanced microphone for studio, broadcast and live applications. As the unique ceramic capsule design is so consistent, any OC818 is match-paired with any other OC818, and when in cardioid mode, it can also be match-paired with any , its affordable, smaller sibling.

• Handmade CKR12 ceramic capsule
• Multiple polar patterns
• Microprocessor control of polarisation voltages

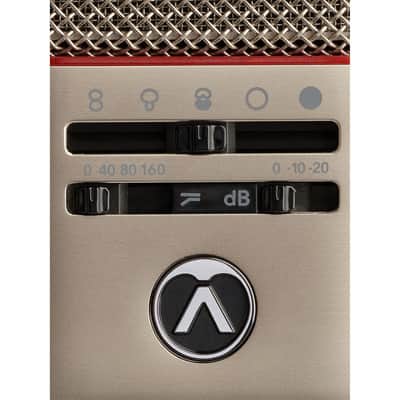

• Two different analogue high-pass filters with three settings
• Two different types of analogue pads
• Dual outputs
• Optional remote control of OC818 via smart device
• Made in Austria

• Directional characteristics: figure-8, supercardioid, cardioid, omnidirectional & custom programmable
• Frequency range: 20 Hz - 20 kHz
• Sensitivity (all directions): 13mV/Pa
• Equivalent noise level: 9 dB SPL (A)
• Max SPL: 148 dB SPL (158 dB SPL)
• Switchable pad: -10 dB, -20 dB
• Analog Low Cut filter: 40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (1st order down to 80Hz, 2nd order below)
• Impedance: 275 Ω (symmetrical)
• Load impedance: > 1 kΩ
• Supply voltage: 48 V (< 4mA, typical 2.1mA)
• Main Connector: XLR 3 pin
• Connector for back membrane or remote: Mini XLR 5 pin

• OC818 microphone

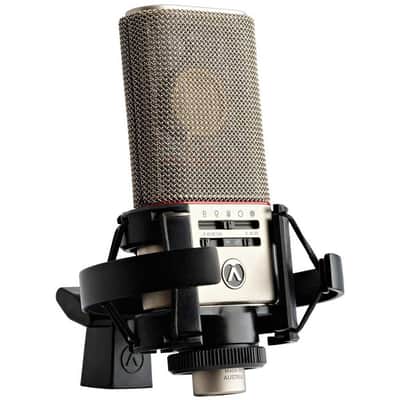

• OCS Spider Mount Suspension
• OCW8 Foam Windshield
• OCH8 Mic Clip
• OCC8 Mini XLR Cable + Cable clip
• Protective Carry Case
• Two Year Warranty
