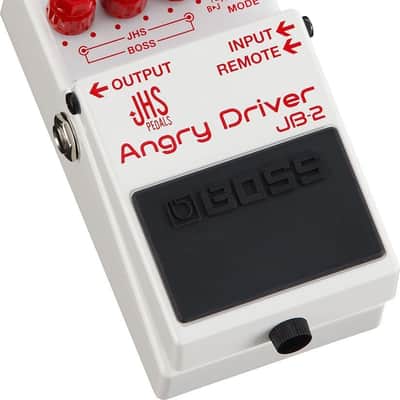

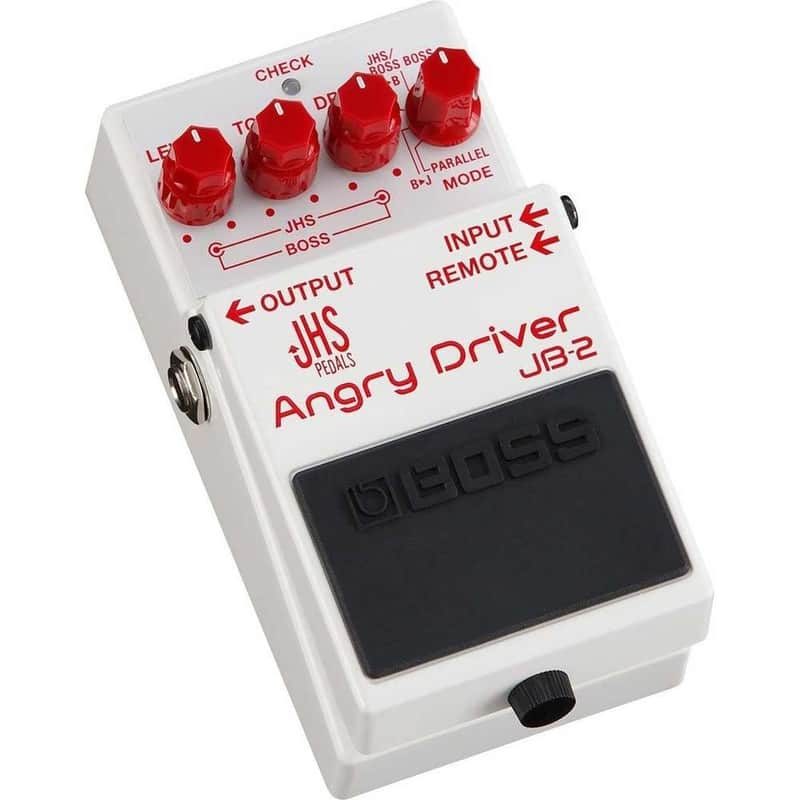

Boss JB-2 Angry Driver Overdrive Pedal

To celebrate the 40th anniversary of BOSS compact pedals, BOSS and JHS Pedals came together in a historic creative collaboration between the two industry leaders. Housed in the classic BOSS compact design, the JB-2 Angry Driver pairs the tones of the iconic BOSS BD-2 Blues Driver with JHS Pedals’ popular Angry Charlie. Working closely together, the two pedal innovators have developed an all-new combined circuit with refined sound and performance perfectly tuned for dual-mode drive operation.

Description

The JB-2 Angry Driver features three dual-concentric knobs that provide independent drive, tone, and level control for each overdrive type. Via a six-position mode selector, you can use each overdrive independently, or combine them together in series and parallel configurations. With the ability to blend the Blues Driver’s famously expressive low-to-mid gain tones with the Angry Charlie’s aggressive rock voice in any combination, the JB-2 Angry Driver delivers unmatched range and versatility from a single overdrive pedal.

Features

• All-new overdrive pedal with massive tonal range, jointly developed by BOSS and JHS Pedals
• Combines the voices of the BD-2 Blues Driver from BOSS and Angry Charlie from JHS Pedals
• Three dual-concentric knobs provide independent drive, tone, and level control for each overdrive type
• Mode selector for choosing individual overdrive types, two series connections for stacking, or parallel connection for unique new sounds
• Also includes a mode for toggling between BOSS and JHS overdrives with the built-in pedal switch
• Remote switch jack for controlling pedal modes and bypass from an optional footswitch or effects switching system
• Multi-color LED indicator shows BOSS mode (blue), JHS mode (red), and both together (purple)
• BOSS five-year warranty

Specs

Nominal Input Level:  -20 dBu

Input Impedance:  1 M ohm

Nominal Output Level:  -20 dBu

Output Impedance:  1 k ohm

Recommended Load Impedance:  10 k ohms or greater

Bypass

Buffered bypass

Controls:  Pedal switch
MODE knob, DRIVE knob, TONE knob, LEVEL knob

Indicator:  CHECK indicator (Serves also as battery check indicator)

Connectors: INPUT jack, OUTPUT jack, REMOTE jack, AC adaptor jack (DC 9 V)

Power Supply:  Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (sold separately)

Current Draw:  55 mA

Expected battery life under continuous use:  Alkaline: Approx. 7 hours
Carbon: Approx. 2.5 hours
*These figures will vary depending on the actual conditions of use.

Accessories

Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)Options (sold separately)AC adaptor: PSA series
Foot switch: FS-5L, FS-6, FS-7

SIZE AND WEIGHT

• Width:  73 mm/2-7/8 inches
• Depth:  129 mm/5-1/8 inches
• Height:  59 mm/2-3/8 inches
• Weight (including battery):  445 g/1 lb

* 0 dBu = 0.775 Vrms

* The specifications are subject to change without notice.
