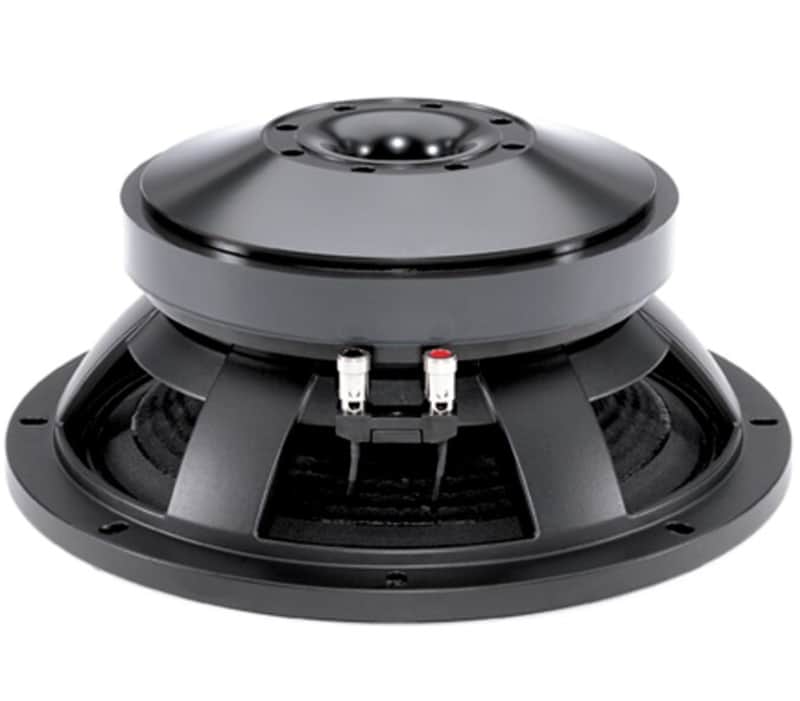

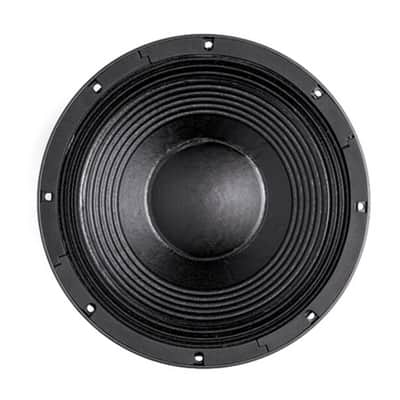

B&C 12TBX100 12" Hi-Performance Subwoofer 2000 Watts 8-Ohm Bass Woofer Speaker.

B&C 12TBX100 - 12" HIGH POWER WOOFER 2000 Watts Subwoofer 8-ohms

• THE B&C 12TBX100 IS A 12" SUBWOOFER THAT HANDLES A MASSIVE 1,000 WATTS AES STANDARD & 2,000 WATTS PROGRAM
• EXTENDED XMAX OF 9.0MM FOR A VERY CLEAN BASS SOUND
• THE B&C 12TBX100 SPEAKER IS OPTIMIZED FOR ALL HIGH POWER SUBWOOFER SPEAKER SYSTEMS IN SOUND REINFORCEMENT SYSTEMS, CONCERT, THEATER, ETC.

SPECIFICATIONS

Nominal Basket Diameter

• 12" / 320mm

Impedance

• 8 ohms

RMS Power Rating

• 1,000 Watts

Program Power

• 2,000 Watts

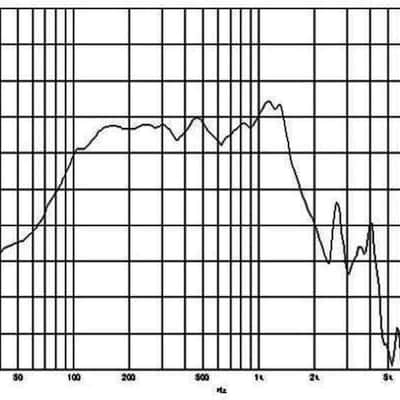

Frequency Response

• 45Hz - 1.5kHz

Sensitivity (1W/1m)

• 95dB

Voice Coil Diameter

• 4" / 100mm

Winding Material

• Copper

Former Material

• Fiber Glass

Winding Depth

• 1.0" / 25mm

Magnetic Gap Depth

• .5" / 12mm

Flux Density

• 1.1T

MOUNTING INFORMATION

Overall Diameter

• 12.56" / 319mm

Bolt Circle Diameter

• 11.77" / 299mm

Baffle Cutout Diameter

• 11.1" / 282mm

Depth

• 5.5" / 140mm

Flange & Gasket Thickness

• .625" / 16mm

No. Of Mounting Holes

• 8

Net Weight

• 22.4 lbs./ 10.2 kg.

THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

• 42 Hz

Impedance (Re)

• 5.1 ohms

Electrical Factor(Qes)

• .27

Mechanical Q (Qms)

• 6.9

Total Q (Qts)

• .26

Compliance Equiv. Vol. (Vas)

• 37.5 Liters/1.3cu. ft.

Voice Coil Overhang (Xmax)

• 9.0mm

Reference Efficiency

• 1.15%

BL Factor

• 25.5 T-M
