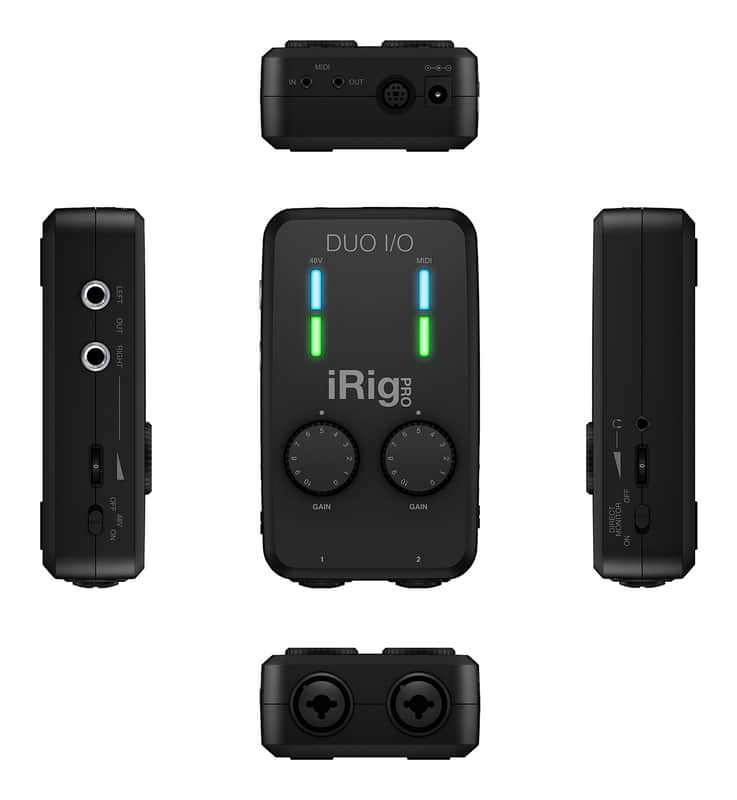

IRIG PRO Duo I/O

Whether you’re recording music, videos, podcasts or live-streams, sometimes you just have to get out of the studio. Whether you’re on location or on vacation, iRig Pro Duo I/O packs everything you need to capture high-quality music and audio into an ultra-portable, easily packable box. Say hello to a full-featured studio in the palm of your hand.

• 2 XLR / ¼” combo guitar, mic & line inputs
• Class-A preamps with improved gain range and phantom power
• 2 balanced 1/4” outputs
• Headphone out with direct monitoring
• MIDI 2.5mm IN/OUT with breakout cables
• Improved ergonomic controls for maximum precision
• Runs off 2 AA batteries (included), bus power or optional PSU
• Rubberized finish and textured controls for reliable field use
• Includes Lightning, USB-C and USB-A cables
• Designed and made in Italy

iRig Pro Duo I/O has 2 Neutrik™ analog inputs to record microphones, guitar/bass, keyboards, synths, and more. New Class-A mic preamps with extended gain range and +48v phantom power ensure professional sound quality and ultra-low noise. And MIDI IN/OUT jacks with breakout cables turn iRig Pro Duo I/O into a full-fledged MIDI interface as well.



Ditch the hefty gear and plug iRig Pro Duo I/O right into your favorite mobile device. iRig Pro Duo I/O is compatible with iPhone, iPad, Android, and Mac/PC, with Lightning, USB-C and USB-A cables included for easy plug-in and play setup.

Specs iRig Pro Duo I/O Specifications Microphone Input

• Microphone Input: 2x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
• Microphone Input Level: from 6 mVpp to 1.4 Vpp
• Microphone Input Impedance: 3,2 kOhms
• Gain Range: 50 dB
• Phantom Power: +48V ± 4V
• Frequency Response: 20 Hz to 20 kHz (+-1.5dB)
• Input Noise: -103 dB(A), -97 dB RMS

Instrument Input

• Instrument Input: 2x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
• Instrument Input Level: from 30 mVpp to 6.9 Vpp
• Instrument Input Impedance: 1 MOhms
• Gain Range: 27 dB
• Frequency Response:
  • from 2 Hz to 21 kHz (-3dB) Gain @ min
  • from 5 Hz to 21 kHz (-3dB) Gain @ max
• Input Noise:
  • -104 dB(A) Gain @ min
  • -102 dB(A) Gain @ max

Line Output

• Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground
• Floating Balanced Outputs with automatic level compensation when working in unbalanced mode
• Maximum Output Level: +16 dBu into 600 Ohms balanced load
• Frequency Response: from 10 Hz to 21 kHz (-3dB)
• Output Dynamic Range: 106 dB(A)
• Output Impedance: 150 Ohms balanced

Common

• AD and DA Resolution: 24-bit
• Sampling Rate: 44.1 kHz and 48 kHz
• Power: USB bus power, battery power (2xAA - included), or DC power supply (9VDC, from 500mA up, positive outside - not included)
• Metering: Multicolor LED)
• Size: 75mm/2.95" x 127mm/5" x 37mm/1.46"
• Weight: 197.2g/6.96oz (batteries excluded)
• Battery Life:
  • Recording - Max load*: 3 hours, 30 minutes (NiMH rechargeable); 45 minutes (Alkaline)
  • Playback - Min load**: 10 hours (NiMH rechargeable); 3 hours (Alkaline)

*Max load condition: both inputs connected to two 1,5mA phantom powered loads, input gains set to maximum, outputs set to maximum.
**Min load condition is as follows: music playing, phantom power OFF.

Package includes

• iRig Pro Duo universal dual channel Audio-MIDI interface
• Lightning to Mini-DIN connection cable (60cm/23.62")
• USB-C to Mini-DIN connection cable (60cm/23.62")
• USB to Mini-DIN connection cable (60cm/23.62")
• 2x 2.5mm TRS male to MIDI female adapter (10cm/3.9")
• 2 x 1.5V AA Battery
