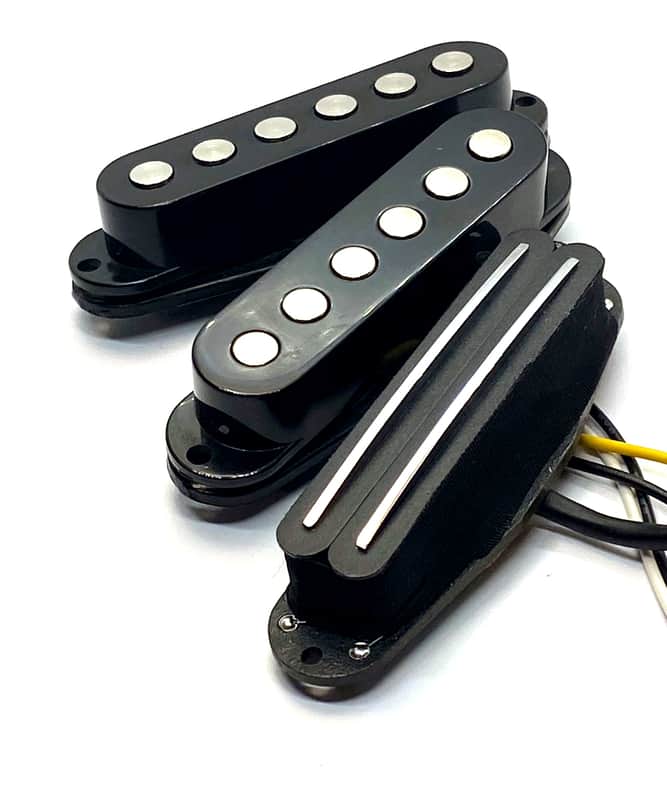

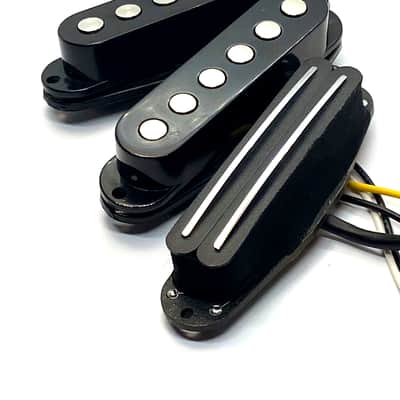

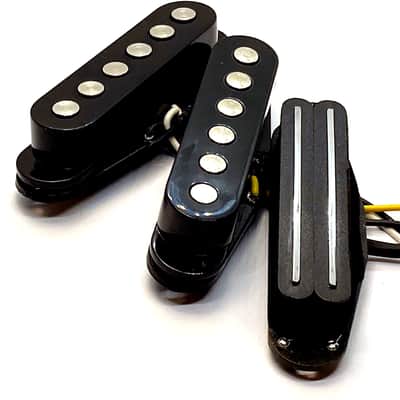

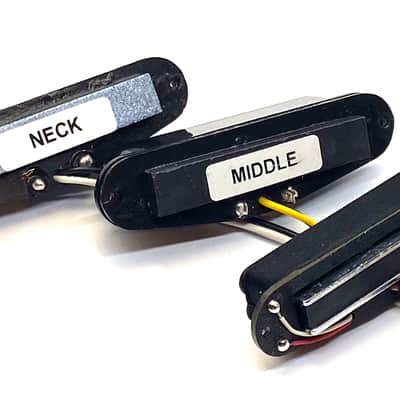

Dragonfire Phat Hot Duo Rails SSS Pickup Set ~ Duo Rails Bridge + Phat Strat Middle & Neck, BLACK

Dragonfire Phat Hot Duo Rails SSS Single Coil Passive Strat Pickup Set, BLACK
Bridge, Middle & Neck Pickup Set ~ Duo Rails Bridge + Phat Strat Middle & Neck
Hot Wound Dual Blade Rail Humbucking Bridge with Oversized “Phat” Pole Phat Strat Middle & Neck Pickups
~~Item Description~~
Now available as an SSS combo set deal! The hot wound humbucking Duo Rail Bridge complements the Phat Strat Single Middle & Neck pickups for a great blend of functionality, articulation and style. The Duo Rail is a humbucker in the size of a standard Strat single coil so you don’t have to carve up your body in order to get the humbucking features and versatility you want. The Middle & Neck Phat Strat Singles use oversized “phat” 6.5mm poles that allow for clearer articulation so you’ll be able to play with a great all-purpose sound.

The Bridge Duo Rail is 4-wire and wire color codes are provided with purchase for your convenience. The Middle and Neck are 2-wire pickups that come with a colored hot and black ground wire for easy installation The Middle position pickup is Reverse-Wound and Reverse-Polarity (RWRP) to ensure the best possible set execution and collaboration with the ability to give you hum-cancelling in Positions 2 & 4.

~~Product Highlights~~
*4 Wire Bridge Hot Duo Rail (Coil Split Capable)
*2 Wire Middle & Neck Phat Single Coils
*Middle Pickup is Reverse-Wound Reverse-Polarity (RWRP)
*Passive Strat Pickups
*Ceramic Magnet Style
*6 String Standard Guitar Compatible Pickups
*Wax Potted for Squeal Reduction or Elimination
*Bridge/Middle/Neck Position Use
*Dedicated Position Pickups

~~Approximate Measurements~~
*Bridge Hot Wound to ~12K
*Middle & Neck Wound to ~5.4K
*Pickup Length: 70mm (83mm including mounting flanges)
*Pickup Width: 18mm
*Pickup Depth: 23mm
*Mounting Screw Spacing: 76mm

~~What’s Included~~
*SSS Strat Pickup Set (1 Bridge Pickup + 1 Middle Pickup + 1 Neck Pickup)
*Pickup Mounting Screws & Springs
*Basic Color Codes for Wire Identification

~~Purchase Notes~~
Buyers assume all risk of use; sales are only offered to those competent to safely and lawfully purchase and use items.

Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, etc. prior to purchase.

Due to the vast and varied nature of possible set-ups, we do not provide specific information, instructions or diagrams for installation. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice. Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations. Take your time for installation; do not use power tools and do not over-tighten or apply too much pressure on components.
