Akai MPC4000 ADAT +Analog 8x out IB-48P compatible output card

8 channels, ADAT + Analog outputs Akai IB-48P compatible card, for MPC4000, Z8, Z4 samplers.

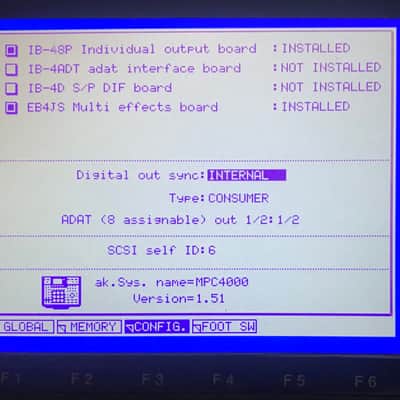

***Note*** This is NOT an IB-4ADT clone card. This is a custom card which adds digital 8 channel ADAT output to IB-48P. On a MPC4000, it is still recognized as IB-48P (as shown in one picture). The ADAT port on this card is Output. The ADAT output mirrors the same 8x analog outputs stream.
I have been providing compatible cards for Roland MV-8000/8800 since 2019. I started making output cards for MPC4000/Z8/Z4 and now adding ADAT out capability to IB-48P card.
Some info about this card: - 70% factory assembled. The rest hand-build and tested by me
- DACs are PCM5100A. Latest 32 bit capable DACs from TI/Burr-Brown
- Output path are DC coupled, eliminating output capacitors (less components in the audio path, so less color at the output) - ADAT can be either 44.1 or 48kHz. On your MPC4000/Z8/Z4 you need to set the clock to 44.1kHz or 48kHz - ADAT clock is Master on this card. So your ADAT receiver has to be to the clock slave and choose to receive ADAT clock at 44.1kHz or 48kHz
If you're new to ADAT and unsure about how to set things up, please google and familiarize yourself with this topic, and ask questions before purchase.

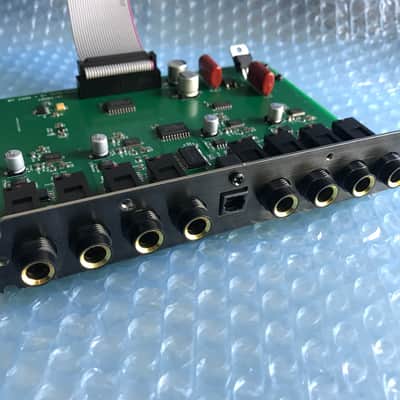

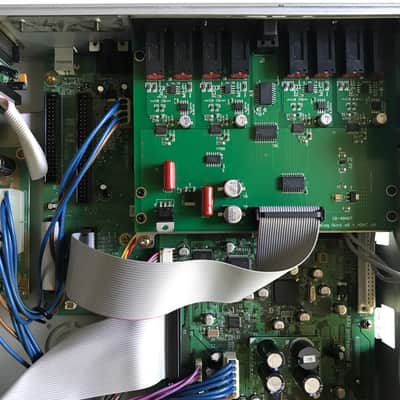

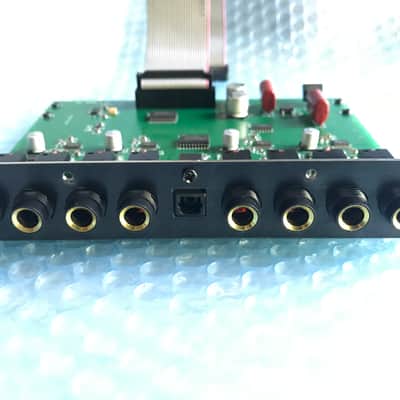

Installation is simple. One ribbon cable to connect. The ribbon cable only goes in one way. Comes with the ribbon cable as shown. Mounting screws are included. One photo shows this card mounted inside a Z4. Another photo shows the card is identified by a MPC4000 as IB-48P.


Shipping worldwide.

$28 postal airmail with tracking to USA, UK, Europe, Australia, Canada, Japan, Asia.


Please be advised that the card still requires manual assembly and soldering by me, as I don't have them 100% pre-made. I do this in my spare time, so I can only ship about 2 days after an order is placed. I also put each card through a burn-in process overnight, to ensure they will work reliably. Please be patient after payment is made, and allow me to assemble and fully test your purchase before shipping. Thank you.
