KLD GT5 hand wired SE 6L6 5w tube guitar amp kits

The cost of shipment to USA includes tariff. ( DDP term)

KLDguitar KLD-GT5 5 W Fender style amp class A SE hand wired amp.This guitar amplifier makes small-room sessions lots of fun! A high gain preamp circuit has been added to take the overdrive tone beyond that of the original. There is a choice of high or low gain inputs included. It is the only amp in its class that delivers true tonal range from instantaneous punch to deliciously creamy / crunchy overdrive with precise control of the output volume. This is good upgrade to DIY beginners who finished assembly Fender 5F1 before.

Features

 · 5 w(rms) 4,8 ohm

· 1x 12ax7, 6L6 (Not included)

 ·Two inputs: High , Low

· Three controls: Gain Tone Volume

·Standby

 ·Eyelet hand wired board(2 mm thick high quality FR4 board),soldered with high quality components .

·Pentode/Triode SW

 ·Speaker output jacks:4 , 8 ohm

 ·Precise parts used for lowest noise 5W metal oxide power resistors

·630 V voltage axial polypropylene film/foil and polyester military capacitors

 ·All hand wired boards of KLD guitar amp kits have been passed through strict test before they left our factory.

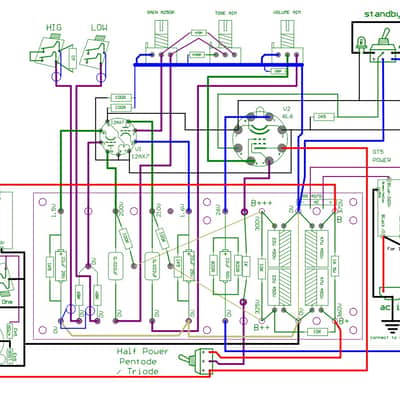

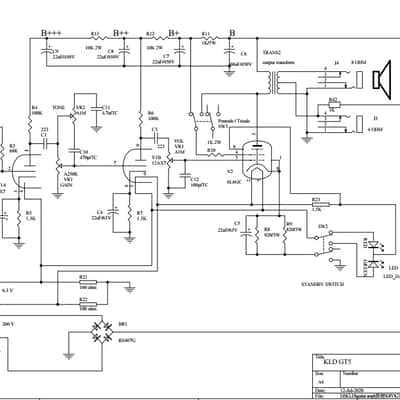

·Installation instructions included schematic, drawing of connection,installing photos. Help customers install amp easy.

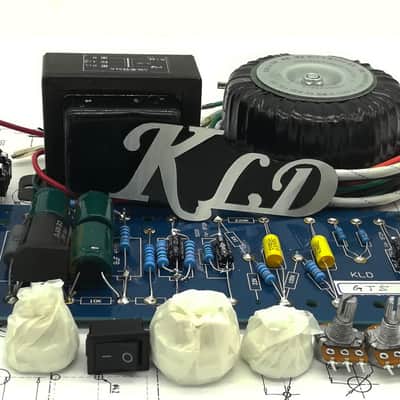

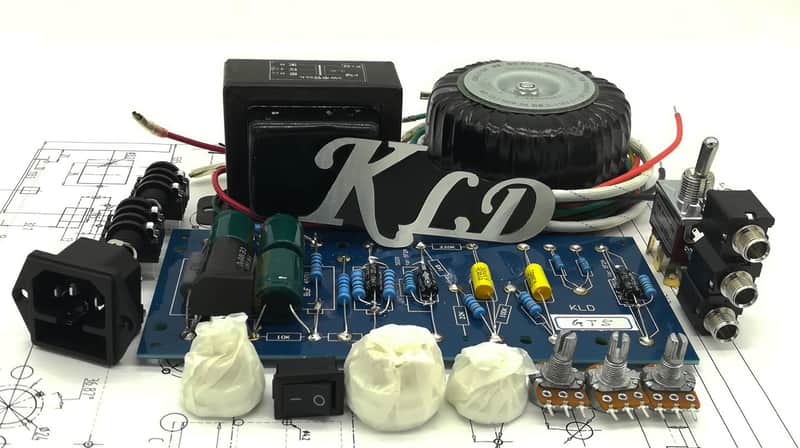

Amp kits includes : Power and output transformers, Eyelet board of GT5, total components of amp kits without soldered on board, Resistor, Capacitor , Sockets of tube, socket of input and output , Switch.

Pack: Carton.
Shippment: Express delivery service.
Delivery time: within seven days.
Tracking :17track

Before assembly amp , please confirm you can answer below questions:

(A) Where is fatal voltage in amp kits? How to protect you during assemble amp?

(B) How to use soldering gun? How to avoid cold solder joints and pseudo spots?

(C) How to read layout of amp ?

(D) How to use measurement device, such as a multimeter and how to get right readings?

After assembly GT5 amp kits successful. Please ask yourself these questions ,which will help you understand electronic tech more deeply:

(A) How to clean grounding dot of chassis and reduce hiss and hum of amp?

(B) Where should grounding dots of analog circuit place?

(C) How to process layout of the tube amp circuit right?

(D) How to assembly tube amp step by step?

Tech support
The assembly manual KLDguitar amp kits includes two parts: 1. general guideline of assembly amplifier kits and pictures figures, how to deal with Grounding, hum and squealing. 2. Assembly manual of amp kits . Please download them from our website : KLDguitar
 There are still fatal high voltage in tube amp even if power off . Before you start DIY amp journey, Please make sure:

KLD will not accept any returns on amplifier kits and/or parts that have been assembled, soldered or modified.
