A TRIBUTE TO THE SYRINX
Most of us will likely never see the fabled Syrinx in person. GYRINX VCF is not a clone - rather a painstakingly realized design informed by the known original topology of incomplete schematics, datasheets, and designs from other synths of the era using the CEM3350. Along with the 4 different input/filter signal path routings, the GYRINX VCF is the closest mere mortals will get to the esoteric Syrinx filter experience.
SUMMARY
GYRINX VCF has THREE audio filters arranged in a specific configuration: two 2-pole resonant PEAK (bandpass) filters and one 4-pole resonant LOWPASS. 2 CV inputs and a keyboard tracking CV ensures generous range of beautiful and strange formant frequencies you’ll not get with any other filter. The four audio inputs can be configured as a mixed sum, or as a split pair. Also, as with the original, the filter routing options include series and parallel paths. The entire audio signal path is all analog, however filter routing is digitally controlled by the momentary switch.
FEATURES
TWO Alfa AS3350 re-issue filter chips based on the CEM3350 design.
FOUR audio signal input jacks w/ individual attenuators.
Two selectable audio input Types: 1-4 Summed Audio, or 1-2 / 3-4 split audio pair
Two Resonant Peak Filters, does not self-oscillate
One Resonant Lowpass Filter, does not self-oscillate

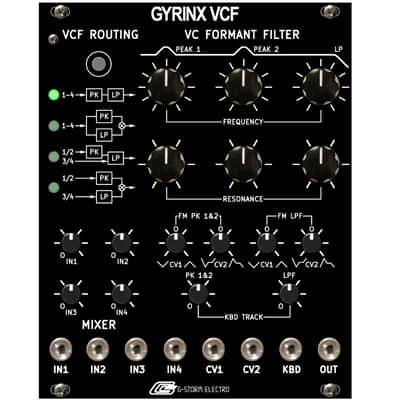

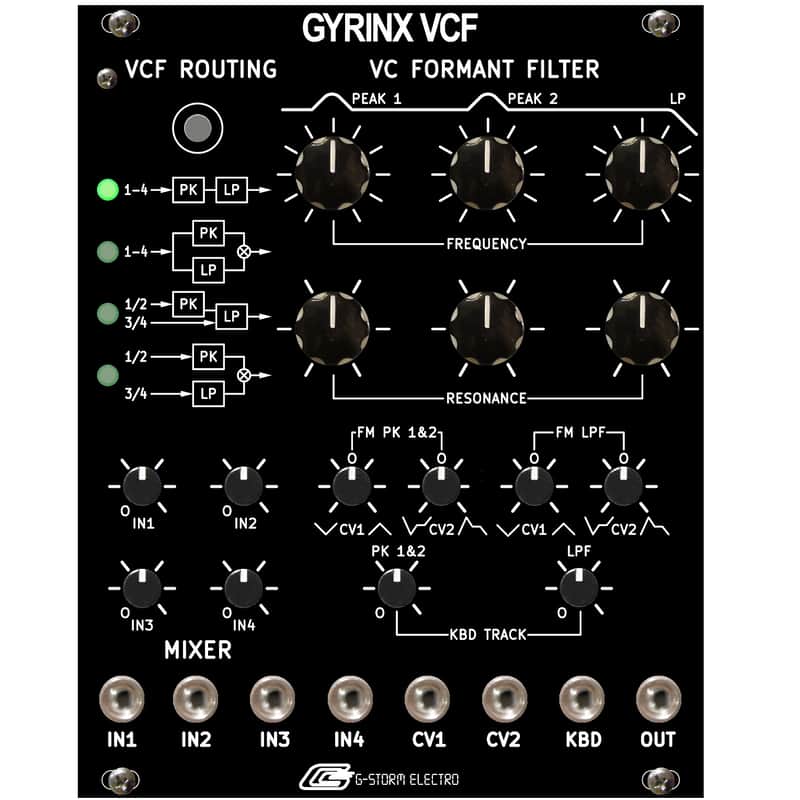

Two selectable filter configuration Types: SERIES Peak -> Lowpass, PARALLEL Peak || Lowpass
Digitally controlled routing of the all-analog audio path.
Two Control Voltage input jacks for Frequency CUTOFF w/ signal attenuators, routed to both filter types. These offer inverted and non-inverted control.
One Control Voltage (KB) input jack for Frequency TRACKING w/ signal attenuators, routed to both filter types. This one is non-inverted only, and can be used with other mod signals, LFOs, envelopes, gate, or anything else!
INCLUDED | a 10-pin to 16-pin Eurorack ribbon connector.
NOT INCLUDED | M2.5 or M3 (Doepfer standard) Phillips-head basic zinc rack screws are only provided on special request. Why do I do this? To cut down on rack screws that are wasted in the universe. What's it gotta be? Thousands? Hundreds of thousands? Unused, unwanted. You know the ones I mean | wrong size, wrong color, cheap junk tin, top slot-stripping, rack-rashers, wrong thread count, wrong length, wrong political party, etc. I use thumb screws in 2 sizes myself. So yeah, if you request some M3's from me, I will probably pull the ones from other companies boxes in my closet. You're welcome :D
GYRINX VCF pairs well with:
Specifications:
“LOVE the Gyrinx filter! What a beautiful module.”- Doug B.
“It shreds!” - Brian L.
“Love it!!!!!!!!” – Omar T.
“Hey man this filter is Amazing! Having so much fun Thanks again!” –Andrew
