CTS 450G Series - 500K Long Split Shaft Audio Taper - Pro Guitar & Bass Pots

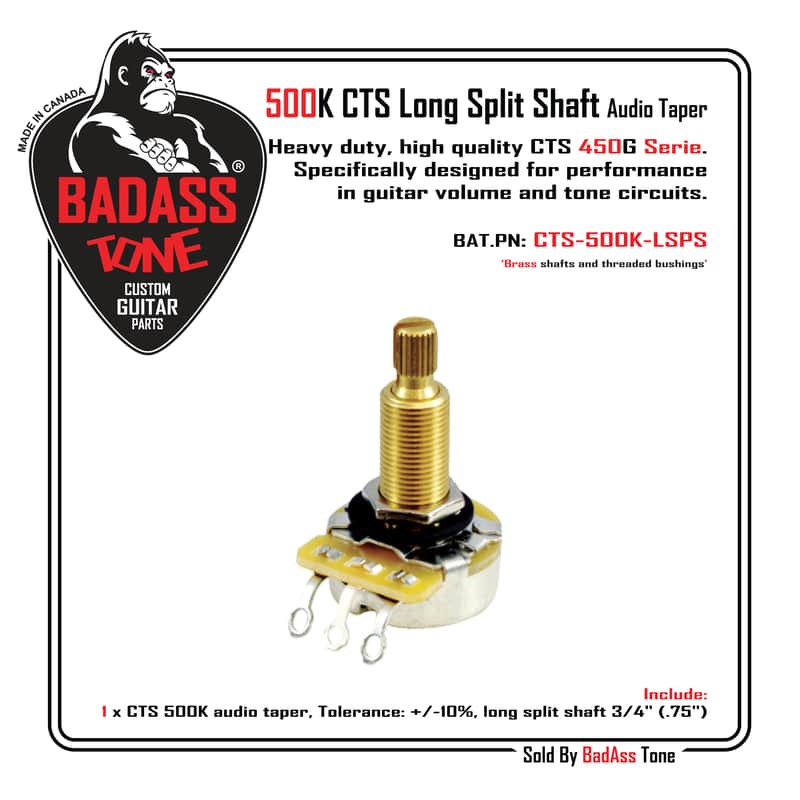

CTS 500K Long Shaft Audio Taper - Professional Guitar Pots - (3/4) Brass Shaft - Brass Bushing - USA (fine spline).

‘Premium Components - Next business Day Shipping’

CTS 450G Serie is specifically designed for top performance in guitar volume and tone circuits. CTS Audio taper with BRASS SHAFT and BRASS BUSHING are the highest-grade pots available from CTS.

Features:

• 1 CTS 500K Long Split Shaft Audio Taper
• Resistance Values: 500K Ohms - Taper: Audio
• Resistance Tolerance: +/-10%
• Pot Diameter: 15/16" (.9375") - Body Depth: 0.45 in.
• Shaft Rotation: 300°
• Shaft Material: Brass - Threaded Shaft Length: 3/4" (.75")
• Shaft Type: Split Knurled - Threaded Shaft Material: Brass
• Spline Count (Type): 24 (Fine) - Threaded Shaft Diameter: 3/8" (.375")
• Spline Height: 3/8" (.375") - Thread Pitch: 3/8-32NEF

Low Noise, Robust Construction, Proprietary Anti-Static Lube, Brass Shaft, Brass Bushing, Smooth Feel, Various Shaft Trims, Wide Selection of Tapers, Reduced Shaft Wobble, Solderable Cover, Superior and Long-Life Durability.

Fine spline (USA) shaft used in most American guitars. Includes friction washer, top washer & mounting nut.

So be sure to check before ordering.Be sure to check whether your guitar uses (3/8") or long (3/4") shaft pots. In general, 3/8" shaft pots will fit most Gibson guitars made in the U.S. after 1977, with the exception of historical reissues, so be sure to check before ordering.

Note: In order to reduce shipping costs for our customers. We combine orders, contact us to get the best shipping price. We will send you a real estimate of the shipping cost

Shipping:

• Canada (1 to 5 business days)
• USA (3 to 10 business days)
• EUROPE (5 to 20 business days)

Thanks for visiting BadAss Tone.  Any questions feel free to contact us.
