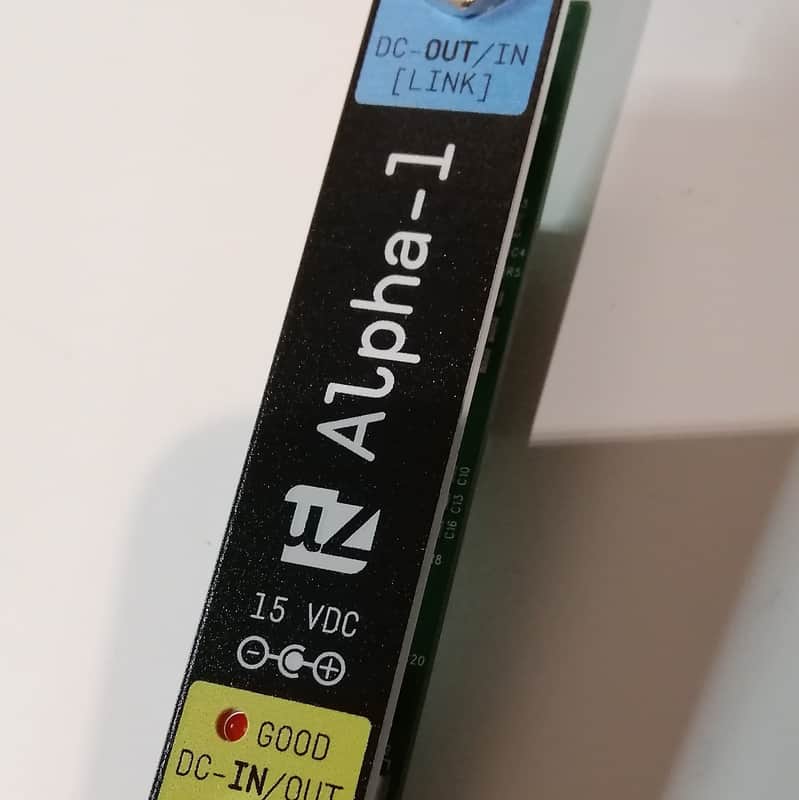

Alpha-1 - Eurorack Power Supply Module
It is a very compact, high-efficiency power supply module for Eurorack. It is based on state-of-the-art electronics providing high power in constrained space.
With its very wide input range, it can be driven from a multitude of external sources.
The GOOD indicator LED turns on to show that all of the three voltage rails are operating correctly. If any of the rails misbehaves, the GOOD LED turns off.
Technical specifications:
Input voltage: 12.5V up to 42V
Output voltages: +12V / -12V / 5V
Output currents: 1.5A / 1.5A / 0.5A respectively
Width: 4 HP (20.0mm)
Connector diameter: 2.50mm internal, 5.50mm external
Connector polarity: center positive
It has ample power handling capacity for supplying an entire row of Eurorack modules (or even more!)
Top and bottom DC jacks allow for chaining the external DC power (nominal 15V recommended) between rows in a multi-row (6U, 9U and upwards) Eurorack system.
Note: The DC jacks are simple connected in series, therefore if one of the DC jacks is connected to an external DC adaptor (typically the bottom DC jack as indicated with the IN legend in yellow background), the other one shall be connected to a load only (typically the bottom DC jack as indicated with the OUT legend in blue background).
