Perfect as a mid-bass or woofer replacement, this driver from Eminence delivers high-power bass and has a frequency range of 40Hz-4kHz.

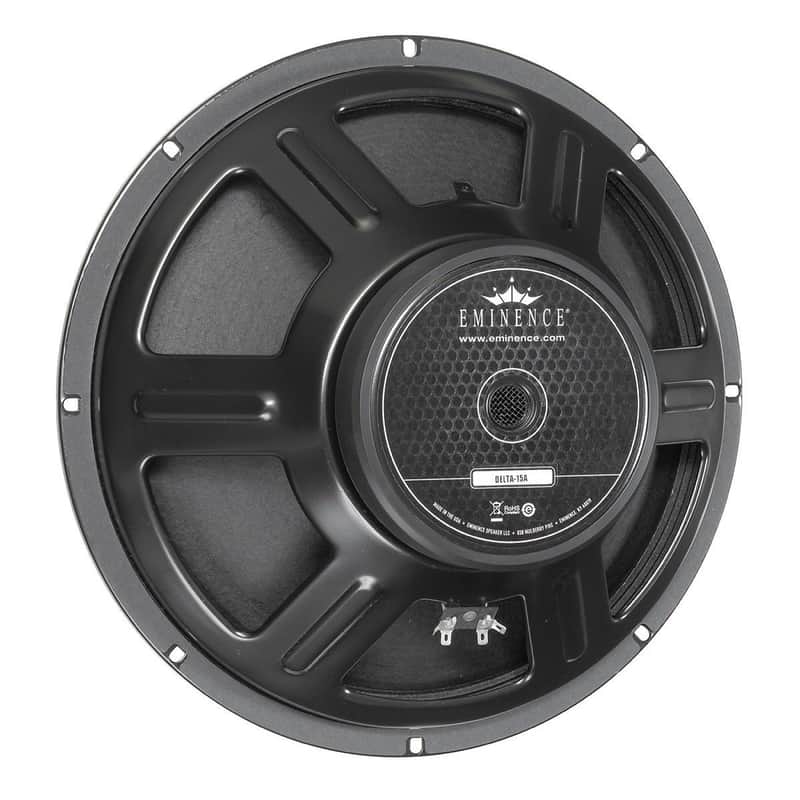

Eminence Delta 15 15 Inch Speaker
This 15 in. speaker from the Delta Series excels in all high-power bass applications, including bass guitar.

Features
- Kapton coil former
- Ferrite magnet
- Pressed steel basket
- Polyamide-imide coated aluminum voice coil
- Paper cone/cloth cone edge
- Solid composition paper dust cap
- Nominal Basket Diameter: 15 in., 381mm
- Impedance: 8 or 16 ohm
- Power Rating: 400W rms
- Music Program: 800W
- Resonance: 40Hz
- Usable Frequency Range: 40Hz - 4kHz
- Average Sensitivity: 1W @ 1m 101 dB
- Magnet Weight: 56oz.
- Gap Height: 0.375 in., 9.52mm
- Voice Coil Diameter: 2.5 in., 63.5mm

Mounting Information
- Overall Diameter: 15.15 in., 384.8mm
- Baffle Hole Diameter: 13.77 in., 349.6mm
- Front Sealing Gasket: fitted as standard
- Rear Sealing Gasket: fitted as standard
- Mounting Holes Diameter: 0.25 in., 6.4mm
- Mounting Hole B.C.D.: 14.56 in., 369.9mm
- Depth: 6.05 in., 153.6mm

Thiele-Small Parameters
- Resonant Frequency: 40Hz
- Impedance (RE): 6.9 ohm
Coil Inductance (Le): 0.86mH
- Electromagnetic Q (Qes): 0.54
- Mechanical Q (Qms): 6.56
- Total Q (Qts): 0.49
- Compliance Equivalent Volume (Vas): 293 liters/10.4 cu.ft
- Peak Diaphragm Displacement Volume (Vd): 231cc
- Mechanical Compliance of suspension (Cms): 0.28mm/N
- BL Product (BL): 13.6 T-M
- Diaphragm Mass inc. Airload (Mms): 55 grams
- Equiv. Resistance of mechanical suspension loss (Rms): 2.12N*sec/M
- Voice Coil Overhang (Xmax): 2.7mm
- Surface Area of Cone (Sd): 856.3cm2
- Impedance at Resonance (Zmax): 52 ohm
