Discover a basement to your low end sound that you never knew existed, perfect for lead/bass guitar, keyboards, bumpin' club setups, and monitors.

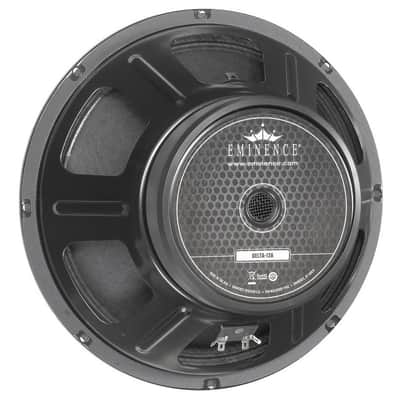

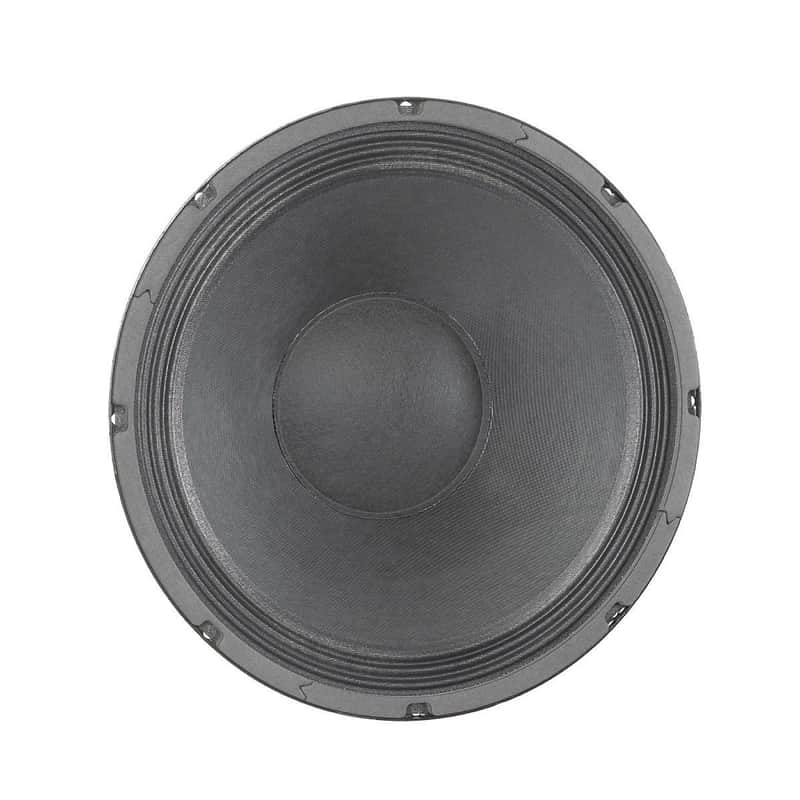

Eminence Delta 12 12 Inch Speaker
This 12" Delta Series speaker is ideal for sound reinforcement systems. It is also suitable for lead and bass guitar, keyboards, guitar combos, club music systems, and stage monitors.

Features
- Kapton coil former
- Ferrite magnet
- Pressed steel basket
- Polyamide-imide coated aluminum voice coil
- Paper cone/cloth cone edge
- Solid composition felt dust cap

- Nominal Basket Diameter: 12 in., 304.8mm
- Impedance: 8 or 16 ohm
- Power Rating: 400W rms
- Music Program: 800W
- Resonance: 55Hz
- Usable Frequency Range: 55Hz to 5Khz
- Average Sensitivity: 1W @ 1m 100 dB
- Magnet Weight: 56oz.
- Gap Height: 0.375 in., 9.52mm
- Voice Coil Diameter: 2.5 in., 63.5mm

Mounting Information
- Overall Diameter: 12.02 in., 305.2mm
- Baffle Hole Diameter: 10.97 in., 278.6mm
- Front Sealing Gasket fitted as standard
- Rear Sealing Gasket fitted as standard
- Mounting Holes Diameter: 0.25 in., 6.4mm
- Mounting Hole B.C.D.: 11.59 in., 294.3mm
- Depth: 5.35 in., 136mm
- Net Weight: 11.4 lbs., 5.2 kg
- Shipping Weight: 13.5 lbs., 6.1 kg

Thiele-Small Parameters
- Resonant Frequency: 55Hz
- Impedance (RE): 6.3 ohm
- Coil Inductance (Le): 0.74mH
- Electromagnetic Q (Qes): 0.46
- Mechanical Q (Qms): 5.27
- Total Q (Qts): 0.43
- Compliance Equivalent Volume (Vas): 81.3 liters/2.87 cu.ft
- Peak Diaphragm Displacement Volume (Vd): 82cc
- Mechanical Compliance of suspension (Cms): 0.21mm/N
- BL Product (BL): 13.5 T-M
- Diaphragm Mass inc. Airload (Mms): 39 grams
- Equiv. Resistance of mechanical suspension loss (Rms): 2.55N*sec/M
- Efficiency Bandwidth Product (EBP): 119
- Voice Coil Overhang (Xmax): 1.6mm
- Surface Area of Cone (Sd): 519.5cm2
- Impedance at Resonance (Zmax): 78 ohm
