Ideal as a midrange driver in three-way PA systems, the 6.5-inch Beta-6A speaker sports a 30-ounce magnet for superior power handling and accurate response.

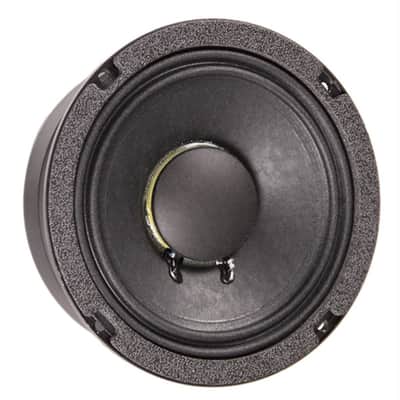

Eminence BETA-6A PA Speaker
The Eminence Beta-6A is a high power 6.5" Mid/Bass driver for use in concert sound systems or in high-powered automobile sound as a mid/bass or a midrange driver. This driver also works well in small sealed or vented enclosures and in infinite baffles. The Beta-6A features a 2" voice coil and a relatively large 30 ounce magnet that allows the 6A to handle up to 350-watts music program and accurately reproduce frequencies from 84Hz to 4kHz. 8 ohms.

- Nominal Basket Diameter: 6.5" / 165.1 mm
- Impedance: 8 Ohms
- RMS Power Rating: 175 Watts
- Program Power Handling: 350 Watts
- Frequency Response: 84Hz - 4.0kHz
- Sensitivity (1W/1m): 94dB
- Voice Coil Diameter: 2" / 50.8 mm
- Max. Crossover Frequency: 4.0 kHz
- Overall Diameter: 6.59" /167.39 mm
- Bolt Circle Diameter: 6.06" / 153.9 mm
- Baffle Cutout Diameter: 5.69" / 181 mm
- No. Of Mounting Holes: 4
- Mounting Hole Diameter: 0.23" / 5.84 mm
- Overall Depth: 2.66" / 67.56 mm
- Magnet Weight: 30 oz.
- Net Weight: 5.6 lbs. / 2.54 kg.
- Shipping Weight: 6.3 lbs. /2.86kg.
- Resonant Frequency (fs): 122.6 Hz
- Impedance (Re): 5.18 ohms
- Coil Inductance (Le): 0.43mH
- Electromagnetic Q (Qes): .66
- Mechanical Q (Qms): 3.46
- Total Q (Qts): .56
- Compliance Equivalent Vol. (Vas): 3.51 Liters/.12cu. ft.
- Voice Coil Overhang (Xmax): 4.5mm
- BL Factor (BL): 8.13 T-M
- Surface area of Cone (Sd): .01299m2
