Replace blown tweeters in your PA speakers with the Eminence ASD-1001. This 1" compression driver delivers clear, accurate highs from 2.5 kHz to 20 kHz.

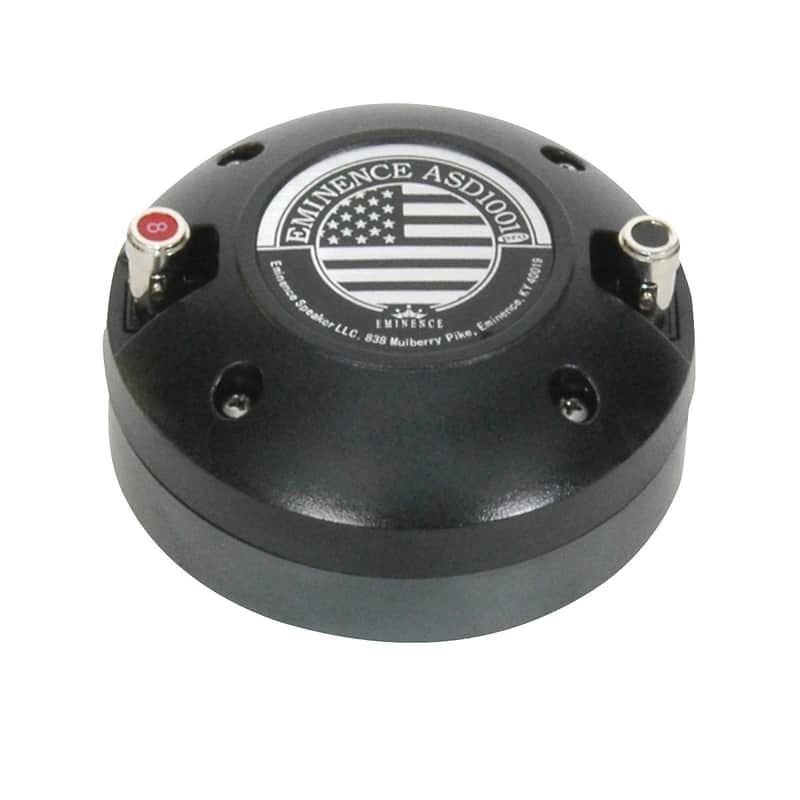

Eminence ASD-1001 High Frequency Speaker
The Eminence ASD1001 high-frequency driver is a very accurate and extremely clear sounding compression driver designed as a high-quality driver replacement for 1" screw-on type horns. With 50-watts of power rating, diamond titanium diaphragm, and an operating frequency range of 2.5kHz to 20kHz, the ASD1001 is a great choice for a wide range of front of house mains and monitor speaker cabinets, hi packs, both active and passive.

- Throat Size: 1", 25.4 mm
- Nominal Impedance*: 8 ohms
- Power Rating**: 50W @ 2.5kHz
- Free Air Resonace: 1.23kHz
- Usable Frequency Range: 2.5Hz-20kHz
- Sensitivity: 104.3dB (1W/1m across 2.5kHz-20kHz)
- Magnet Weight: 12oz, 0.34kg
- Voice Coil Diameter: 1.3" / 33 mm
- THIELE & SMALL PARAMETERS
- DC Resistance (Re): 6.7
- Coil Inductance (Le): 1.1mH
- MOUNTING INFO
- Overall Diameter: 3.5", 88.9 mm
- Mounting Holes Diameter: ~
- Mounting Holes B.C.D.: ~
- Mounting Thread: 1 3/8" 18 NEF ext.
- Depth: 2.45", 62mm
- Weight: 2 lbs, 0.9 kg
- MATERIALS OF CONSTRUCTION
- Diaphragm Material: Diamond Titanium
- Magnet Composition: Ferrite

zZounds is an authorized dealer of Eminence products.

This item is sold As-Described

This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.learn more
Brand
Model
  • ASD1001S High-Frequency Driver - 8 Ohm
