Rugged and reliable, the Legend B-810 Bass speaker can be connected in parallel with 4 or 8 other Legend B-810's to get an 8 or 4 ohm load respectively.

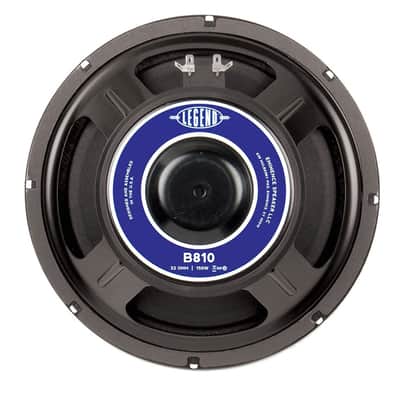

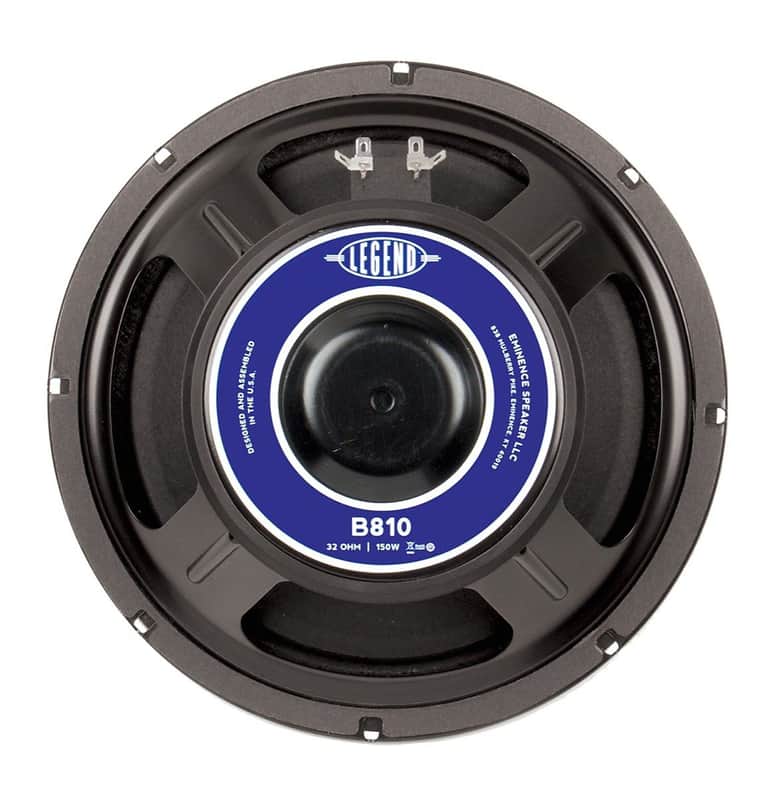

Eminence Legend B-810 Bass Speaker
Eminence Legend B810 is a 32 ohm, 10-inch stamped frame bass guitar driver with a true classic design. It's modern features include an M-roll surround for higher excursion and less cone breakage, a double dipped cone apex for a really strong cone neck, and a bumped back plate for greater incursion before damage.

Use the Legend B810 four at a time, connected in parallel, to get an 8 ohm load. Use them 8 at a time, connected all in parallel, to get a 4 ohm load.

Nominal Impedance:
- 32 ohms

Power Rating:
- RMS: 150 Watts
- Peak: 400 Watts

- Resonance: 52Hz
- Usable Frequency Range: 49Hz-5.1kHz
- Sensitivity: 92.7
- Magnet Weight: 30 oz
- Gap Height: 0.312 inch, 7.94mm
- Voice Coil Diameter: 2 inches, 50.8mm
- Overall Diameter: 10.11 inches (256.8mm)
- Depth: 4.08 inches (103.6mm)
- Weight: 6.7 lbs (3.04 kg)

Construction Materials:
- Coil Construction: Copper voice coil
- Coil Former: Kapton
- Magnet Composition: Ferrite magnet
- Core Details: Bumped
- Basket Materials: Pressed steel basket
- Cone Composition: Paper Cone
- Cone Edge Composition: Cloth cone edge
- Dustcap Composition: Zurette dust cap

zZounds is an authorized dealer of Eminence products.
