WMS40-MINI-25A

Description

• For Vocal and Speech Applications
• SR40 Mini Single Wireless Receiver
• HT40 Mini Wireless Handheld Transmitter
• Single Fixed Frequency
• Balanced 1/4" Jack Output
• Runs 30 Hours on a Single AA Battery
• Includes a Universal Power Supply

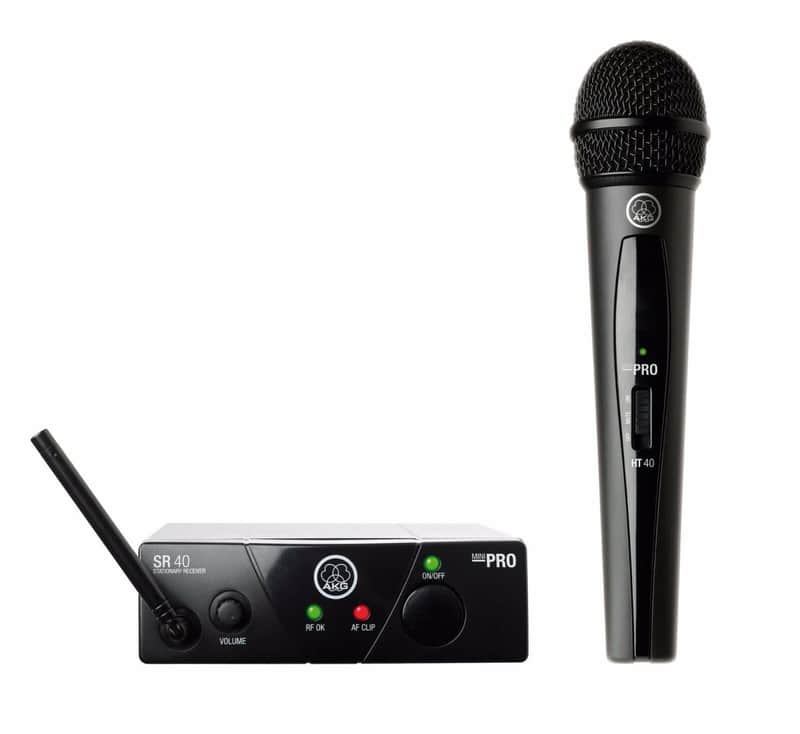

The band A WMS40 Mini Single Vocal Set Wireless Microphone System from AKG features a single-channel SR40 Mini receiver and an HT40 Mini handheld transmitter, and is a true plug and play wireless solution. It provides clear audio sound and can be used to capture audio in several environments for applications such as live stage, rehearsals, conferences, and more.

The included HT40 handheld transmitter features a dynamic cardioid capsule for maximum gain before feedback. The SR40 receiver has a balanced 1/4" output connector, which connects to your mixer or amplifier. The WMS40 is a fixed frequency system and has an extremely long battery life of 30 hours on a single AA battery, and saves money in day-to-day operation. A universal power supply is also included.

In the Box

• AKG WMS40 Mini Single Vocal Set Wireless Microphone System (Band: A)
• SR40 Mini Wireless Receiver
• HT40 Mini Handheld Transmitter
• Universal Power Supply with US Adapter
• Limited 2-Year Warranty

Not in the Box

• essential-tag
• Batteries & Power (Not Included)

Specifications

Transmitter

• Frequency Bandwidth: Band A
• Audio Frequency Response: 40 to 20 kHz
• Signal to Noise: 110 dBA
• Total Harmonic Distortion: (THD) 0.8 % @ 1 kHz
• Operating Temperature Range: 14 to 131°F (-10 to 55°C)
• Peak Deviation: 45 kHz
• Nominal Deviation: 15 kHz
• Radio Output Power: 10 mW
• Transmitter Synchronization: Manual
• Interchangeable Mic Heads: No
• Channels: 3
• Number of Selectable Frequencies: 1 fixed frequency
• Range: 66' (20 m)
• Modulation: FM
• Pilot Tone: No
• Encryption: No
• Battery: 1 x LR6 AA alkaline
• Operating Time: 30 hours
• Material of Construction Plastic
• Dimensionsz: (H x W)9.1 x 2.0" (230 x 51 mm)
• Weight: 6.9 oz (195 g)

Receiver

• Frequency Bandwidth: Band A
• Audio Frequency Response: 40 to 20 kHz
• Signal to Noise: 110 dBA
• Total Harmonic Distortion: 0.8% @ 1 kHz
• Operating Temperature Range: 14 to 131°F (-10 to 55°C)
• Radio Sensitivity: -100 dBm
• Channels: 3
• Number of Selectable Frequencies: 1 fixed frequency
• Frequency Selection: Fixed
• Range: 66' (20 m)
• Modulation: FM
• Encryption: No
• Pilot Tone: No
• Transmitter Synchronization: Not necessary
• HiQnet Compatible: No
• Rack Compatibility: 1/3 rack size (19")
• Rack height: 1 RU
• Antenna: 1 x fixed external antenna
• Audio Output: 1 x balanced TRS 1/4" (6.3 mm) female jack
• Balanced audio output adjustable from mic to line level
• Output level at rated deviation: 500 mV rms
• Internal Power Supply: No
• Type: DC socket
• Voltage: 12 V
• Material of Construction: Metal
• Dimensions: (L x H x W)5.2 x 1.7 x 5.2" (132 x 43 x 133 mm)
• Package Weight: 2.65 lb
• Box Dimensions: (LxWxH)11.6 x 9.4 x 2.8"
