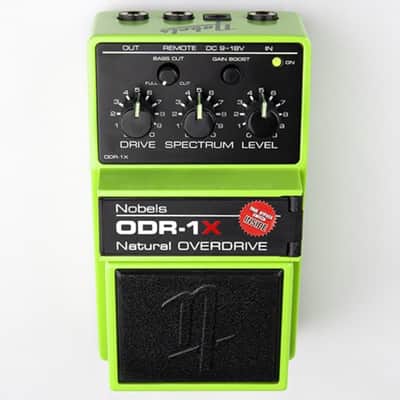

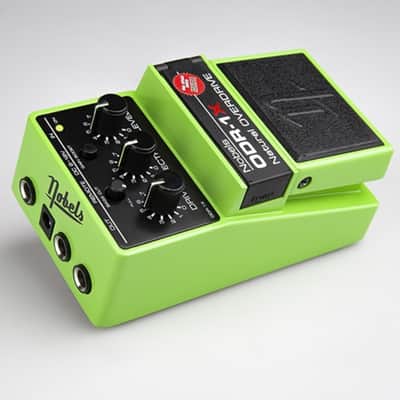

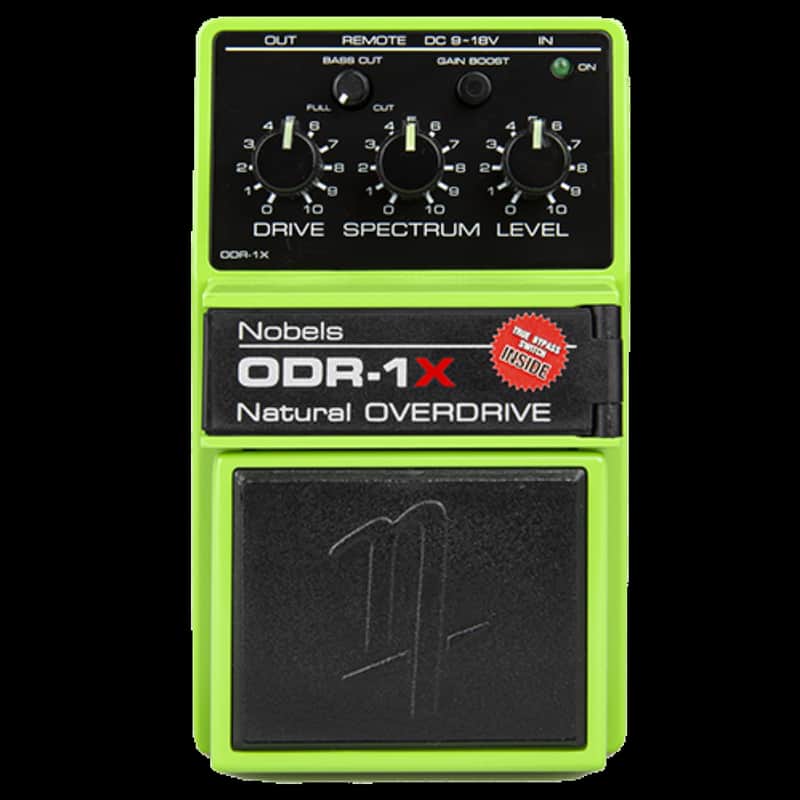

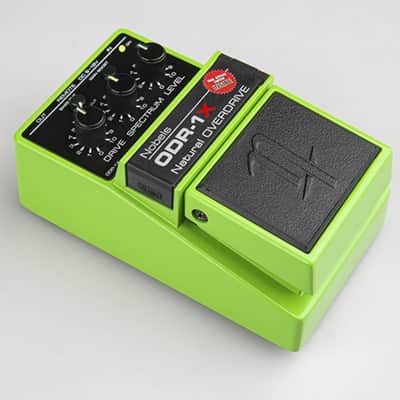

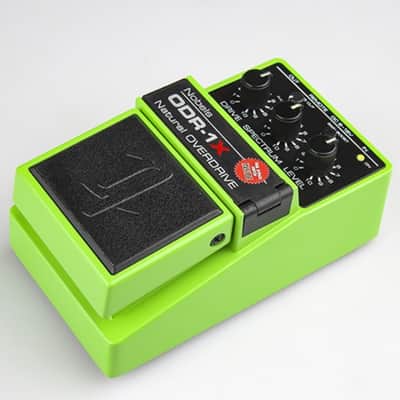

Nobels ODR-1X

The new Nobels ODR-1X is the next generation of this now legendary overdrive, heralding a new chapter in the Nobels overdrive legacy. Due to popular demand, a convenient external bass cut pot has been added, as well as the option to change between true bypass or buffered bypass. For hi-gain aficionados, a new switchable hi-gain boost is also now available. This is capable of transforming ODR-1X into a true hard rock monster. With the ability to control both the gain boost and on/off remotely, along with the unique SPECTRUM tone control, fold-out Mounty-P mounting plates and knobs with fluorescent ‘Glow in the Dark’ pointers, the ODR-1X adds worthwhile flexibility and utility to a time-tested favorite.

Adjustable Bass Cut

For extended ease of use, the internal Bass Cut feature originally included in the ODR-1BC is now available as an external variable control right on the face of the pedal. This allows for complete opti- misation of the pedal’s bass response on the fly, at the simple turn of a knob. The flexibility of this new additional control compliments Nobels’ unique and renowned SPECTRUM tone control, which alters the proportion of both the low-mid and high frequencies simultaneously. At midday, the frequencies remain almost untou- ched. However, moving from the minimum to maximum positions will deliver variations in frequency response that are suitable for a wealth of musical tastes and styles.

Under the hood...

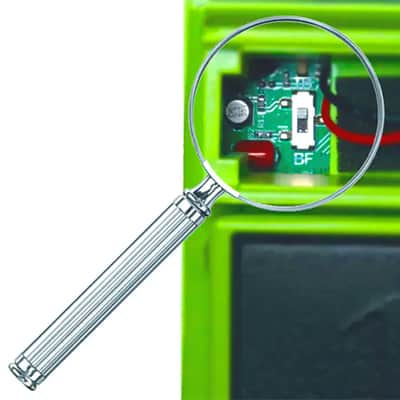

ODR-1X also now features the ability to switch between True Bypass and Buffered Bypass via a mini switch that is located within the top loading battery compartment. True Bypass gives the maxi- mum tonal purity. While players who are using longer cable runs, can switch to Buffered Bypass mode to preserve high frequencies.

Gain boost switch

This switch turns the ODR-1 X into a real monster with extra gain. It is suitable for powerful hard rock sounds or gives a solo the right assertiveness. This function can also be operated remotely!

Features

• New Variable Bass Cut knob to adjust the low end
• New Switch between True and Buffered Bypass
• New Gain Boost switch with remote control option
• Natural Analog Overdrive effect pedal
• Vintage ODR-1 Sound
• Spectrum: double filter tone control cuts/boosts bass and treble
• Glow-In-The-Dark Pointer Knobs
• Overhead battery compartment
• Remote connection for optional footswitch
• Includes 4x integrated Mounty-P Mounting Plates
• Powered by 9V battery or optional 9-18V power supply (not included)

Specs

• Power (DC): 9V battery (optional) or 9V~18V power supply
• Power connector: 2.1 mm, center negative
• Consumption: max. 15 mA
• Input impedance: approx. 1 MΩ
• Output impedance: approx. 2.2 kΩ
• Max. input level: +6 dB
• Controls: Drive, Spectrum, Level, Bass Cut
• Gain Boost: up to 29.5 dB
• Switches: ON/Off, Gain Boost, True/Buffered Bypass
• Jacks: DC, TS 1/4" Input & Output, Remote (TRS)
• LED Indicators: 1x green (On/Off), 1x red Gain Boost
• Mounty-P: 4x integrated fold-out mounting plates
